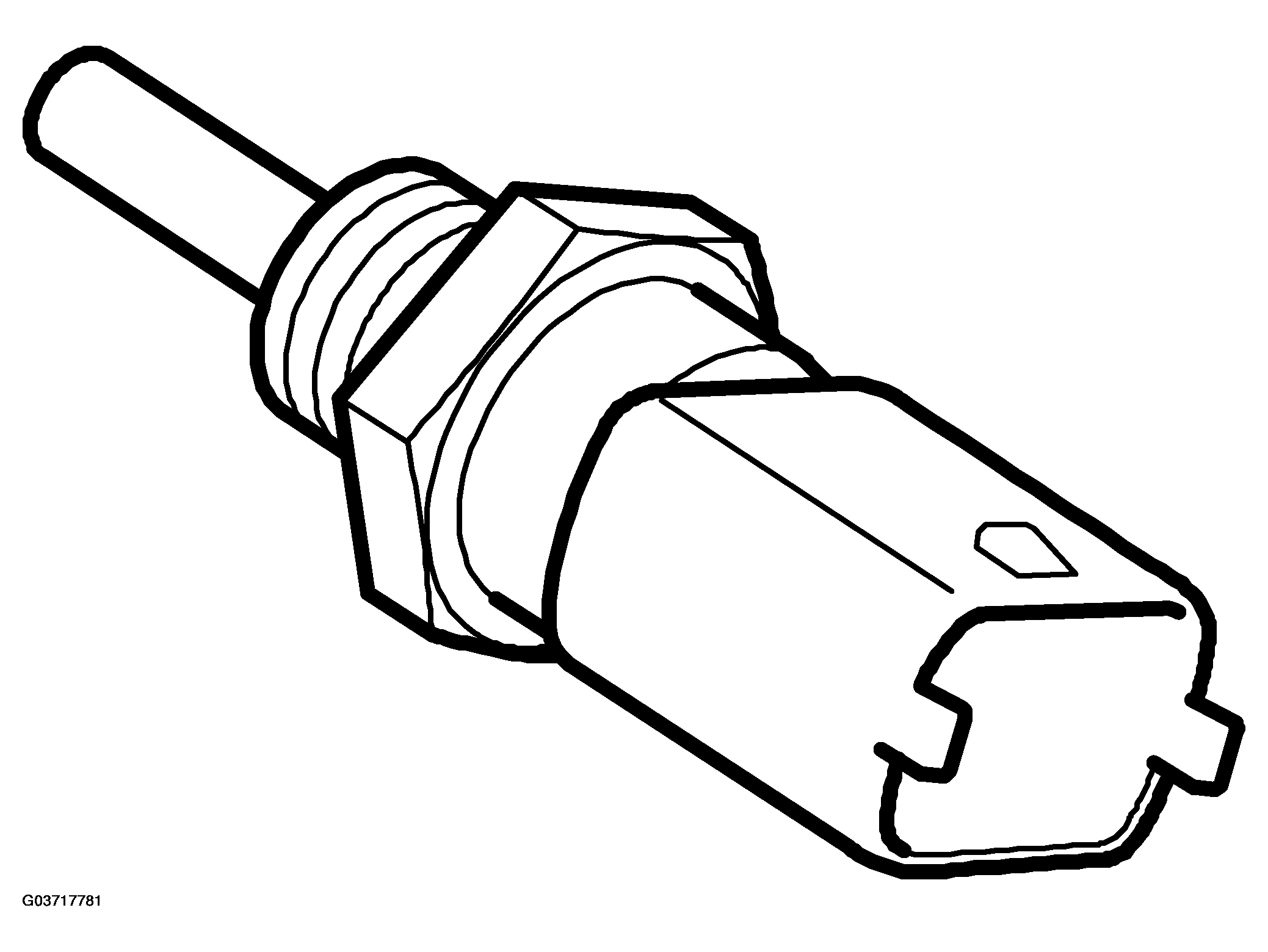

Engine oil temperature sensor (559), PSG16
Courtesy of SAAB-SCANIA OF AMERICA, INC.

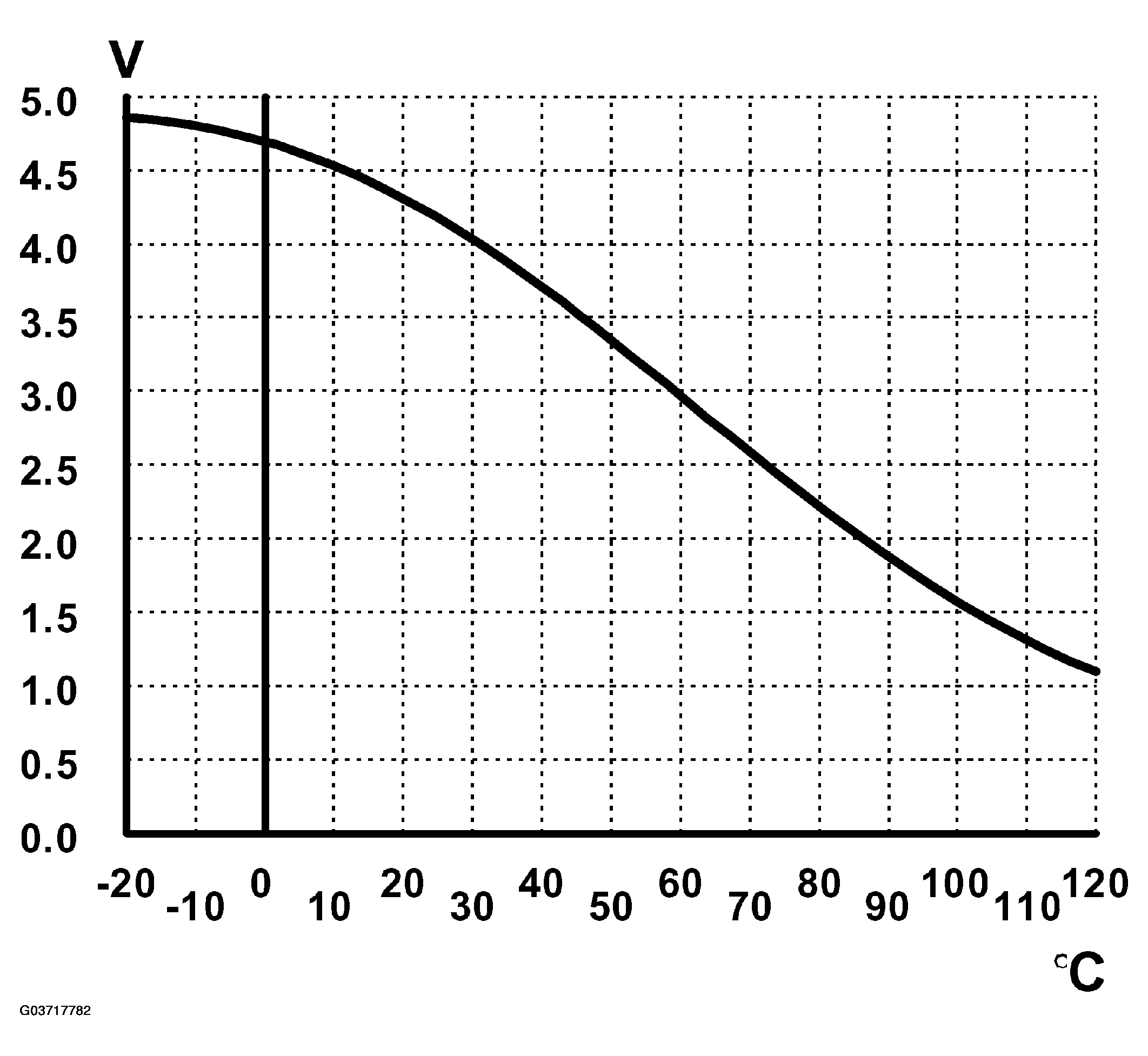

Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - ENGINE OIL TEMPERATURE SENSOR (559), PSG16
| Temperature (°C) |
Voltage (V) |
Resistance (kOhm) |
| -20 |
4.87 |
15.462 |
| -10 |
4.79 |
9.397 |
| 0 |
4.68 |
5.896 |
| 20 |
4.31 |
2.500 |
| 25 |
4.18 |
2.057 |
| 40 |
3.72 |
1.175 |
| 60 |
2.98 |
0.596 |
| 80 |
2.22 |
0.323 |
| 100 |
1.58 |
0.186 |
| 120 |
1.09 |
0.113 |
