Crankshaft position sensor (345), PSG16

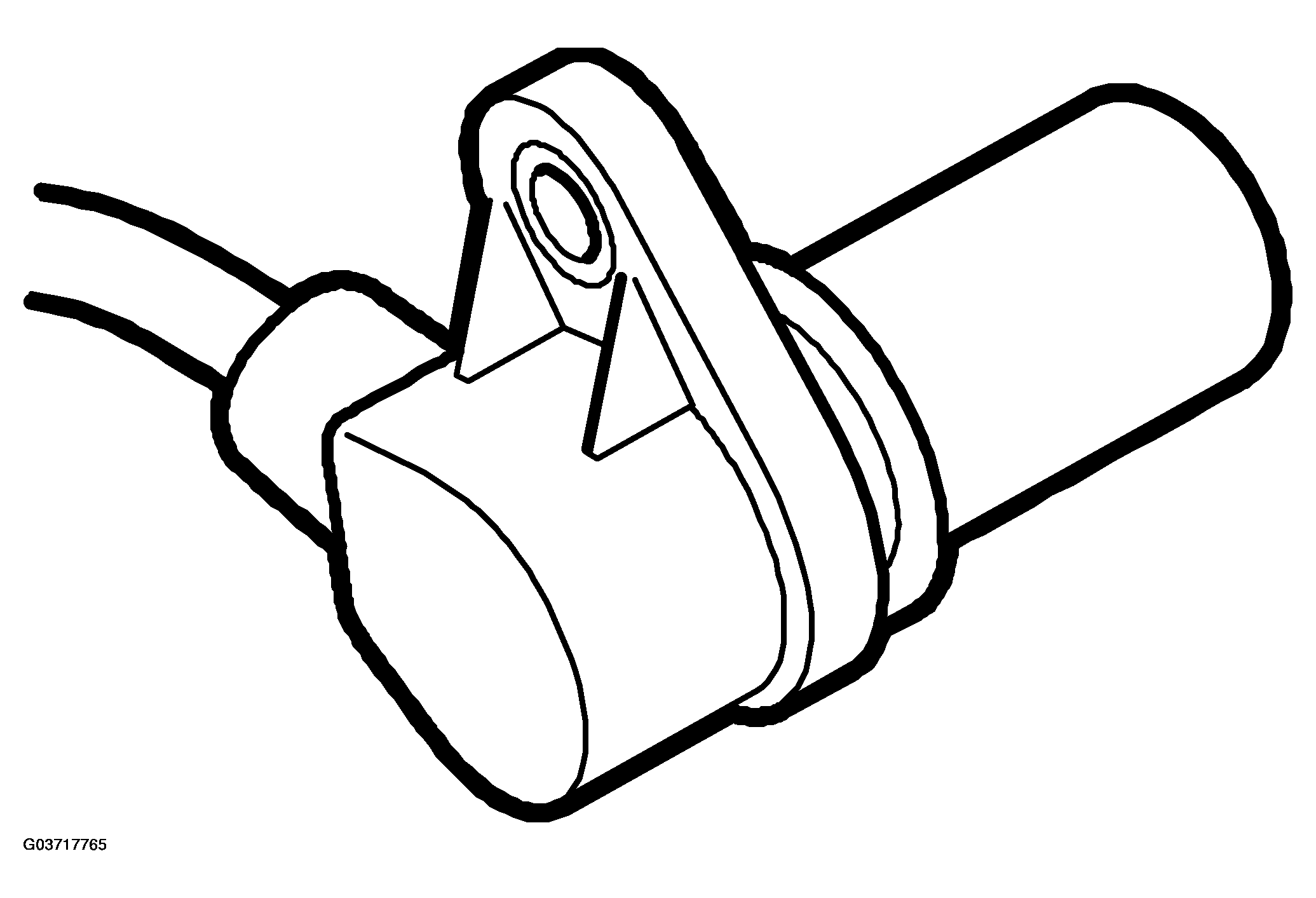

Fig 1: View Of Crankshaft Position Sensor (345), PSG16
G03717765Courtesy of SAAB-SCANIA OF AMERICA, INC.
CRANKSHAFT POSITION SENSOR (345), PSG16 TECHNICAL DATA

Resistance (at +20°C) Ohm 860
Number of teeth qty. 4
Gap, sensor-perforated disc mm 1.8
