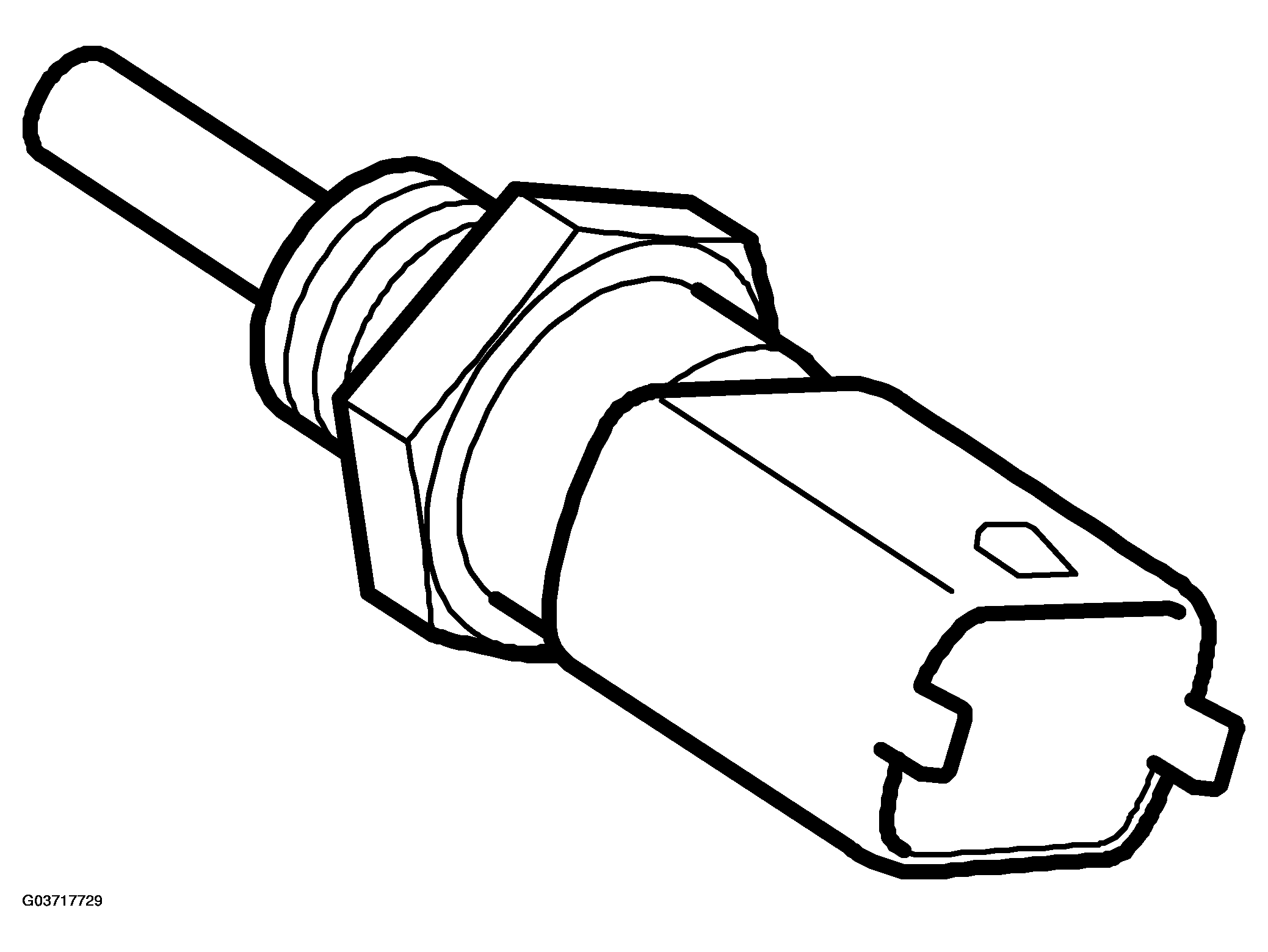

Coolant temperature sensor (202), PSG16
Courtesy of SAAB-SCANIA OF AMERICA, INC.

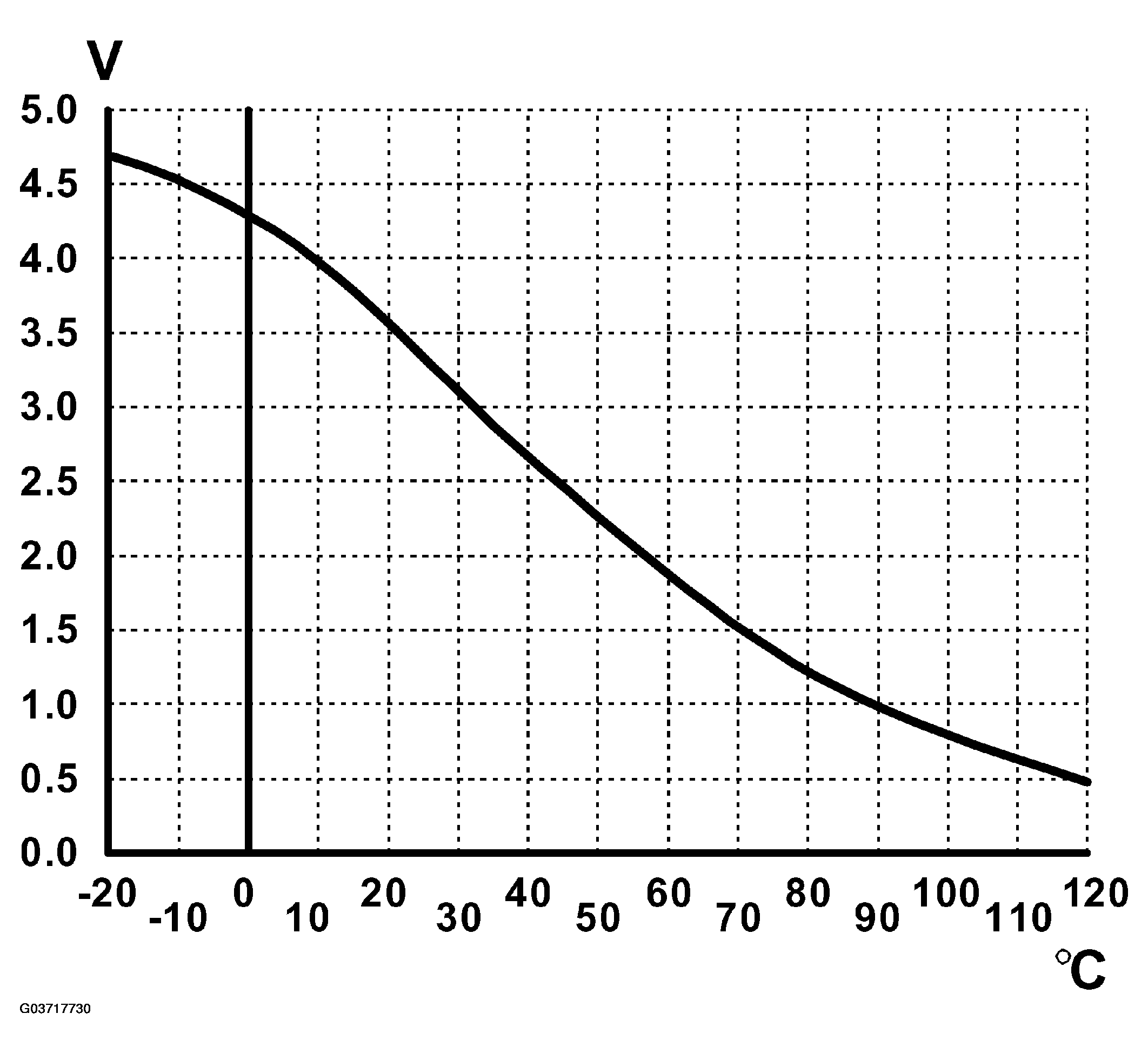

Courtesy of SAAB-SCANIA OF AMERICA, INC. COOLANT TEMPERATURE SENSOR (202), PSG16 TECHNICAL DATA
| Temperature (°C) |
Voltage (V) |
Resistance (kOhm) |
| -20 |
4.69 |
15.462 |
| -10 |
4.52 |
9.397 |
| 0 |
4.27 |
5.896 |
| 20 |
3.57 |
2.500 |
| 25 |
3.36 |
2.057 |
| 40 |
2.70 |
1.175 |
| 60 |
1.86 |
0.596 |
| 80 |
1.22 |
0.323 |
| 100 |
0.78 |
0.186 |
| 120 |
0.50 |
0.113 |
