Unit, telematics (468): Location

4D: below parcel shelf

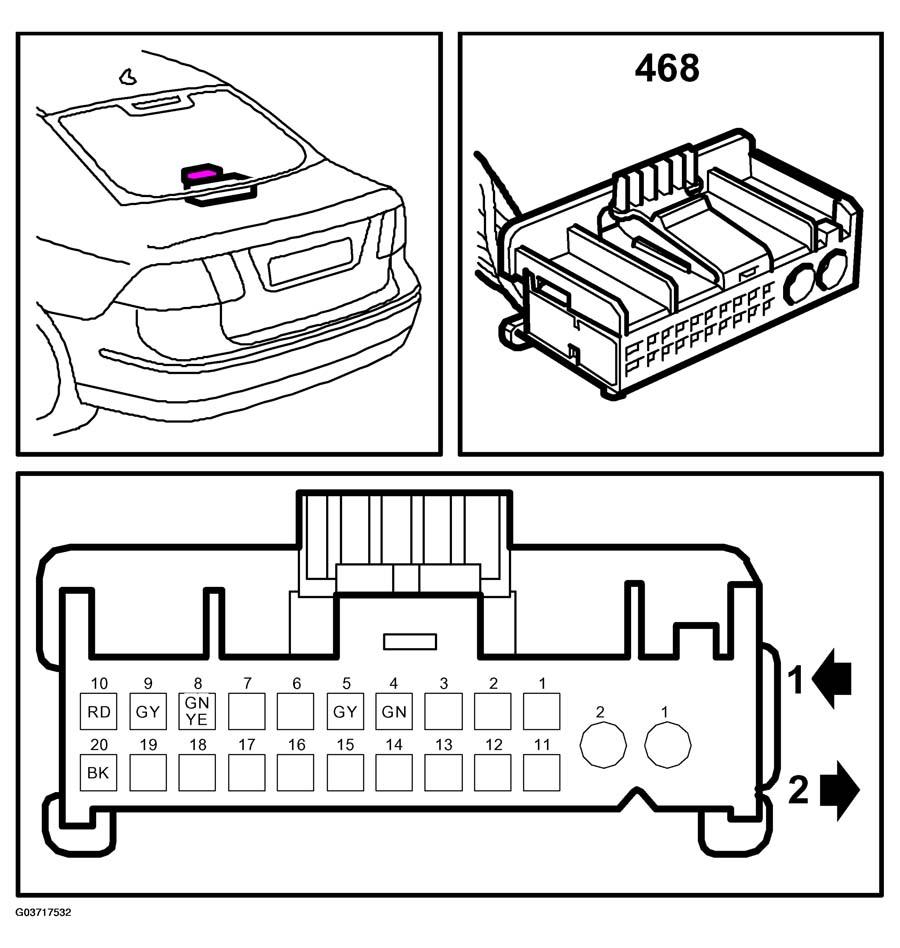

Fig 1: Identifying Unit, Telematics (468) 4D - Connector Location
G03717532Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV: in front edge of boot

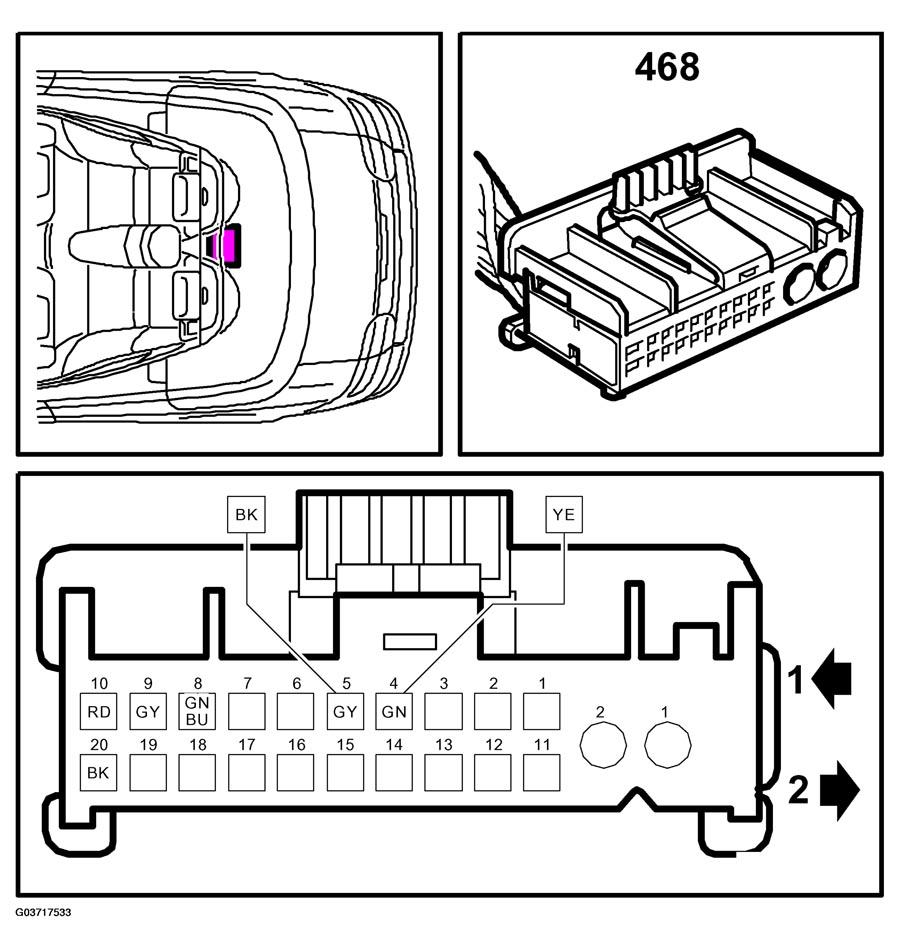

Fig 2: Identifying Unit, Telematics (468) CV - Connector Location
G03717533Courtesy of SAAB-SCANIA OF AMERICA, INC.
