Reversing light switch (31): Location

Location: on the gearbox.

5 speed manual gearbox

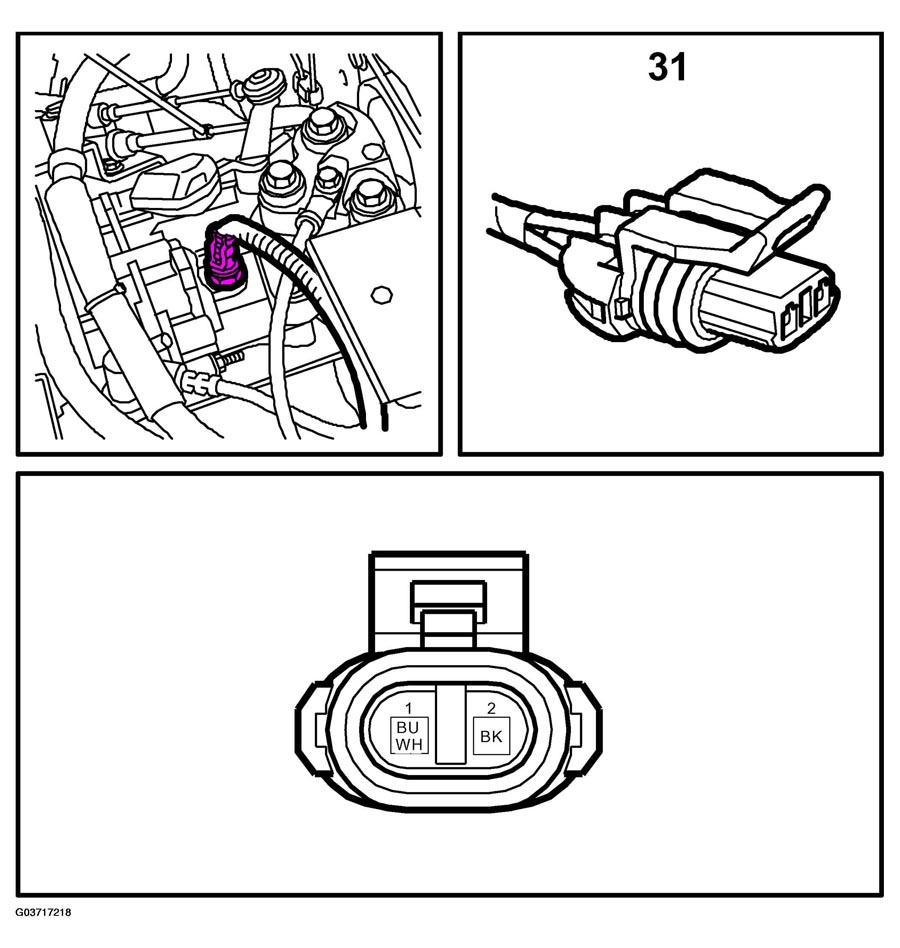

Fig 1: Identifying Reversing Light Switch Connector Location (5 Speed)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

6 speed manual gearbox

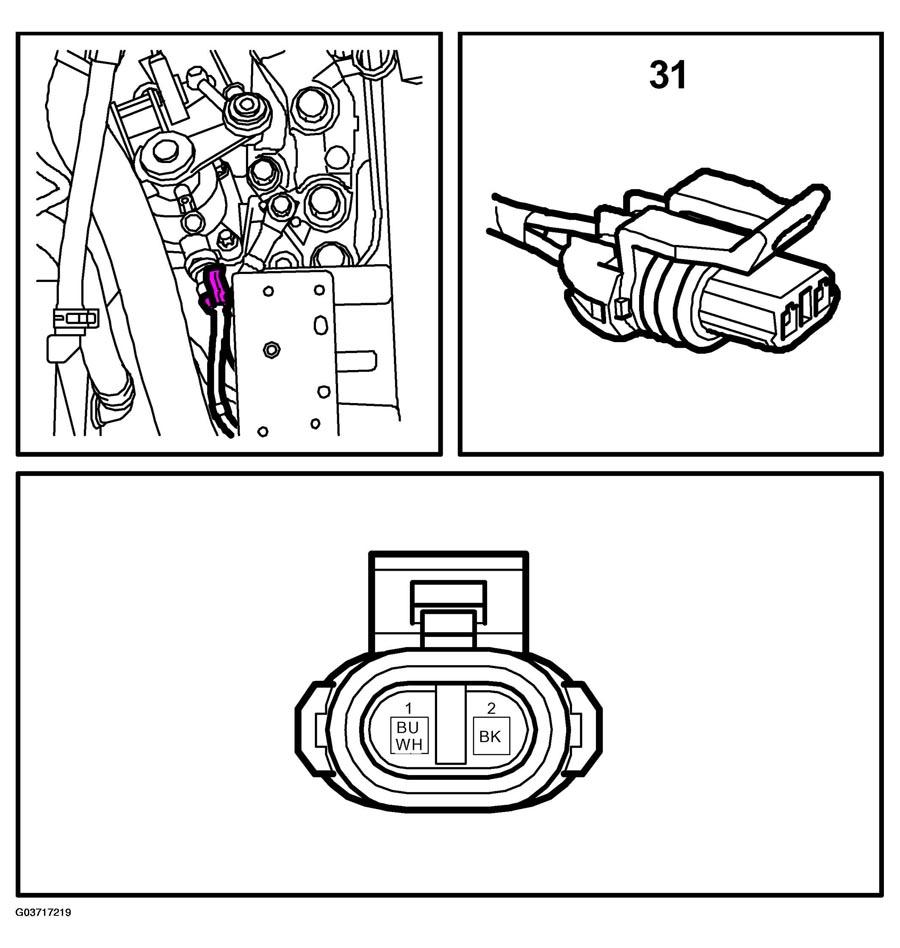

Fig 2: Identifying Reversing Light Switch Connector Location (6 Speed)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
