Intake air sensor (688): Location

4-cyl petrol:  on the charge air pipe

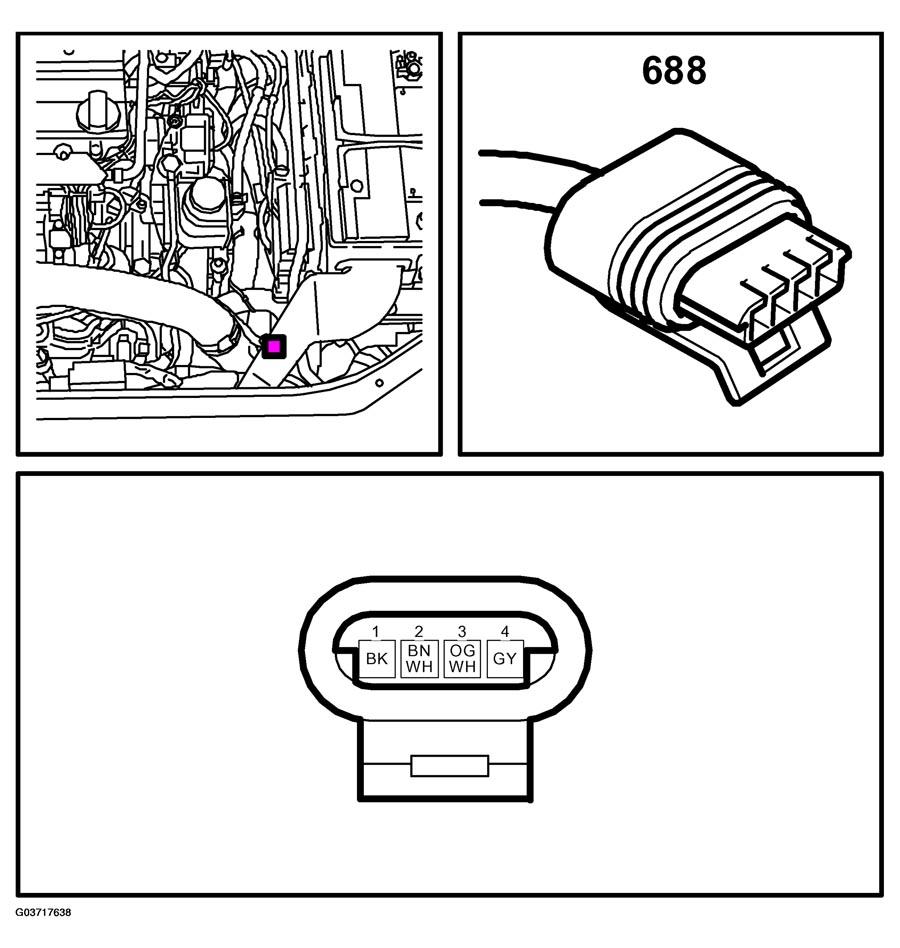

Fig 1: Identifying Intake Air Sensor (688) 4-Cyl Petrol - Connector Location
G03717638Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel:  on throttle body

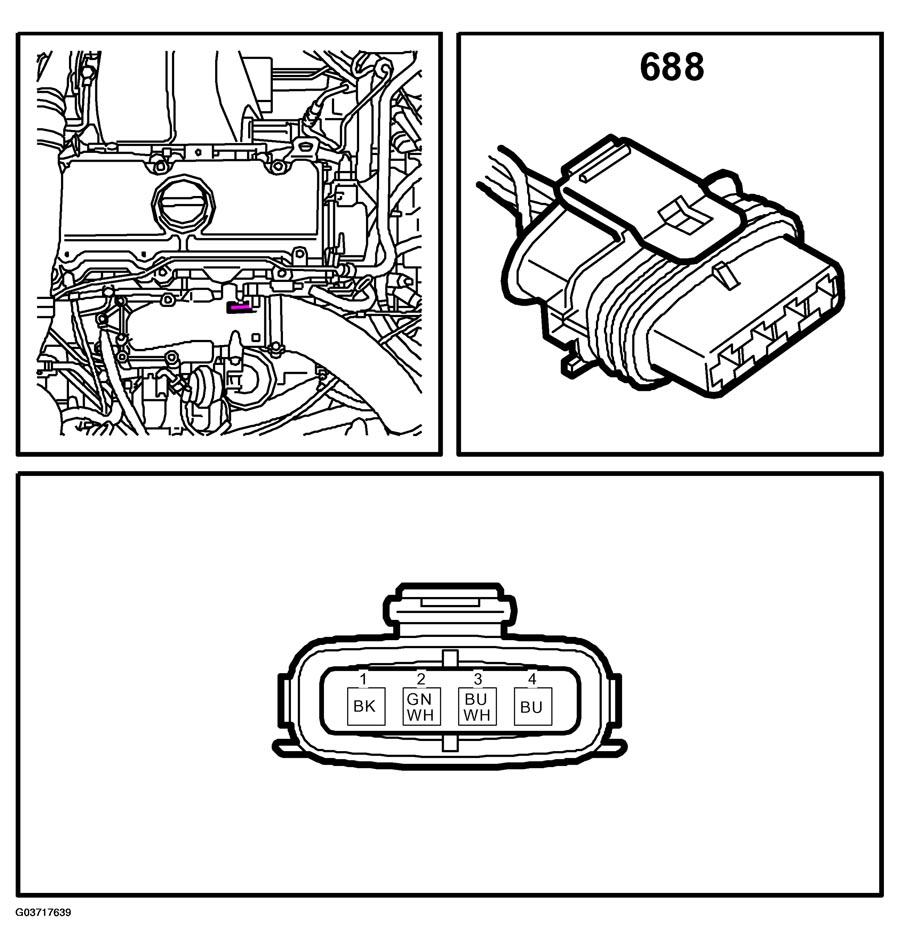

Fig 2: Identifying Intake Air Sensor (688) 4-Cyl Diesel - Connector Location
G03717639Courtesy of SAAB-SCANIA OF AMERICA, INC.
