Fuel level sensor (46), T8

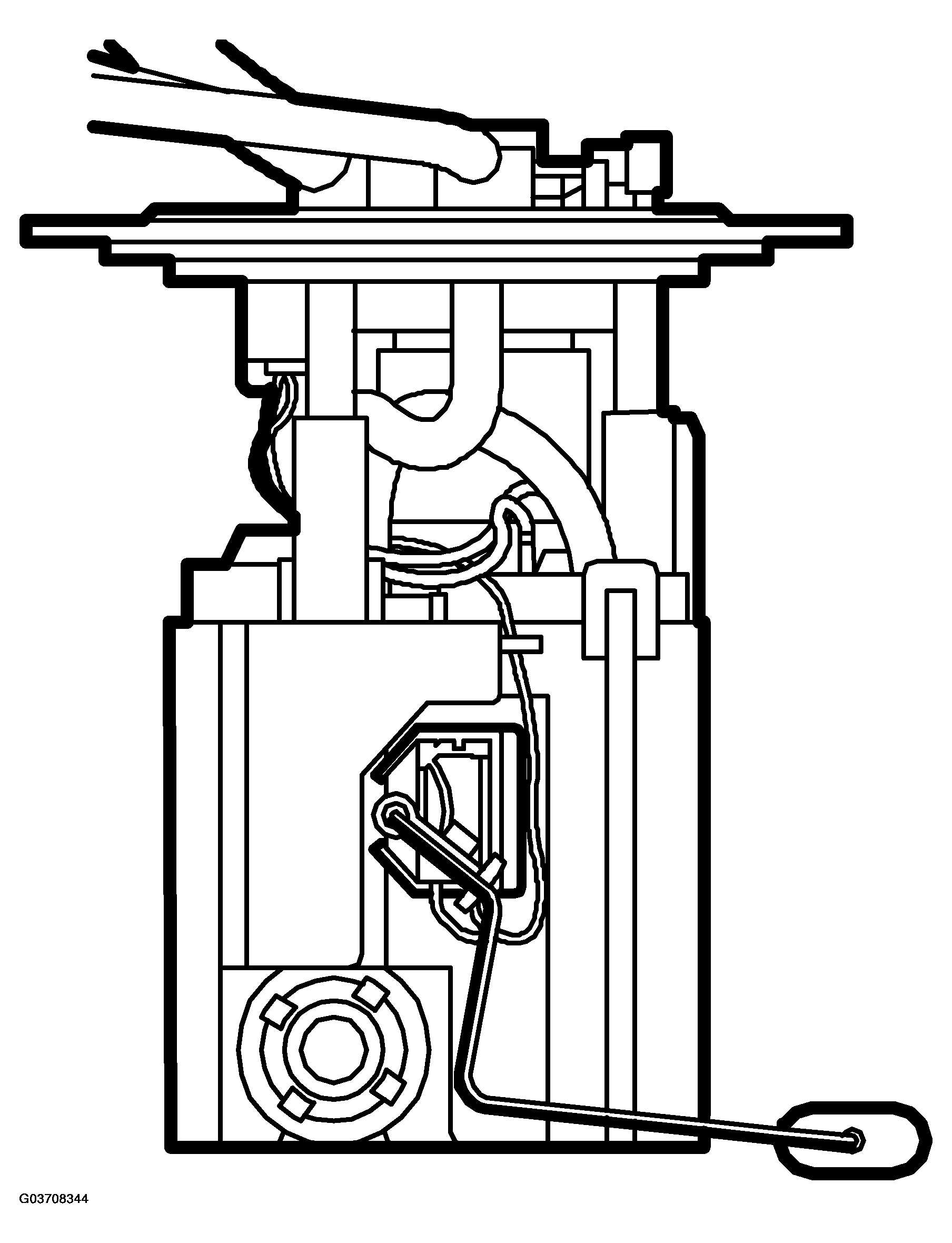

Fig 1: Identifying Fuel Level Sensor
G03708344Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL LEVEL SENSOR TECHNICAL DATA

I Ohm V
1.0 39.8 0.38
8.0 72.3 0.65
16.0 104.4 0.88
24.0 133.6 1.08
30.0 152.8 1.19
40.0 182.3 1.36
48.0 208.1 1.50
56.0 240.3 1.65
63.0 250.0 1.70
