Connected components

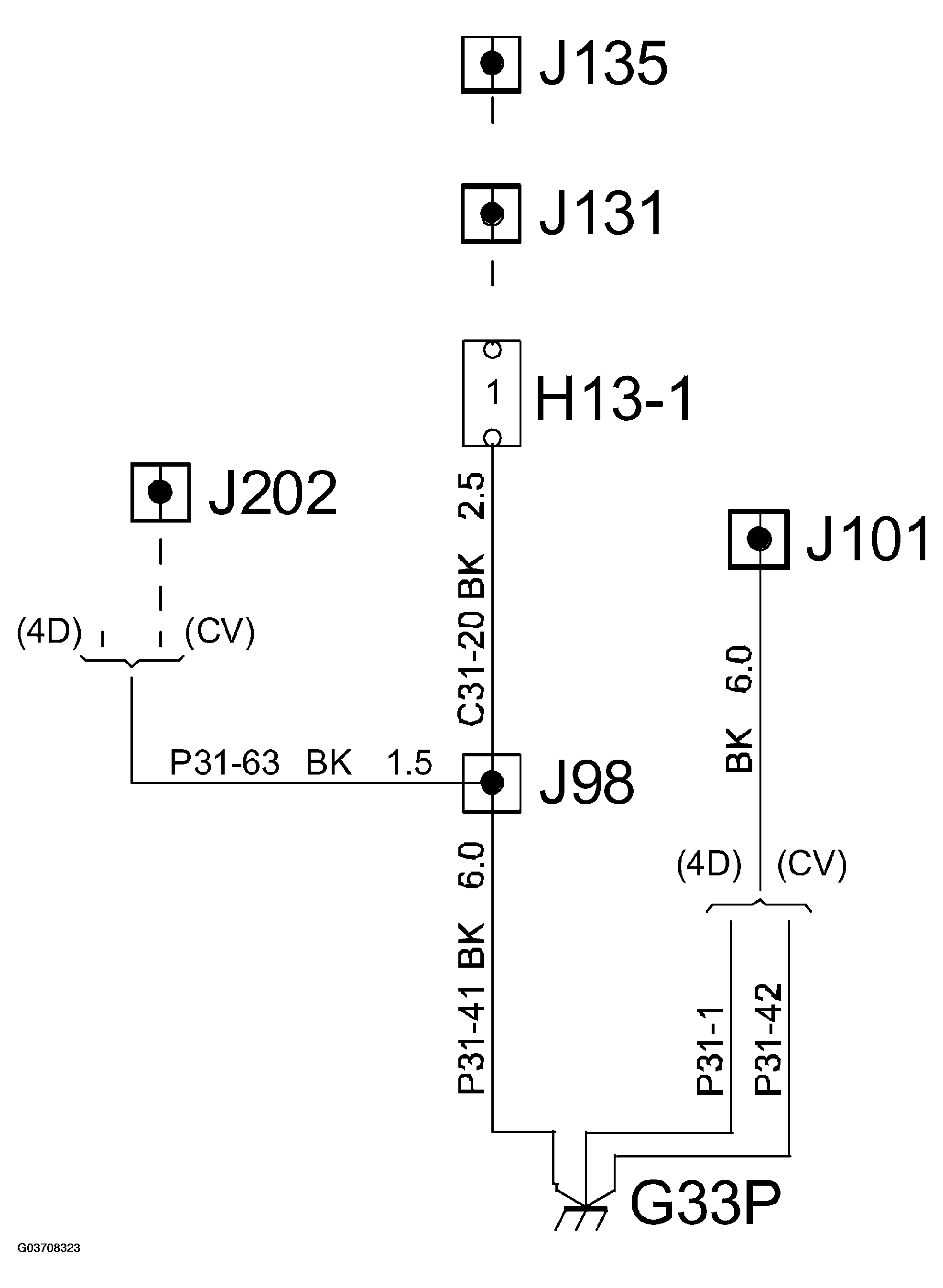

GROUNDING POINT G33P COMPONENT DESCRIPTION
| Via Crimp J98, main wiring harness | |
| 276 | Bonnet switch, anti-theft alarm |
| 410 | Heating element, fuel filter (RHD) |
| 575RL | Control module, window lift, left rear (CV) |
| 700 | Battery disconnect switch |
| 702RL | Control module, left rear door (4D) |
| Via Crimp J131, outer door harness in front left door, which is connected to crimp J98 | |
| 207D/P | Heating element, left-hand door mirror |
| 702D/P | Control module, front left door |
| Via Crimp J202, main harness CV which is then connected with J98 | |
| 50 | Lamp, roof lighting |
| 225 | Reading lamp |
| 359LH/RH | Lamp, make-up mirror lighting |
| 681 | Interior rear-view mirror |
| Via Crimp J101, main wiring harness | |
| 64FL | Heating pad seat, left |
| 357 | Switches, left electrically adjustable seat |
| 357Dk (LHD) | Control module with memory, driver's seat |
| 357k (LHD) | Control module, driver's seat (CV) |
| 357m (LHD) | Lumbar support air pump motor, driver's seat (CV) |
| 357v (LHD) | Lumbar support valve, driver's seat (CV) |
| 741FL | Microswitch for backrest, locked in upright position, left seat (CV) |
