Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Component Location >> Connector H10-3 >> Location:

Connector H10-3: Location:

on a bracket by the tank strap on the front edge of the fuel tank

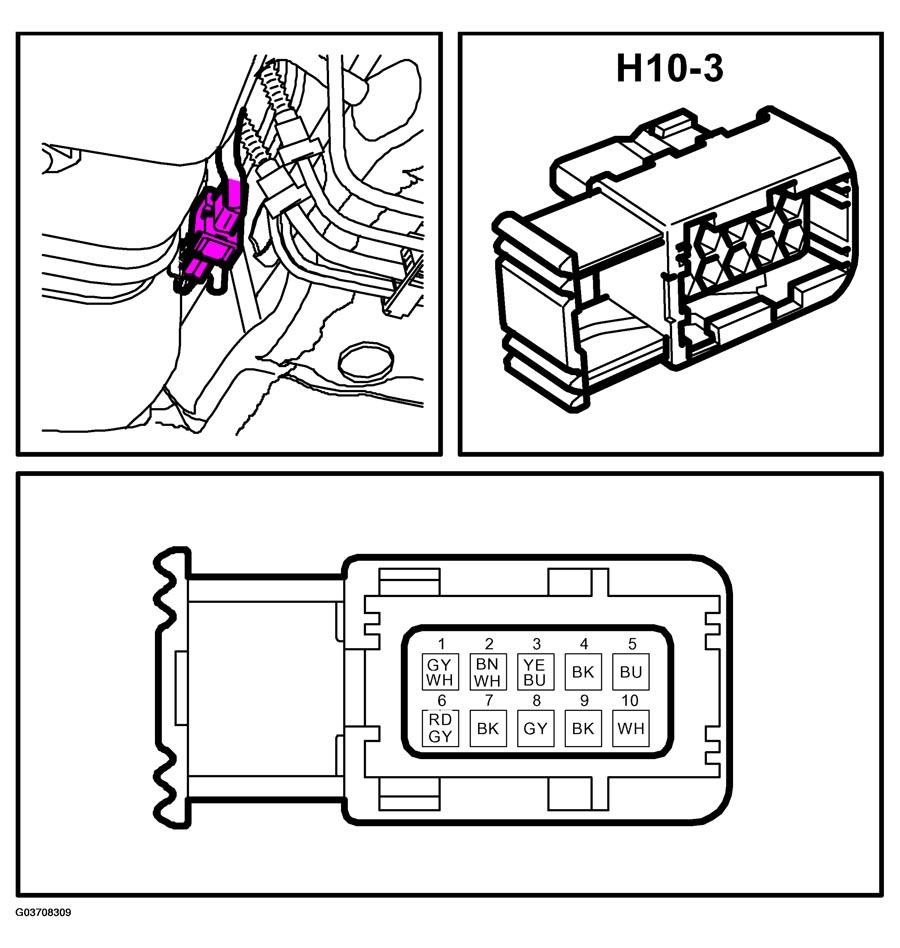

Fig 1: Identifying H10-3 Connector Pinout

G03708309

Courtesy of SAAB-SCANIA OF AMERICA, INC.
