To fit

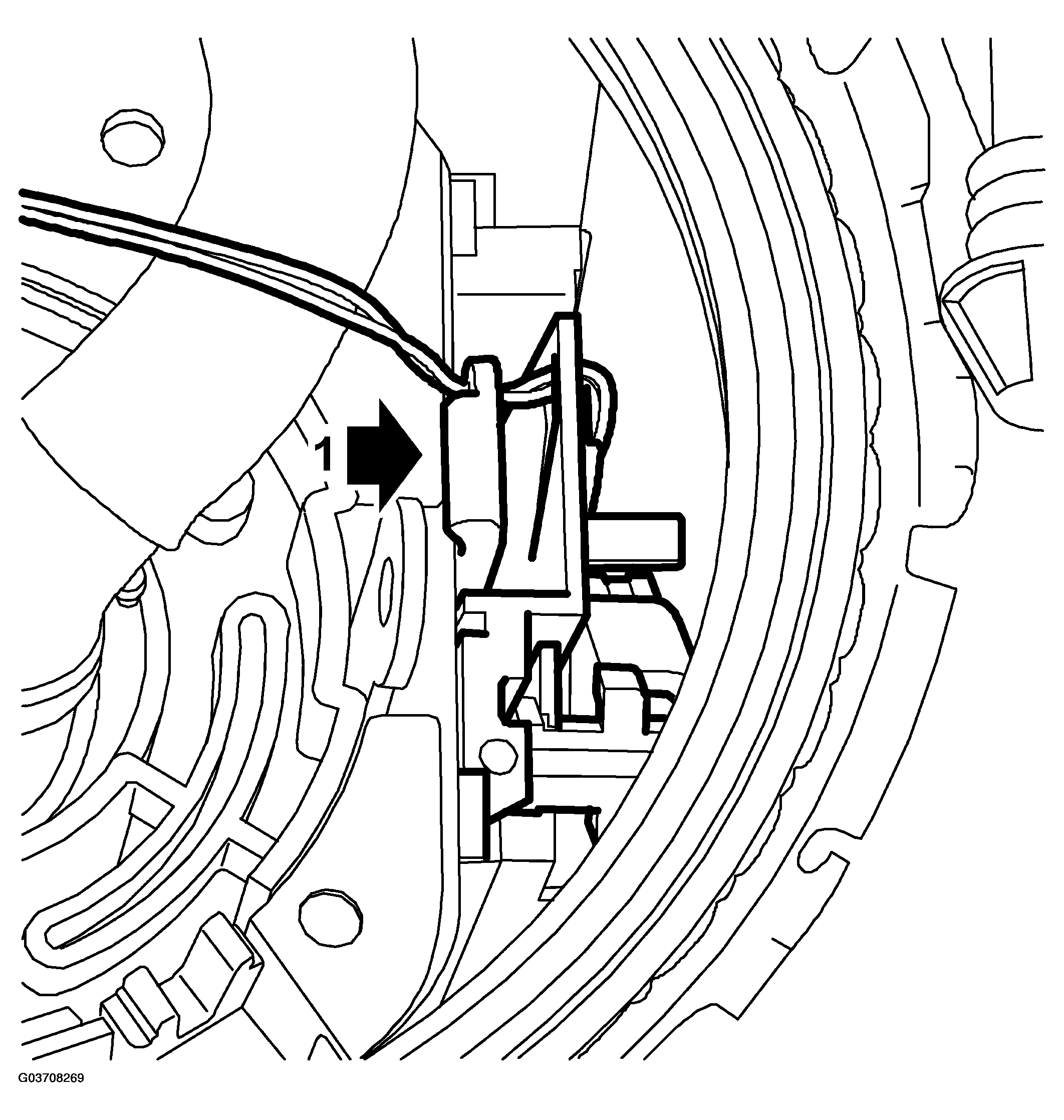

Press the fuel level sensor into the guide. Let the catch (arrow) snap into place.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

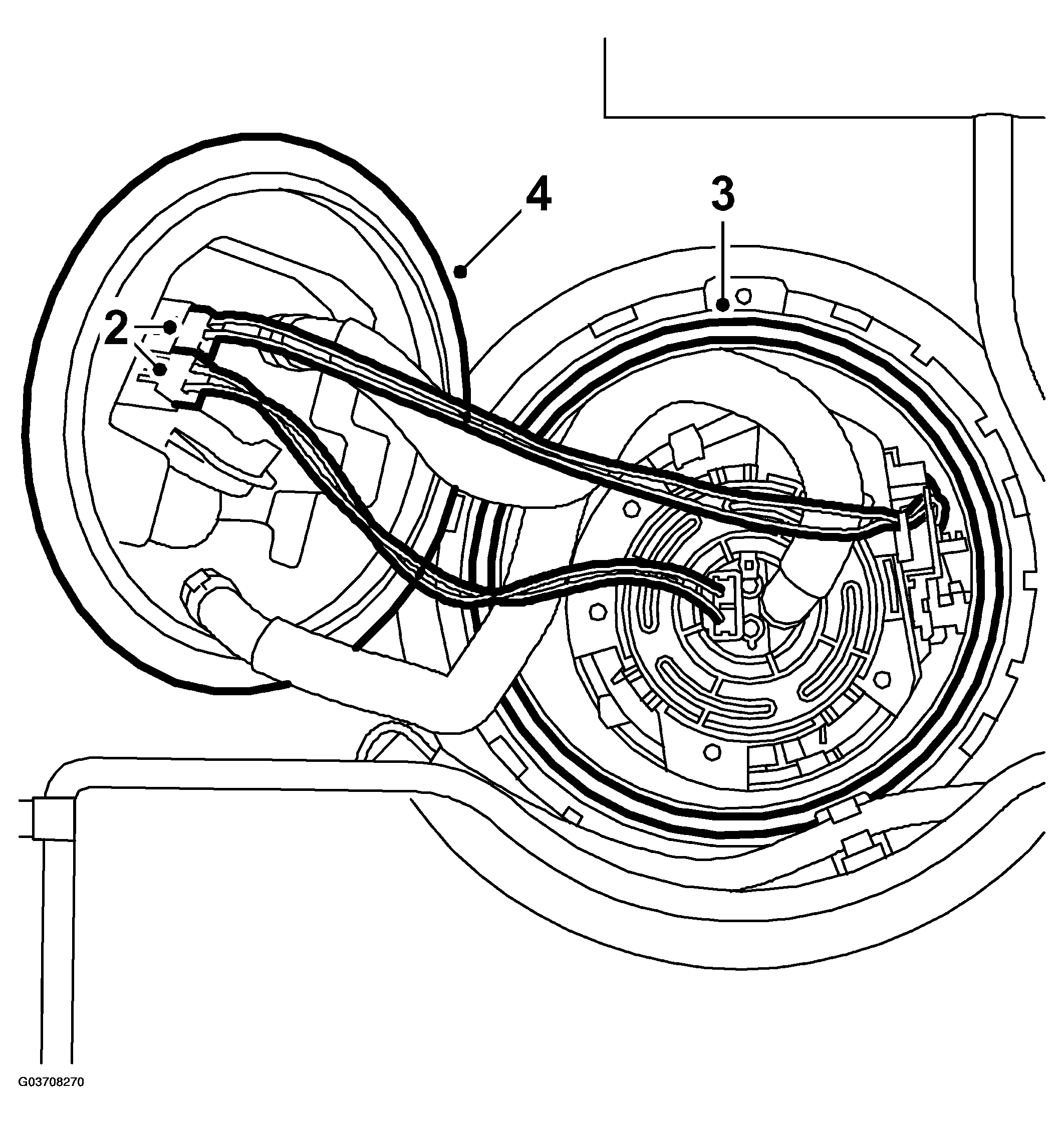

Plug in the fuel level sensor.

Fig 2: Illustration For Step 2-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.

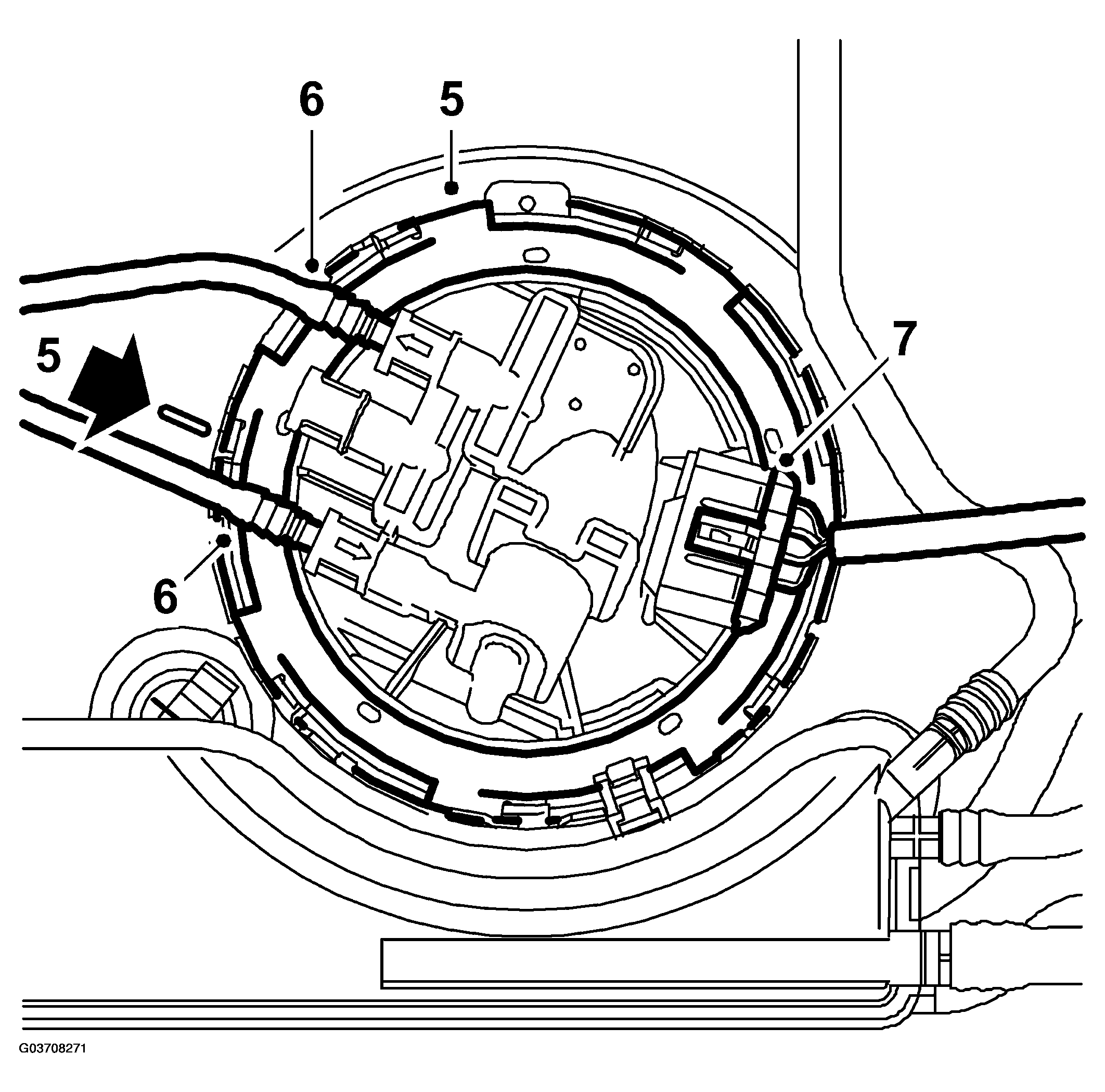

Fit a new sealing ring.
Carefully insert the cover into the maintenance hole.
Fit the circlip. Turn clockwise.

Fig 3: Illustration For Step 5-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the plugs and fit the fuel line and fuel return line.
Fit the connector.
Fit the fuel tank. Refer to FUEL TANK, EU .
