To remove

  1. Remove the gearbox, see or COMPLETE AUTOMATIC TRANSMISSION .
  2. Remove the pressure plate and clutch drive plate, see CLUTCH ASSEMBLY .
  3. Remove the driver plate or the Flywheel.
  4. Carefully pry out the seal using a screwdriver.

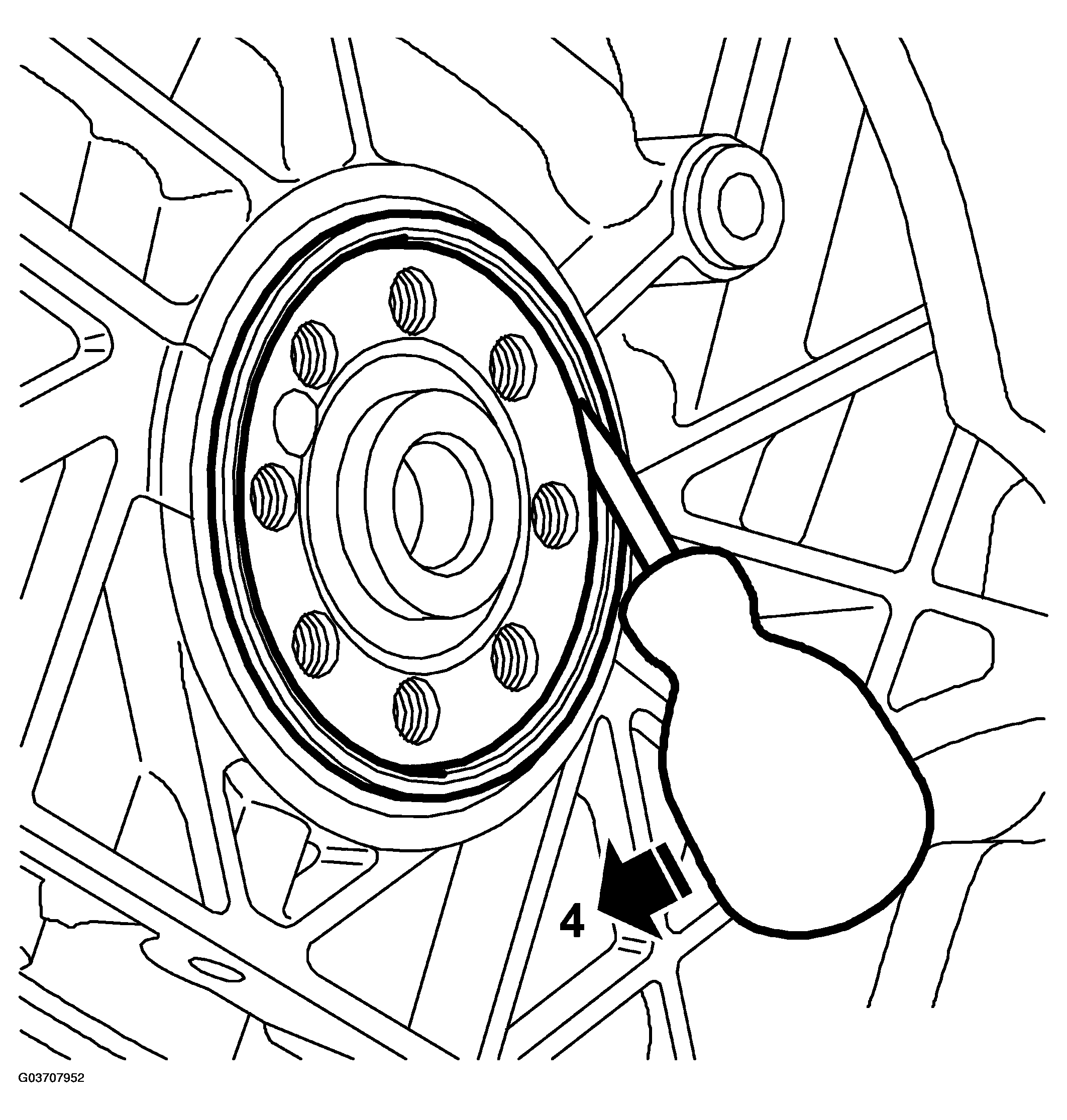

    Fig 1: Illustration For Step 4
    G03707952Courtesy of SAAB-SCANIA OF AMERICA, INC.
