To remove

  1. Raise the car.
  2. Remove the lower engine cover.
  3. Cut the front pipe between the flexipipe and the silencer at 87 mm. Cut the pipe at right-angles using 83 95 667 PIPE CUTTER/EXHAUST SYSTEM  .

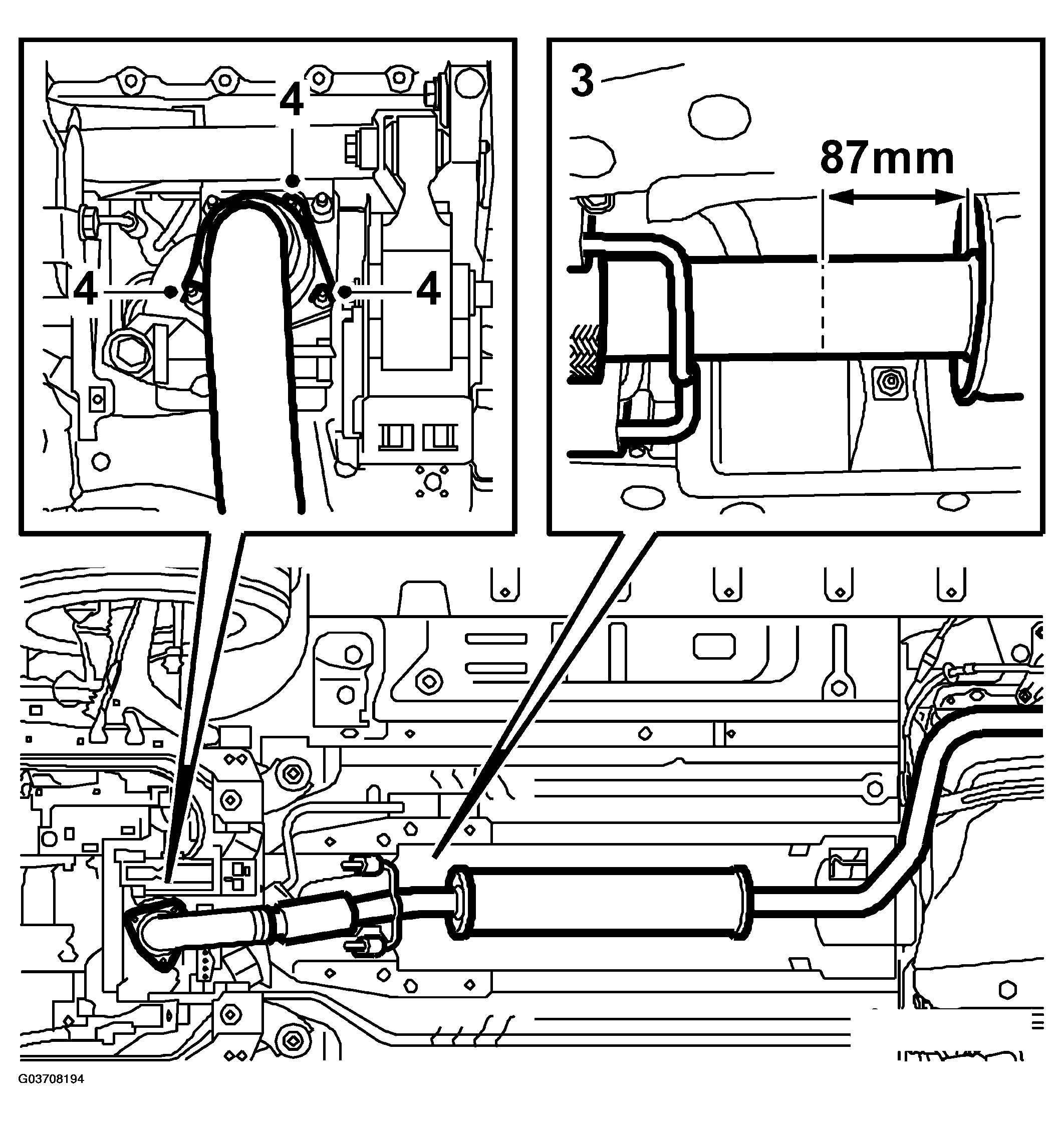

    Fig 1: Illustration For Step 3-4
    G03708194Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the nuts to the catalytic converter and remove the front pipe.
