Main components, Telematics

4D

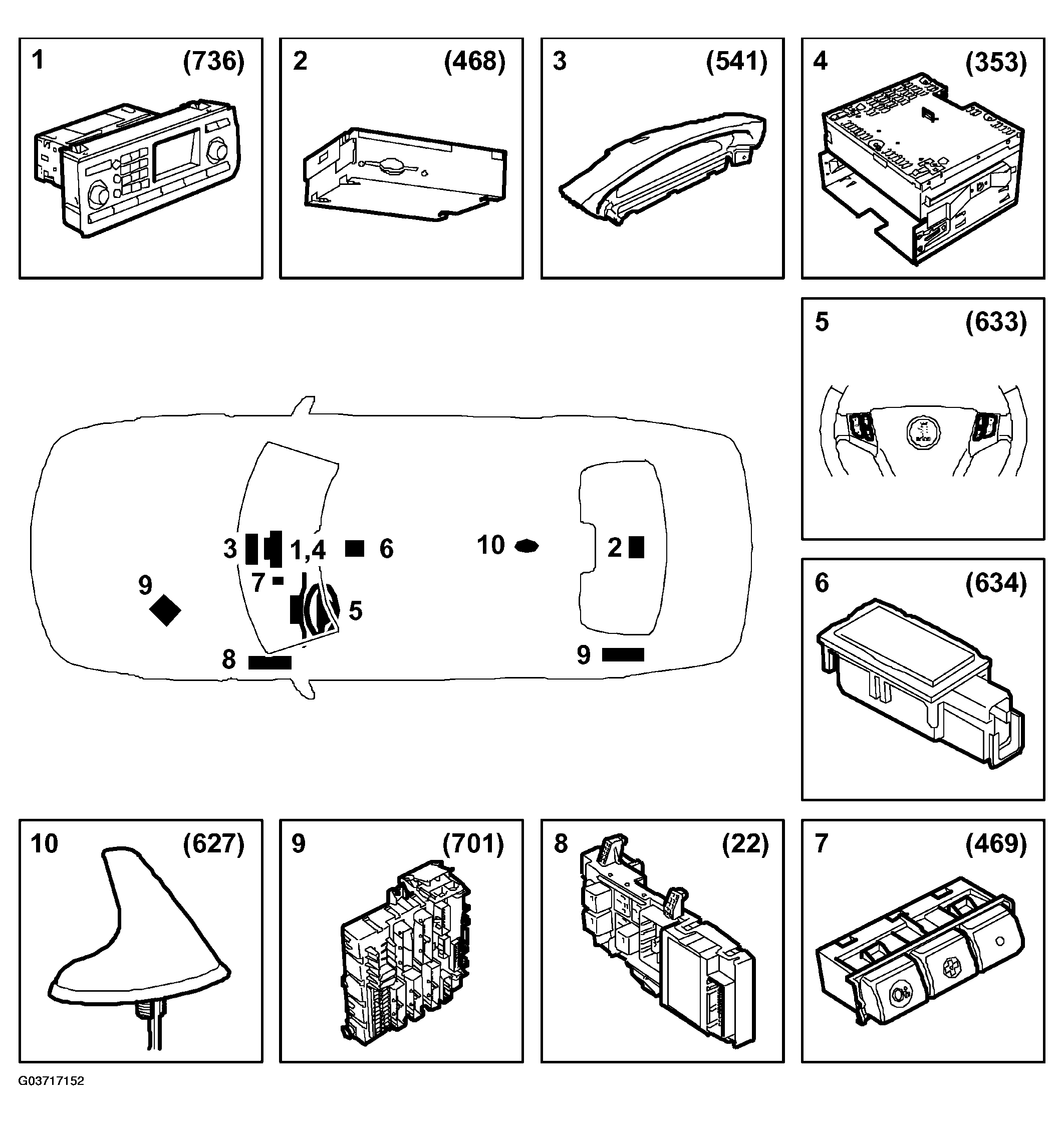

Fig 1: Identifying 4D Telematics Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

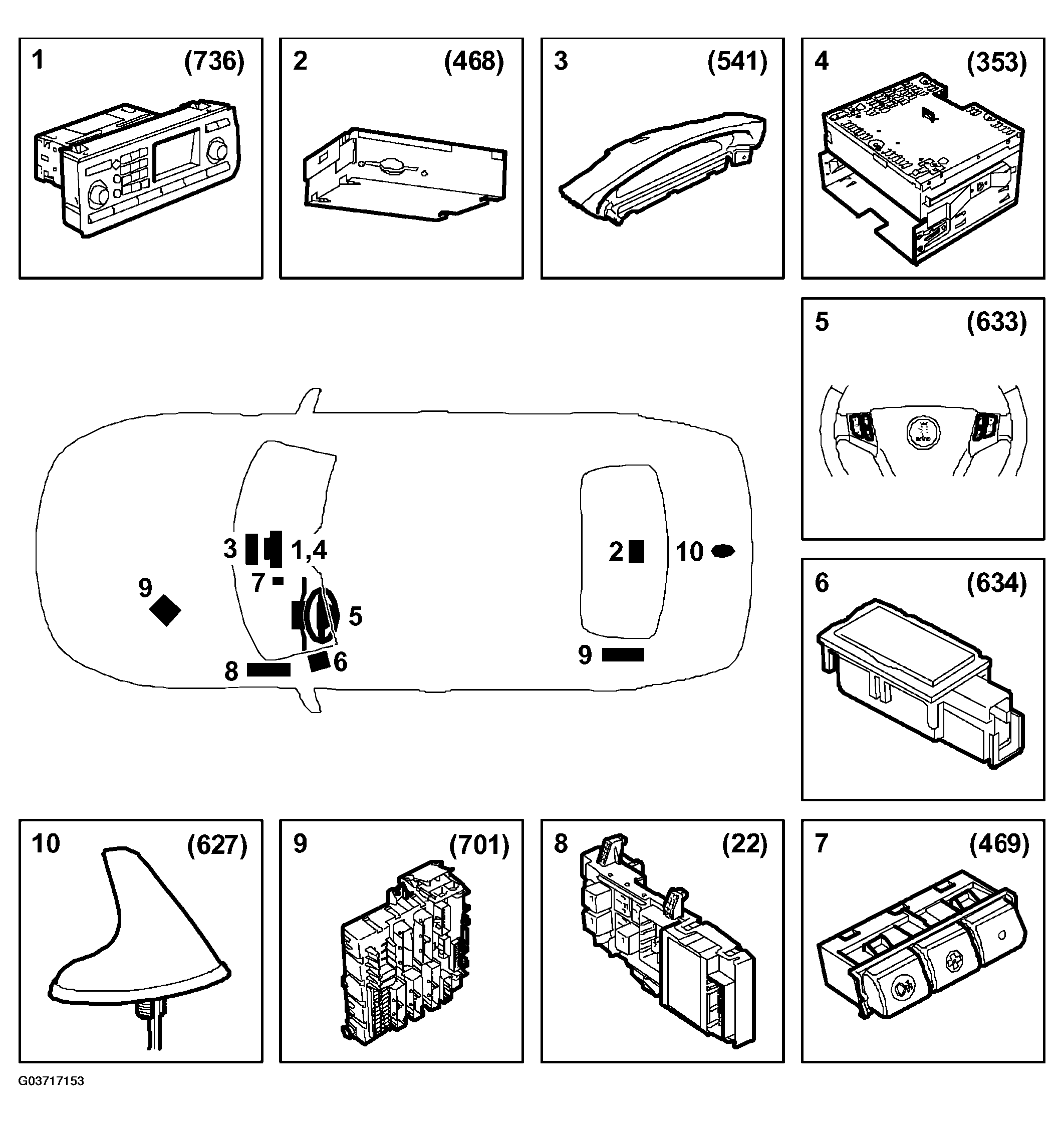

Fig 2: Identifying CV Telematics Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Infotainment control panel 2-3 (736b, c)
2. Telematics unit (468)
3. SID (541c)
4. Entertainment head unit (353)
5. Steering wheel controls (633)
6. Microphone (634)
7. OnStar control panel (469)
8. Column integration module (703)
9. Rear electrical center (701)
10. Antenna, mobile phone (627)
