Brief description, Navigation: Overview

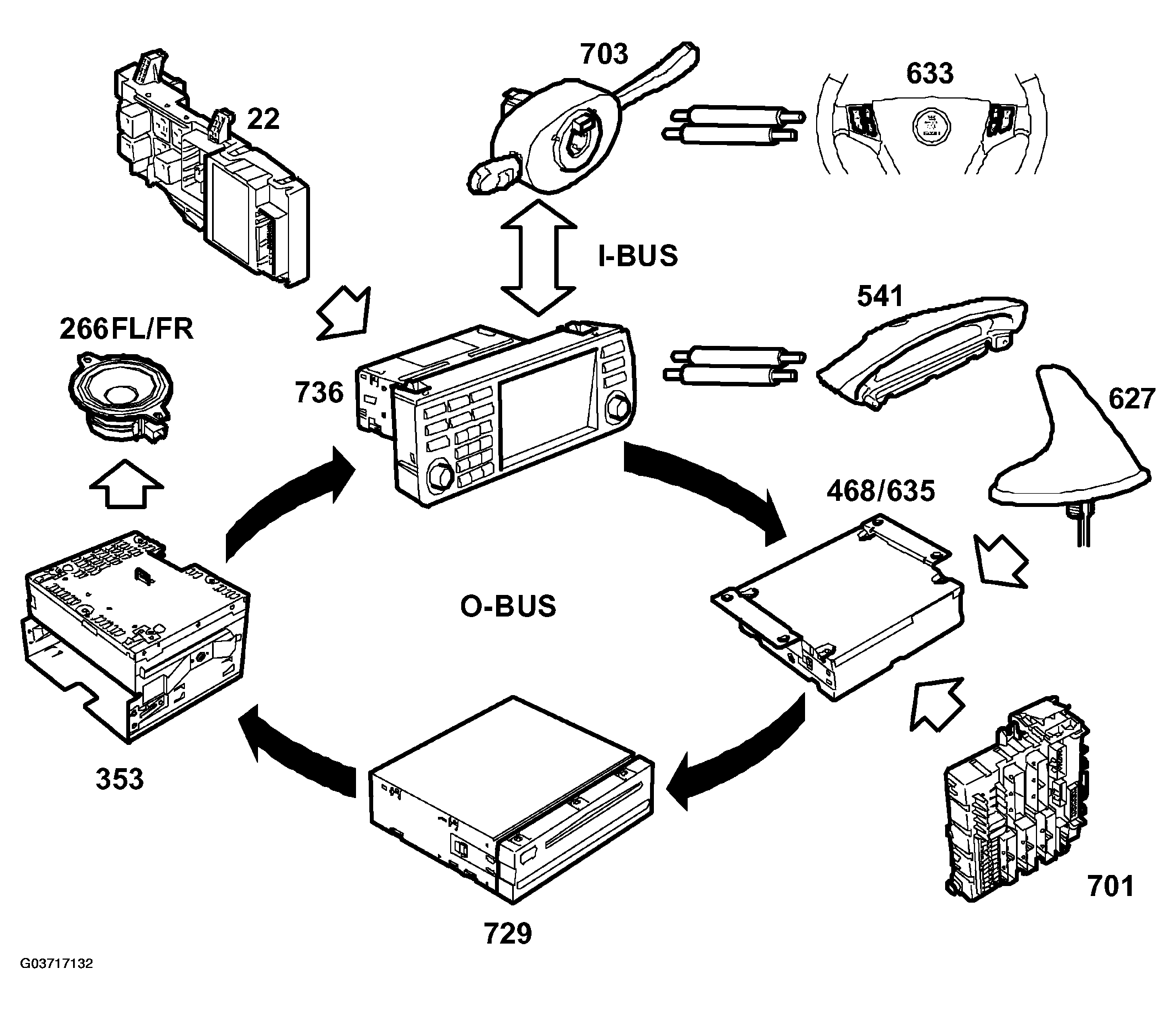

Fig 1: Identifying Electrical Components

G03717132

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Electrical center, dashboard (22)
Speaker (266 FR, FL)
Entertainment Head Unit, EHU (353)
Antenna, GPS/GSM (467)
Navigation unit, CU/PU (468/635)
SID (541c)
Steering wheel controls (633)
Rear Electrical Center, REC (701)
DVD unit (729)
Control panel, Infotainment system 3, ICM3 (736c)
