Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Telematics And Navigation >> Adjustment/Replacement >> OnStar panel >> To remove

To remove

  1. Remove the ACC/MCC unit with 82 93 474 REMOVAL TOOL

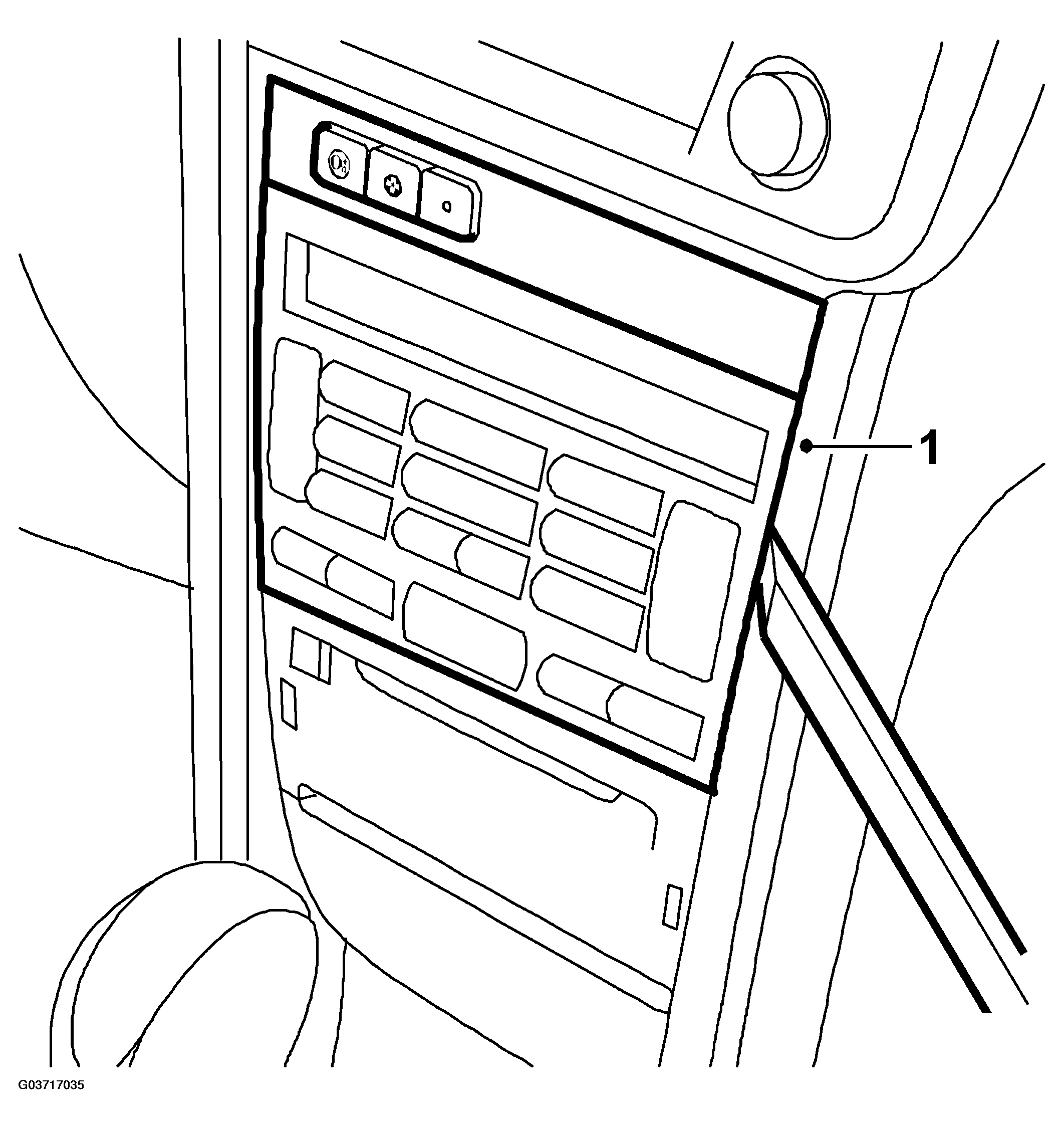

    Fig 1: Illustration For Step 1
    G03717035Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the OnStar panel by releasing the catches on the rear edge of the panel.

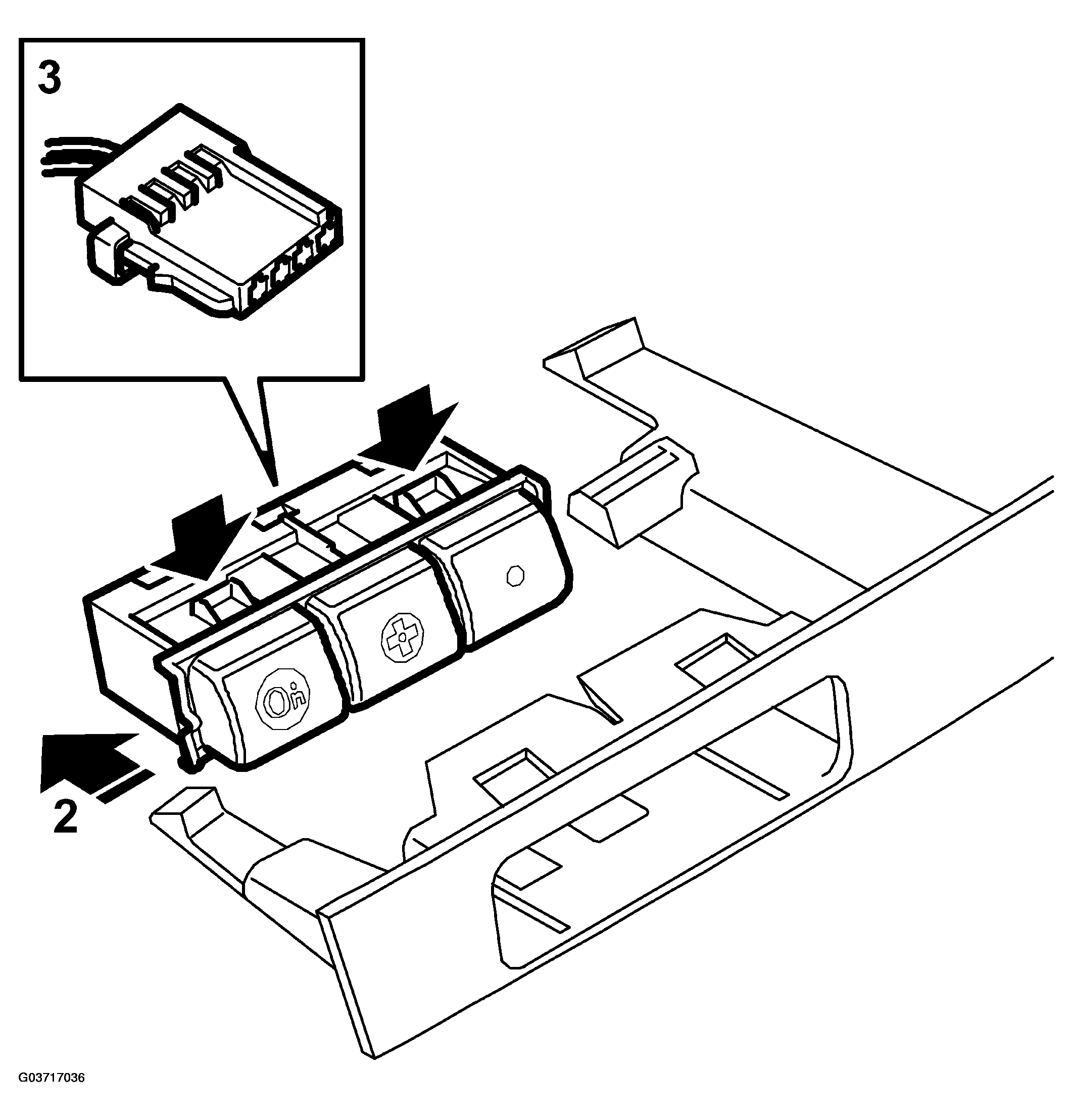

    Fig 2: Illustration For Steps 2-3
    G03717036Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the OnStar-panel connector.
