Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Telematics And Navigation >> Adjustment/Replacement >> Microphone, CV >> To remove

To remove

  1. Remove the trim from the top of the windscreen frame and the A-pillar trim
  2. Remove the microphone by releasing the clip with a screwdriver.

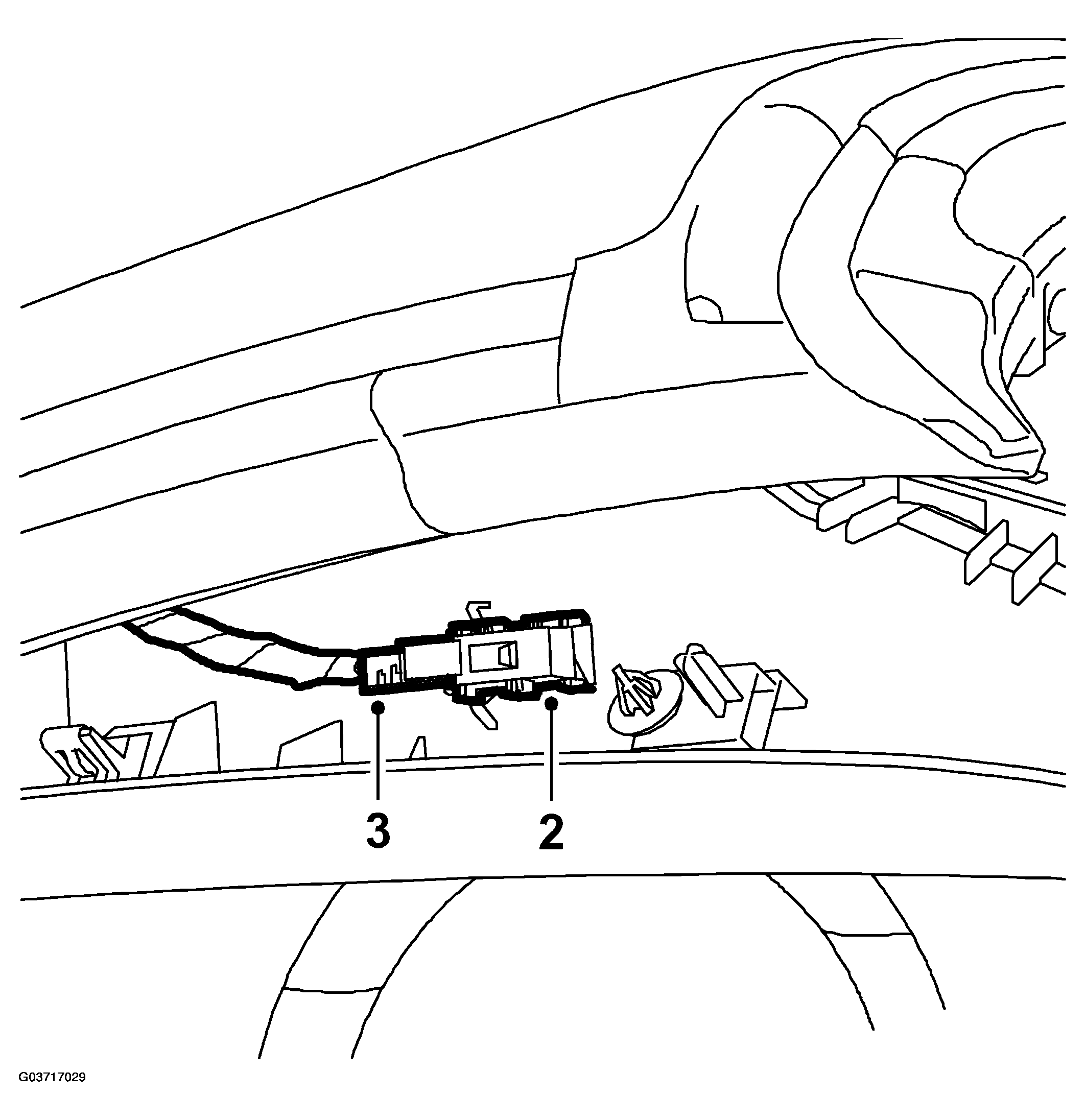

    Fig 1: Illustration For Steps 2-3
    G03717029Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.
