Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Telematics And Navigation >> Adjustment/Replacement >> Microphone, 4D >> To remove

To remove

  1. Remove the lens cover from the roof lamp.

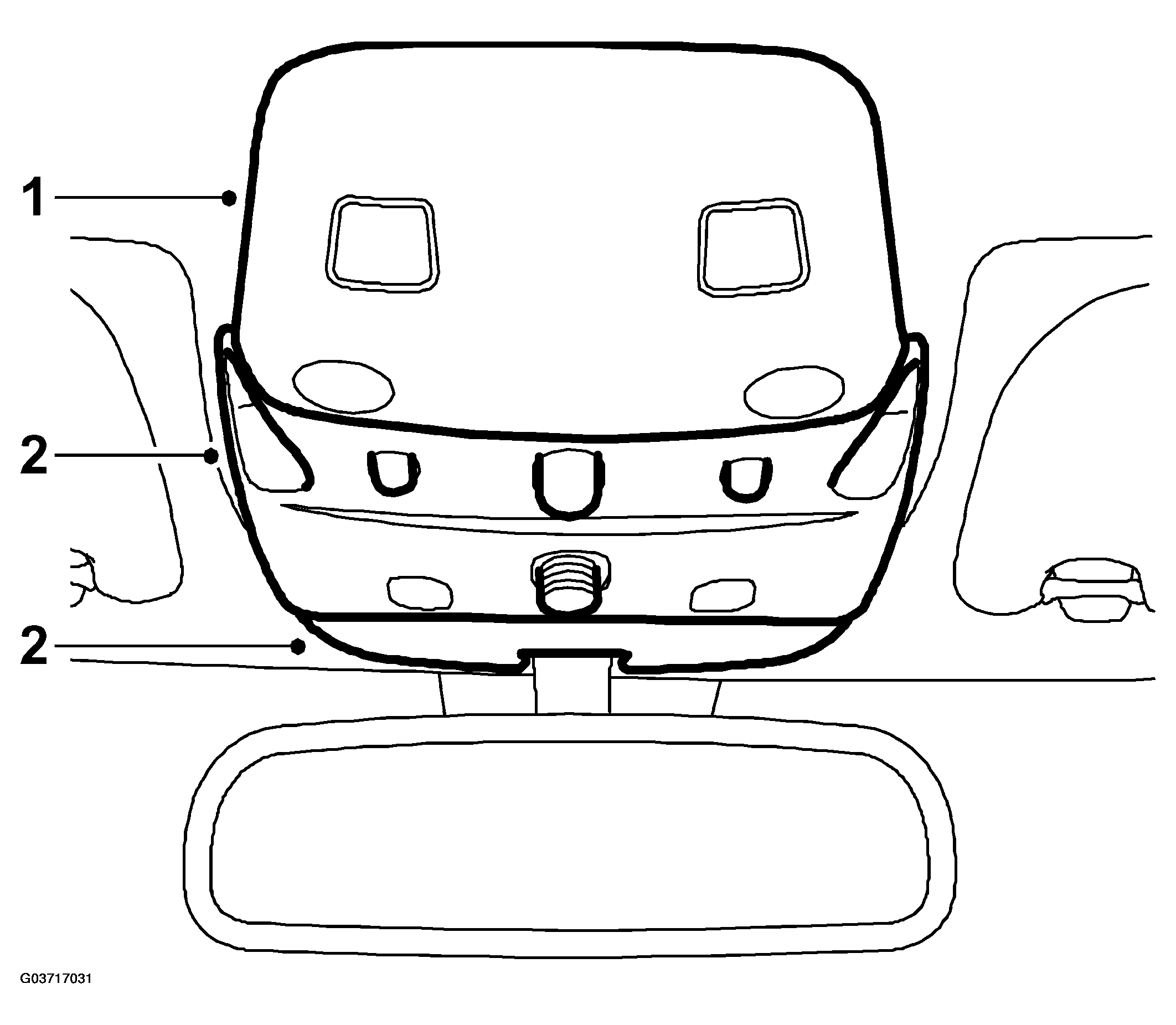

    Fig 1: Illustration For Steps 1-2
    G03717031Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the switch panel cover.
  3. Remove the microphone by releasing the clip with a screwdriver.

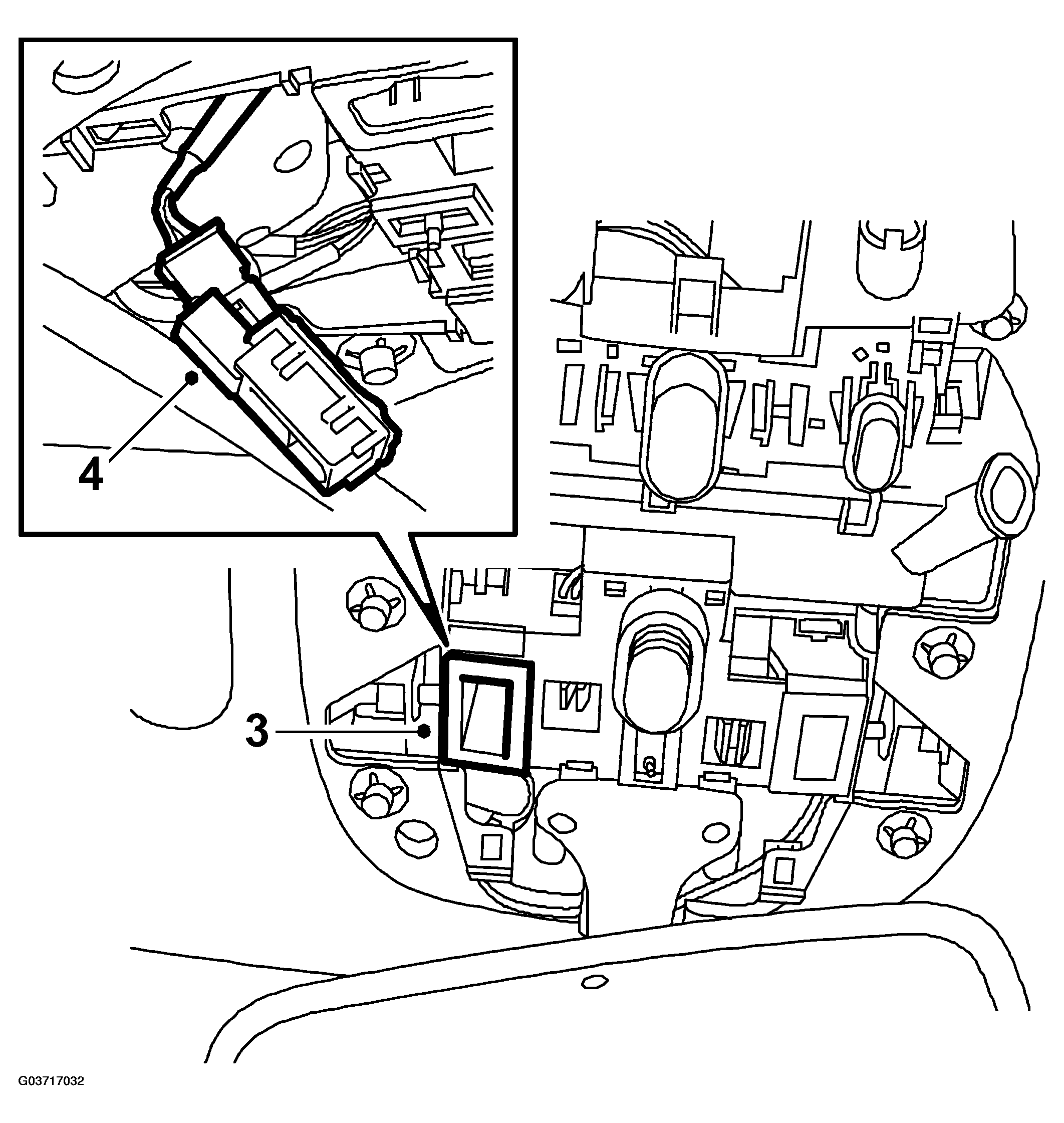

    Fig 2: Illustration For Steps 3-4
    G03717032Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector.
