Main instrument unit

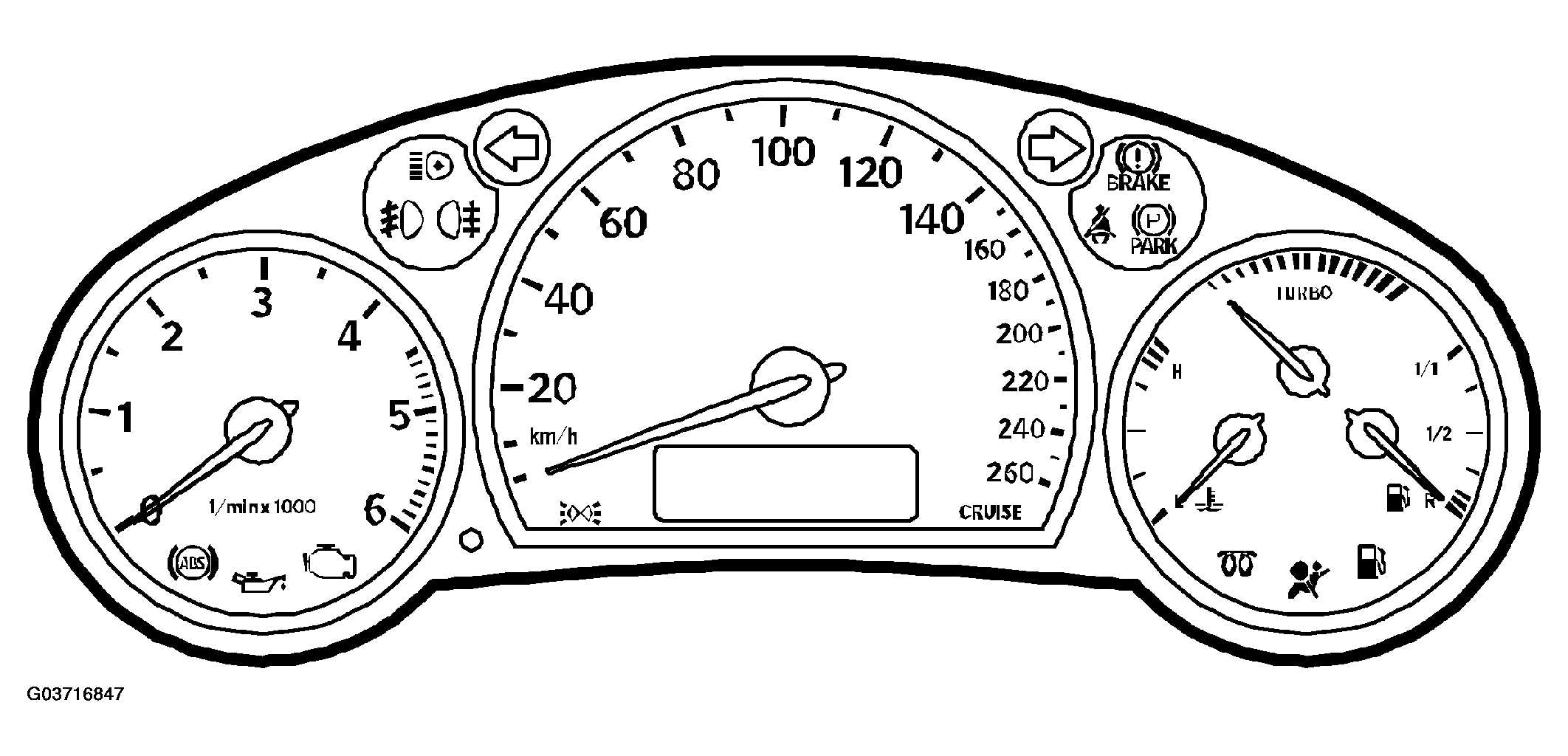

Fig 1: Identifying Main Instrument Unit
G03716847Courtesy of SAAB-SCANIA OF AMERICA, INC.
MAIN INSTRUMENT UNIT PINOUTS REFERENCE

Number of pins 12
Power supply +30 Pin No. 3
Power supply +15 Pin No. 2
Ground Pin No. 4
I-Bus Pin No. 7 & 8
