Check Engine lamp, faulty function: Notes

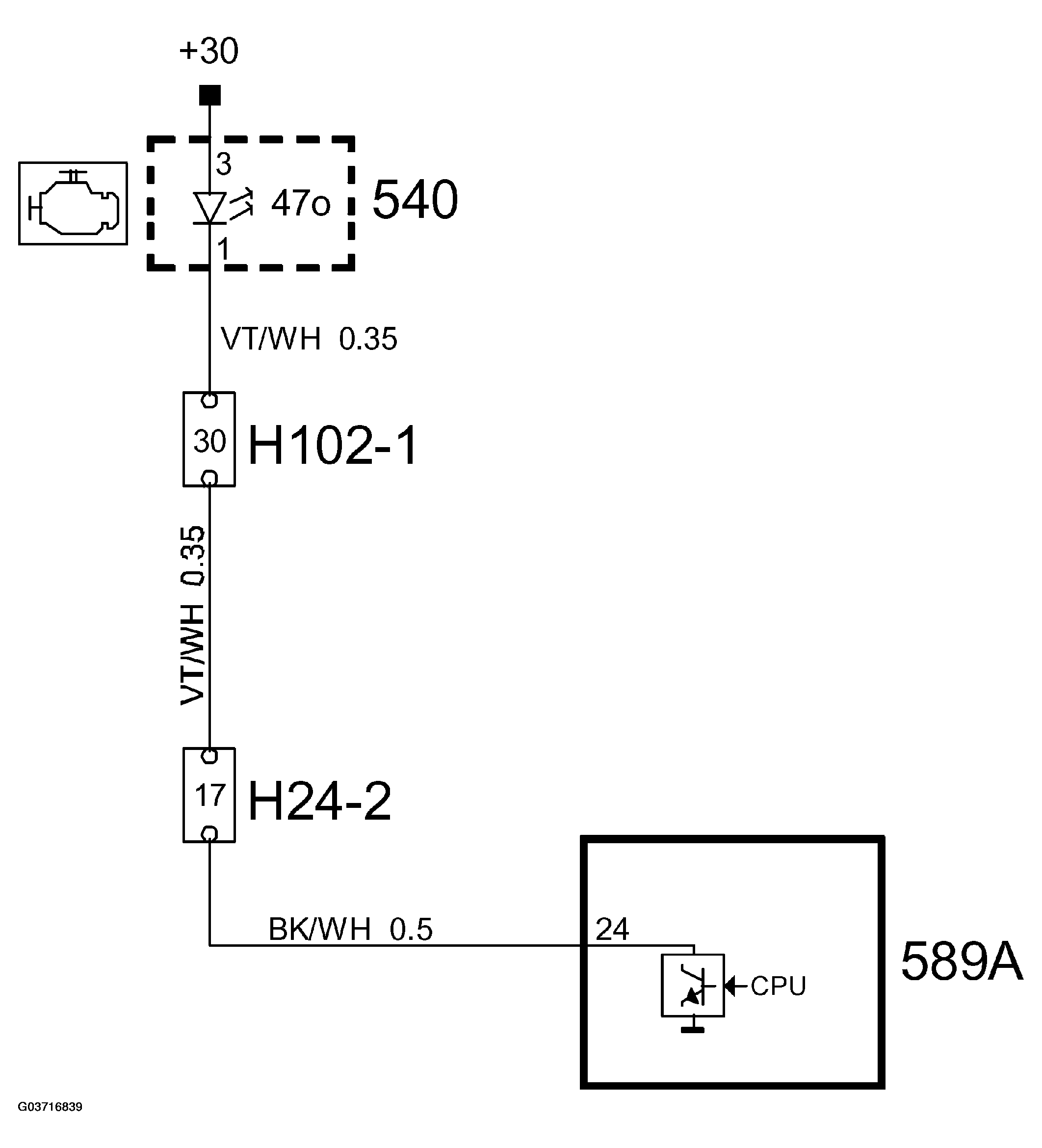

Fig 1: Circuit Diagram Of Engine Lamp

G03716839

Courtesy of SAAB-SCANIA OF AMERICA, INC.
