To remove

  1. Remove the speaker grille.

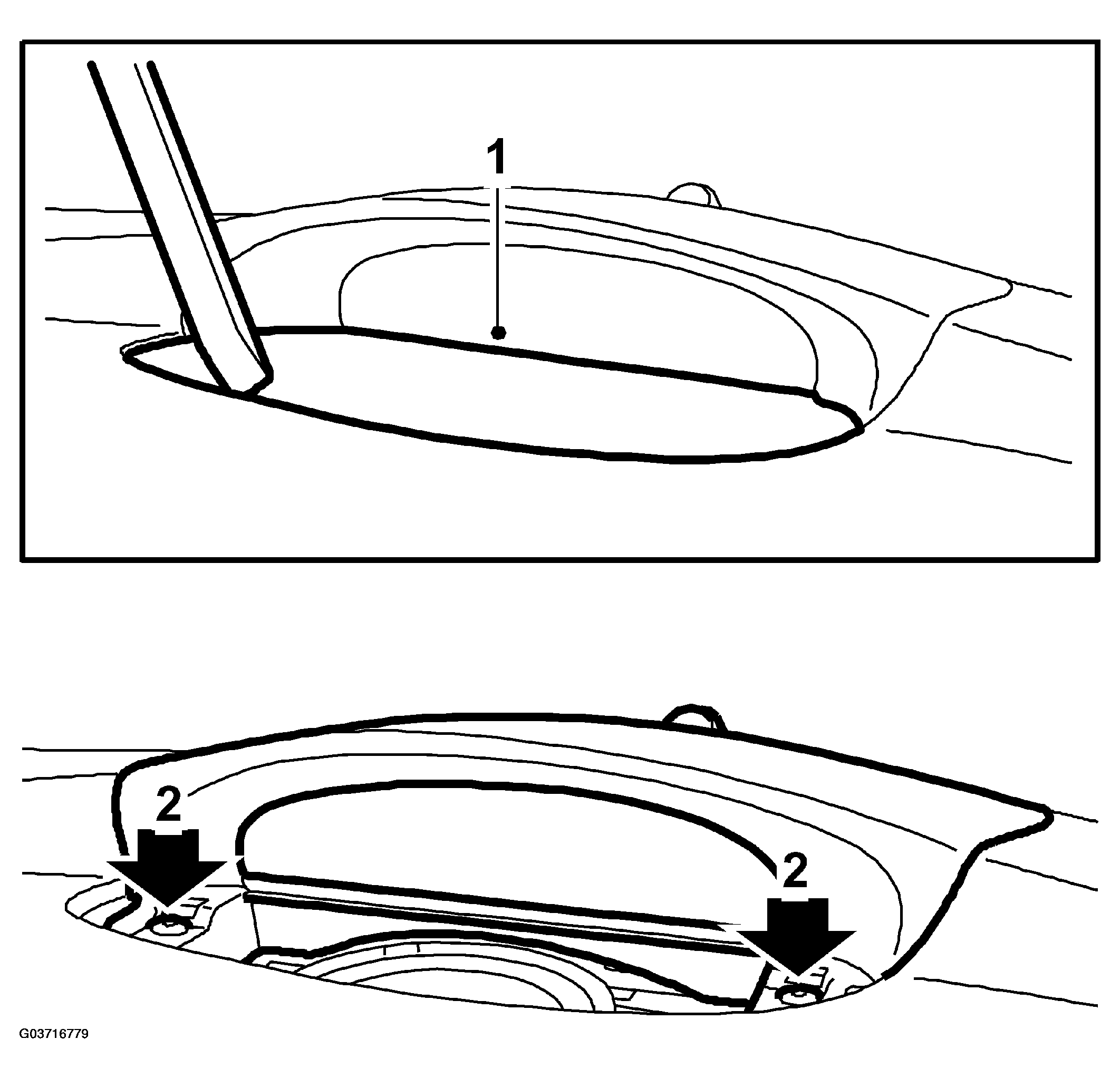

    Fig 1: Illustration For Steps 1-2
    G03716779Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screws.
  3. Lift out the SID unit and unplug the connector.

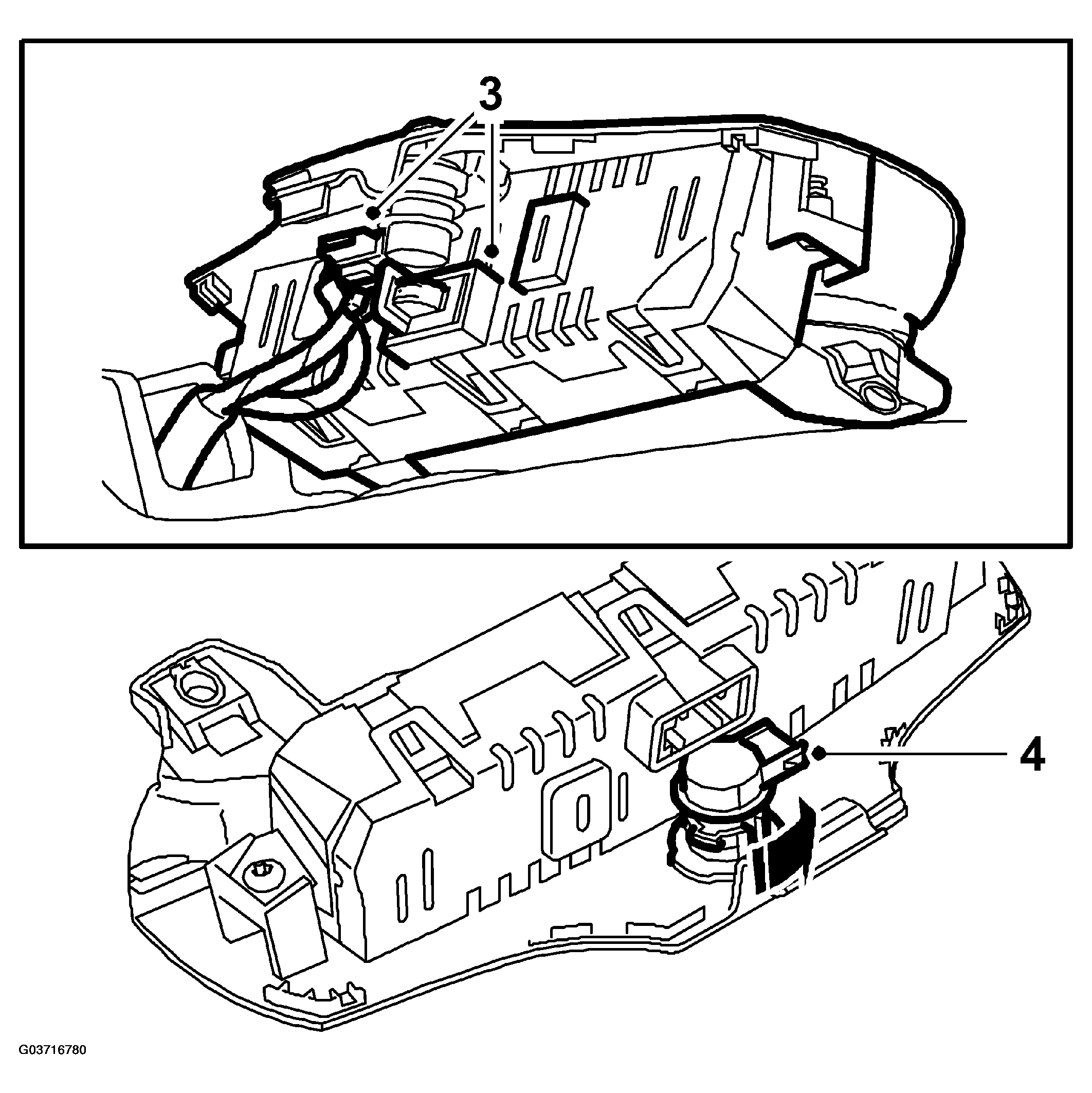

    Fig 2: Illustration For Steps 3-4
    G03716780Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the solar sensor from the cover.
