Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Driver Info, Main Instrument Panel, SID >> Adjustment/Replacement >> Solar sensor >> To fit

To fit

  1. Fit the solar sensor to the cover.

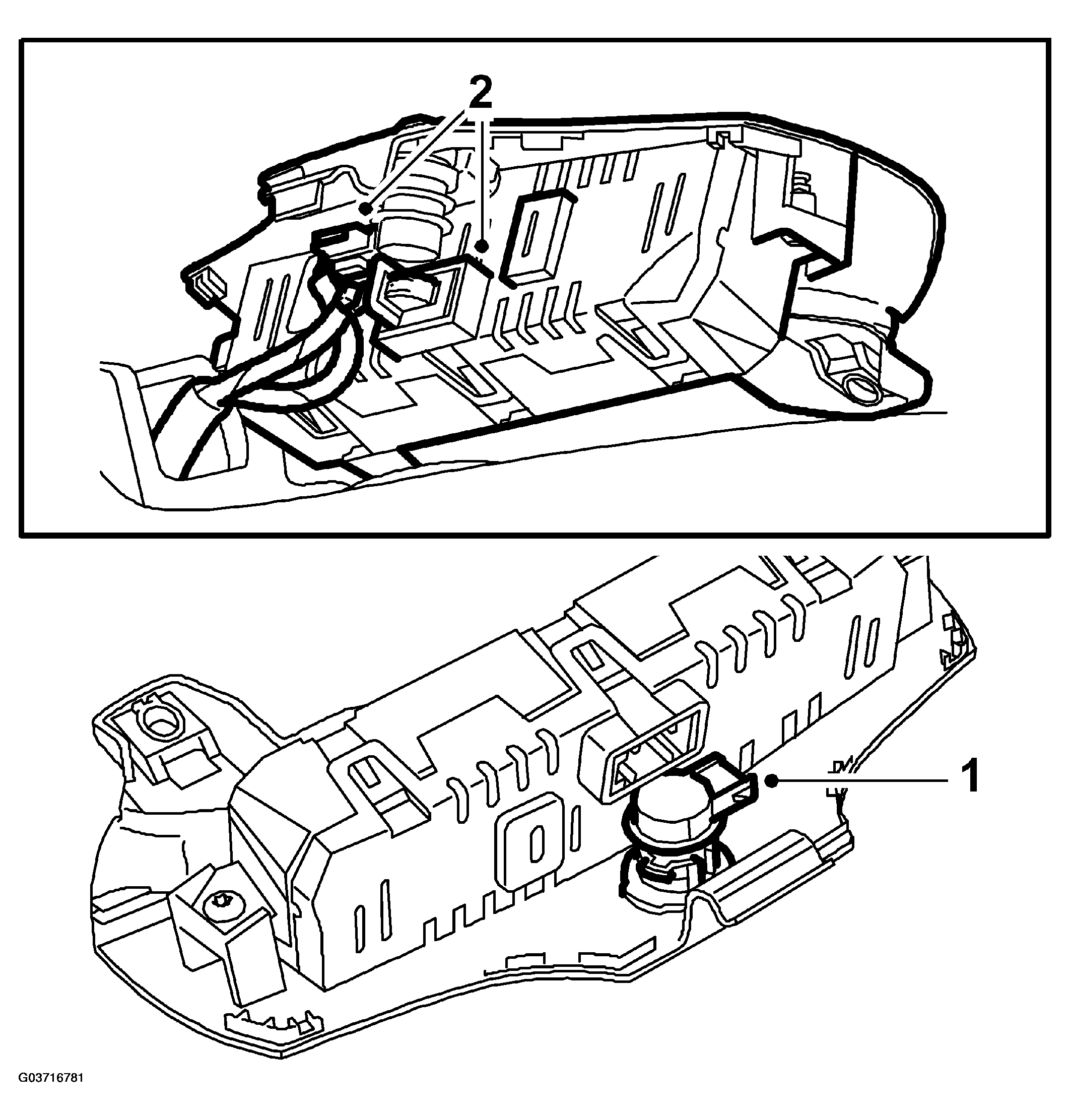

    Fig 1: Illustration For Steps 1-2
    G03716781Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Fit the SID unit.

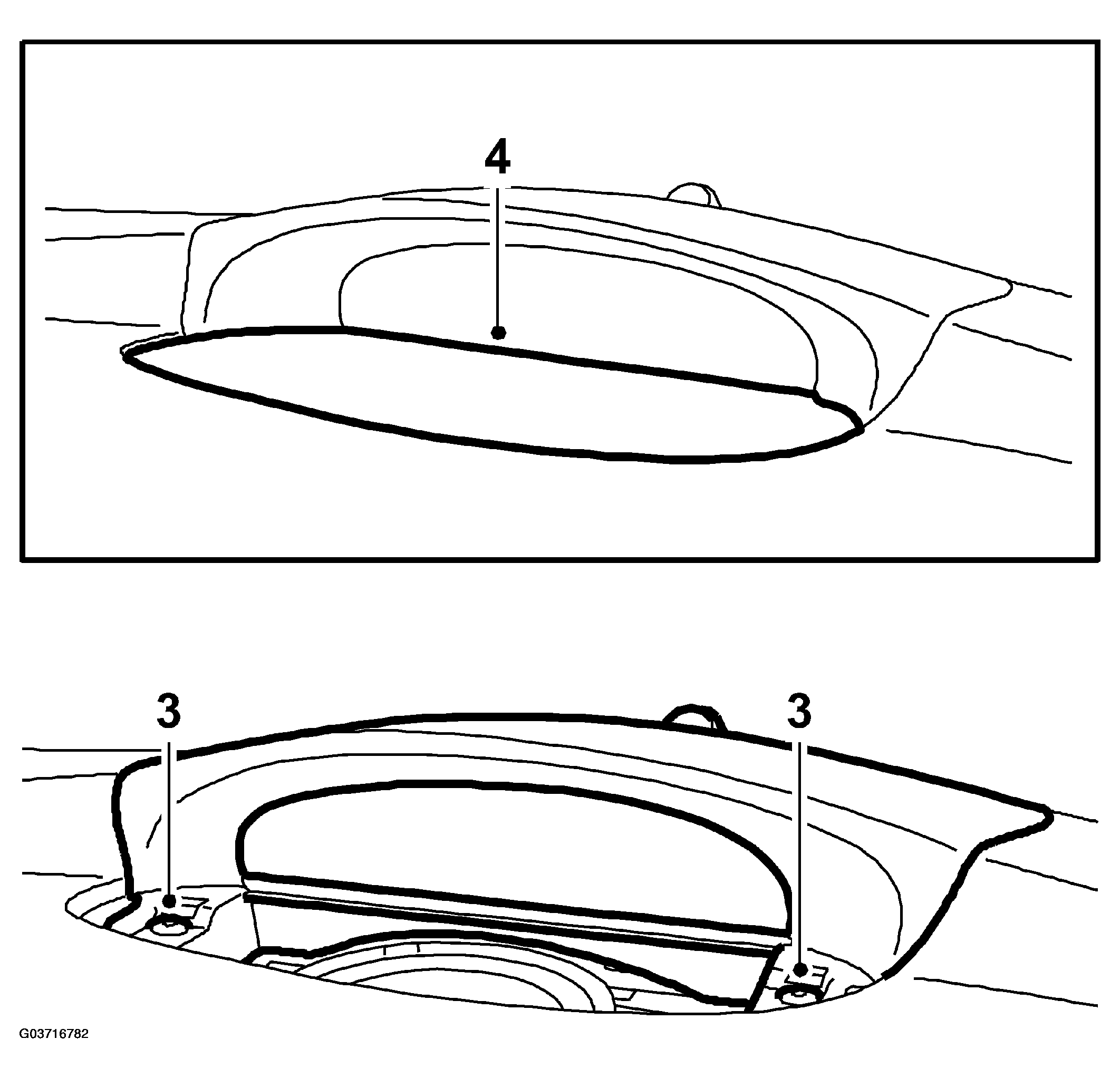

    Fig 2: Illustration For Steps 3-4
    G03716782Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the speaker grille.
