Generator (2): Connection

CONNECTION DESCRIPTION

Pin No.	Signal type	Description
B+		To the battery
L	Diagnostics/start pulse	Data link and start pulse from engine control module
F		To Trionic

Generator, 4-cyl diesel

NOTE: Also see STARTING/CHARGING wiring diagrams.

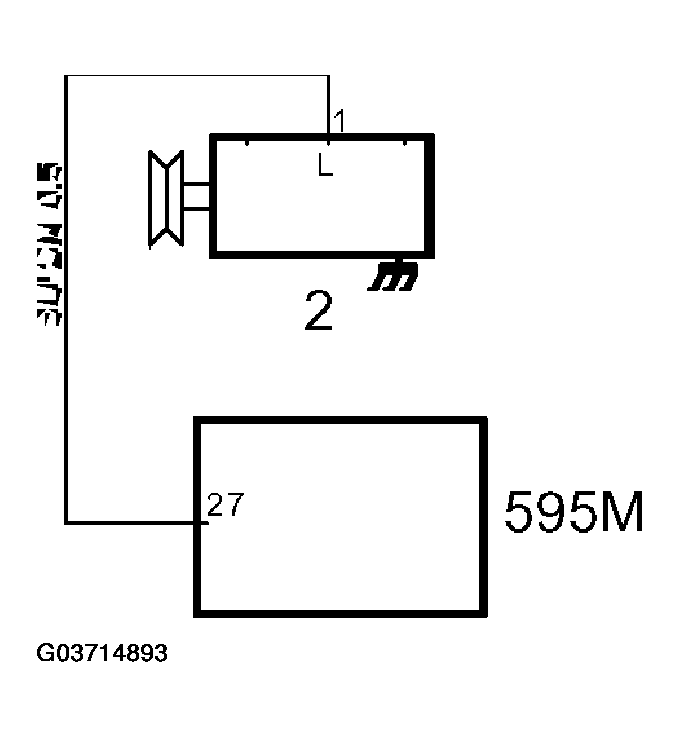

Fig 1: Generator (4-Cyl Diesel) Circuit Diagram

G03714893

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Generator, 4-cyl petrol

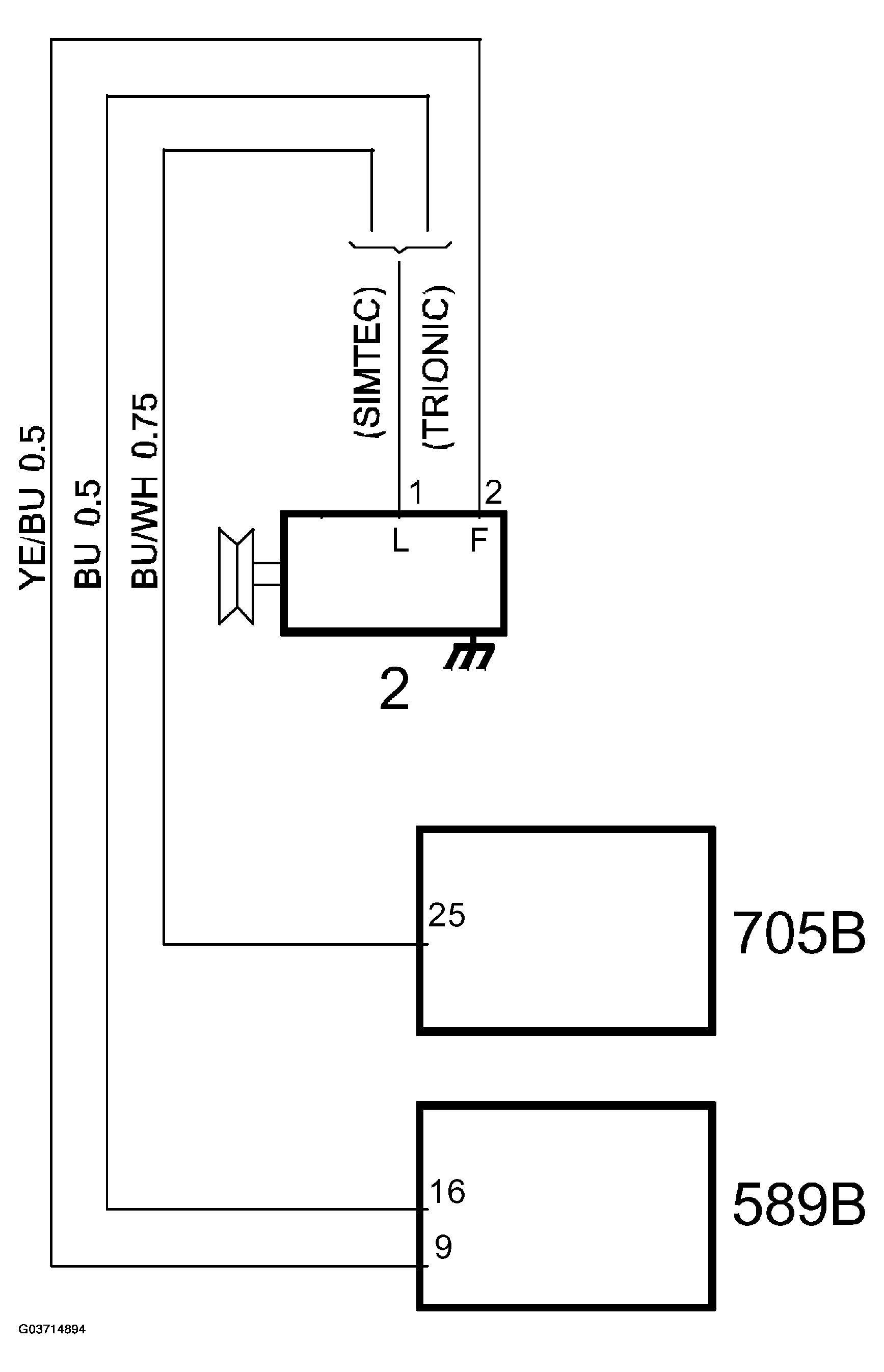

Fig 2: Generator (4-Cyl Petrol) Circuit Diagram

G03714894

Courtesy of SAAB-SCANIA OF AMERICA, INC.
