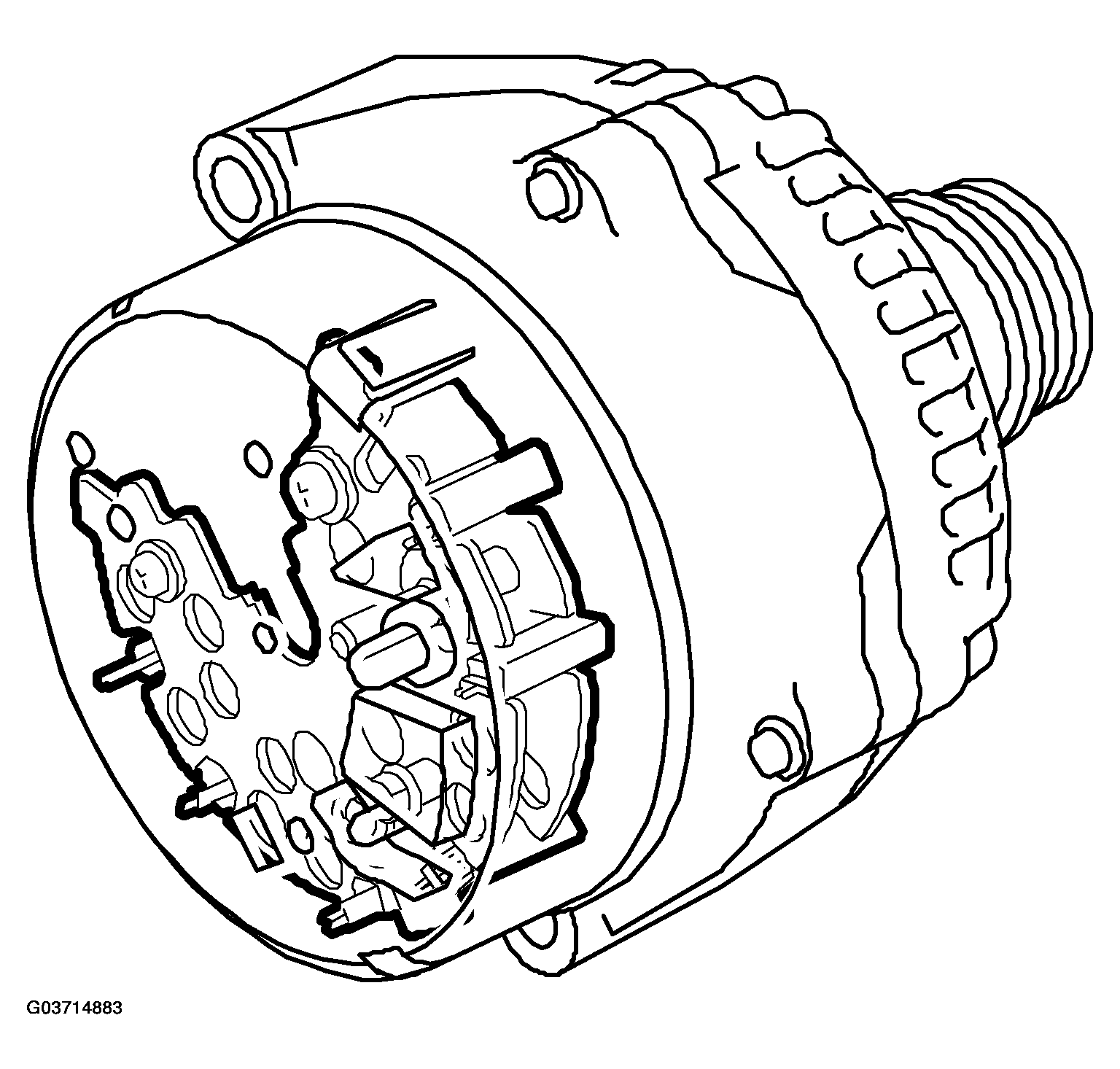

Detailed description: Rectifier
The current produced by the generator's stator winding must be converted to direct current before it can be used in the car's electrical system. The current is converted by means of 6 Zener diodes, 2 per phase winding.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
