Battery, 70Ah

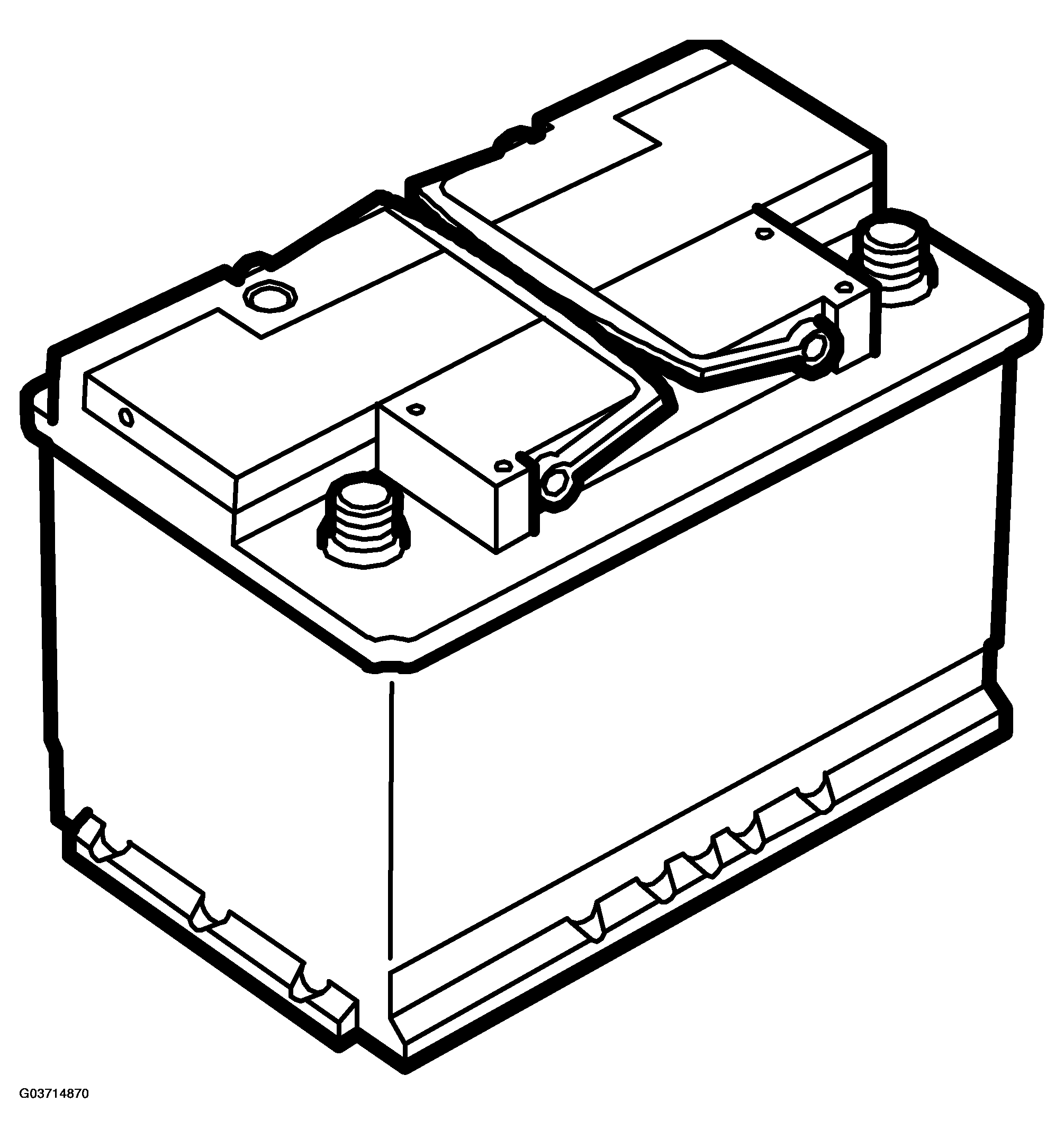

Fig 1: Identifying Battery (70Ah)
G03714870Courtesy of SAAB-SCANIA OF AMERICA, INC.
BATTERY DESCRIPTION

Type designation Exide 127 99 752
Voltage 12 V
Capacity 70 Ah
Grounding Negative
Specific gravity of electrolyte:
When recharging advisable 1,21
When battery fully charged 1,28
Starting current: 700 A
