Battery, 60Ah

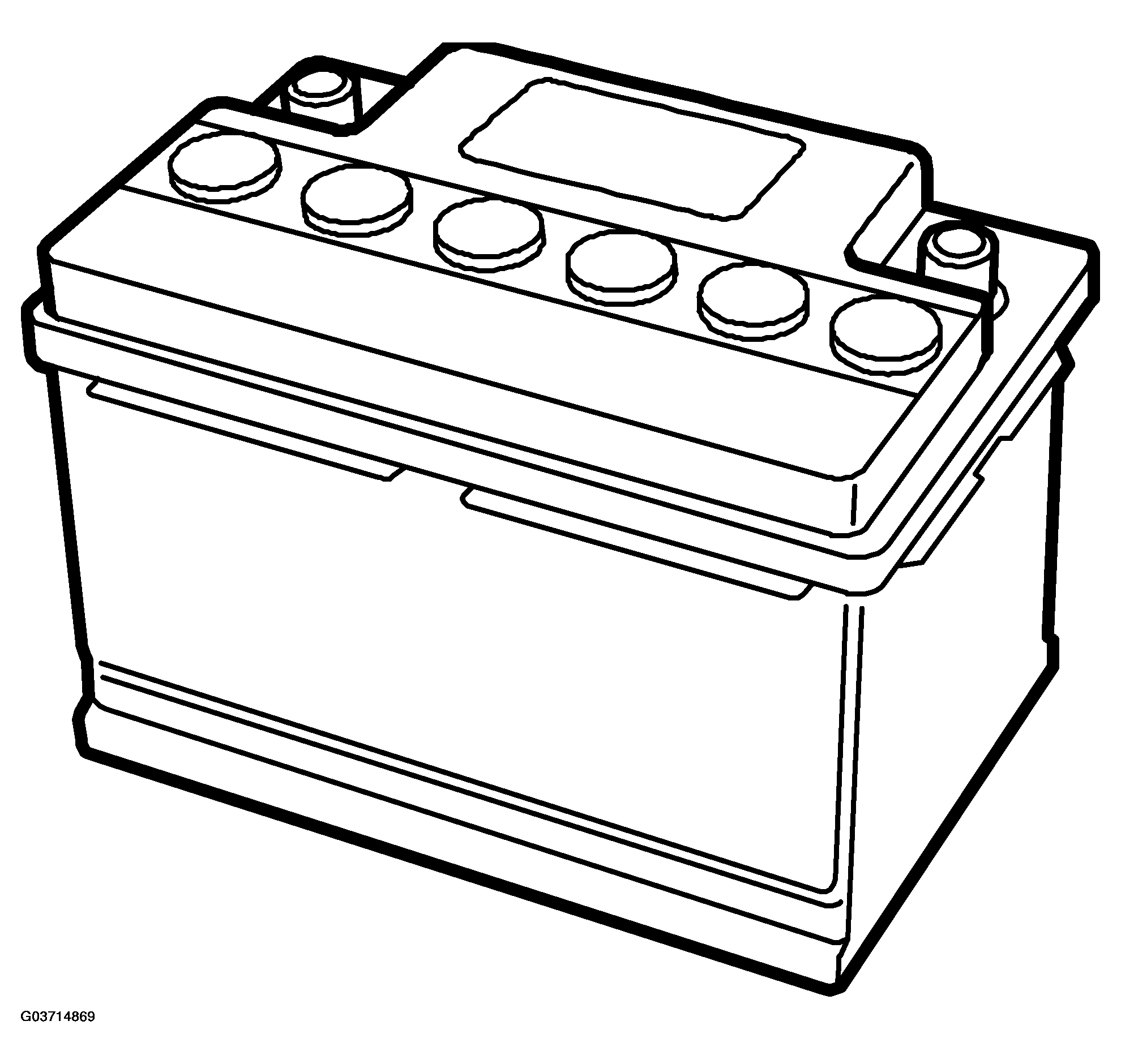

Fig 1: Identifying Battery (60Ah)
G03714869Courtesy of SAAB-SCANIA OF AMERICA, INC.
BATTERY DESCRIPTION

Type designation Exide 127 93 955
Voltage 12 V
Capacity 60 Ah
Grounding Negative
Specific gravity of electrolyte:
When recharging advisable 1.21
When battery fully charged 1.28
Starting current: 580 A
