To remove

In the method described below, the generator has already been removed.

1. Remove the generator, see GENERATOR, REMOVE AND INSTALL, Z18XE .
2. Remove the guard:

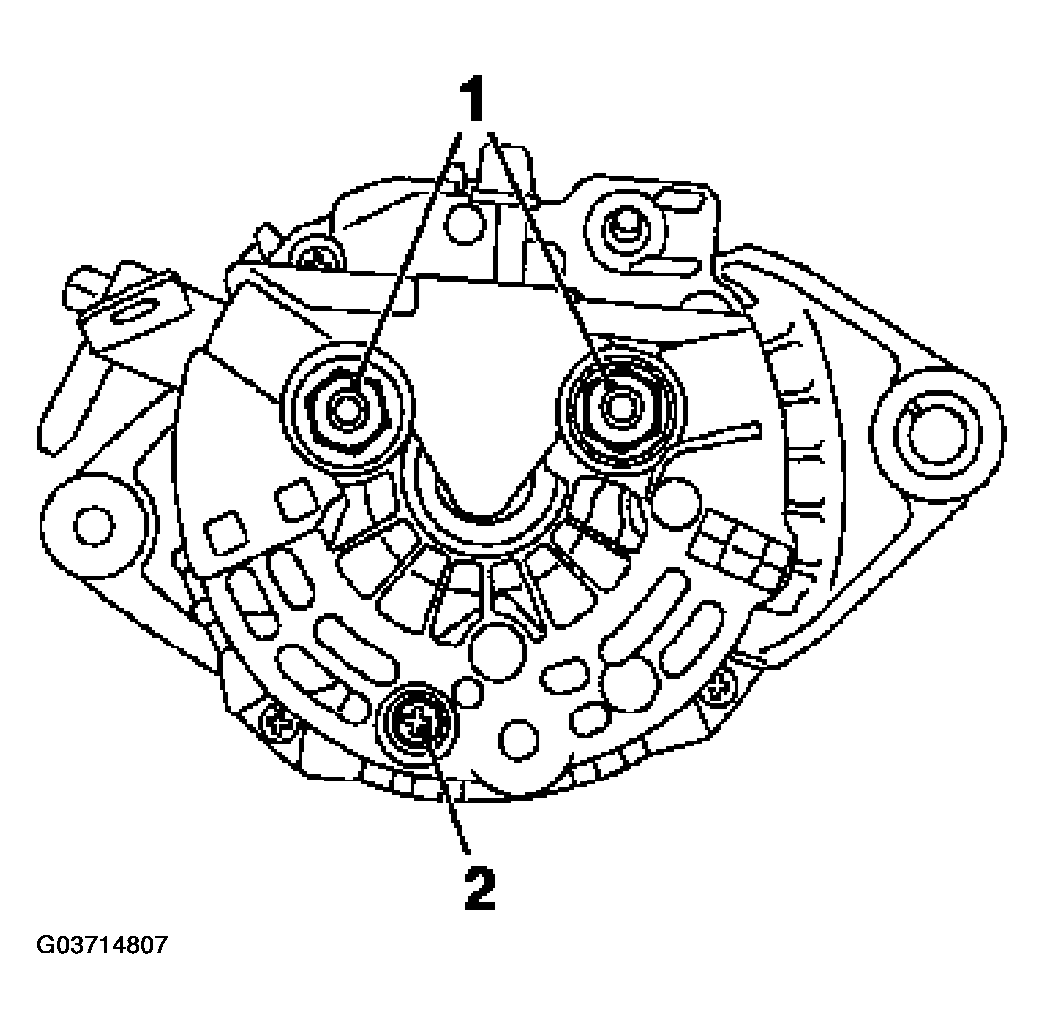

   Fig 1: Illustration For Step 1-2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   • Undo the bolts (1, 2)
   • Pull off the guard
3. Remove the regulator:

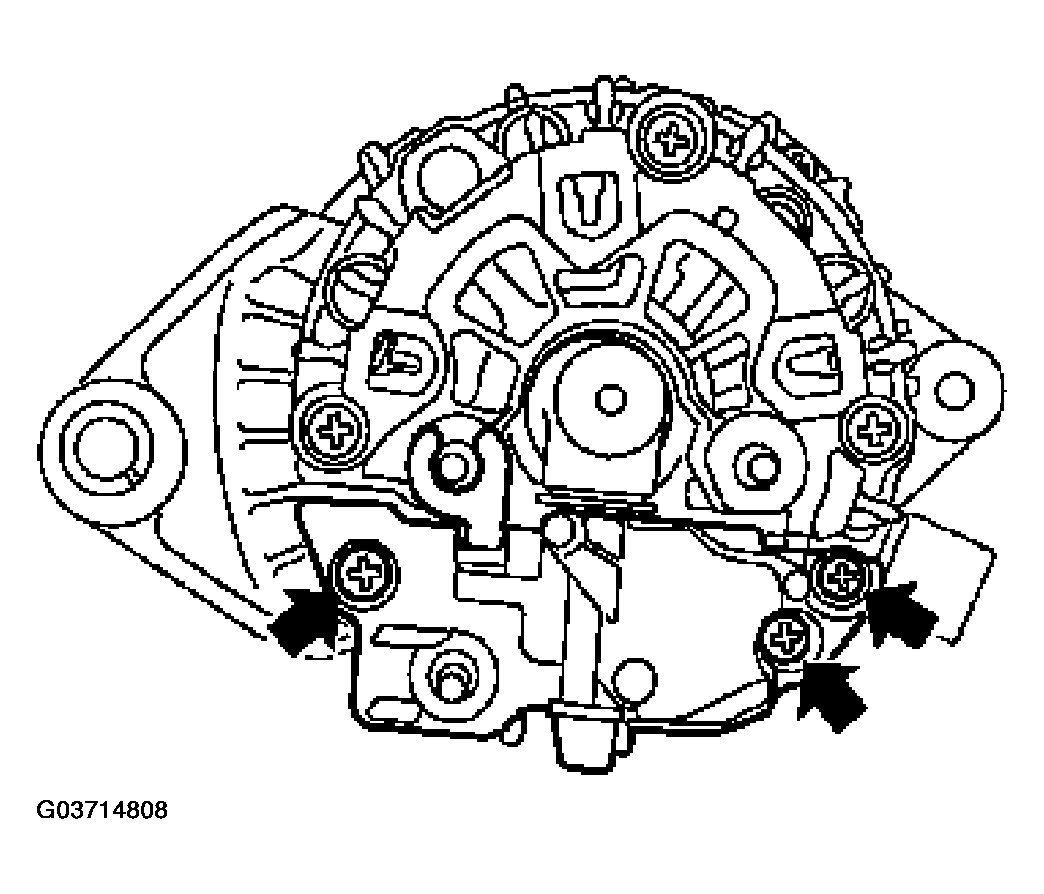

   Fig 2: Removing Regulator

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   • Undo the bolts (arrows)
