Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System (Late; 9440) >> Adjustment / Replacement >> Battery >> To remove

To remove

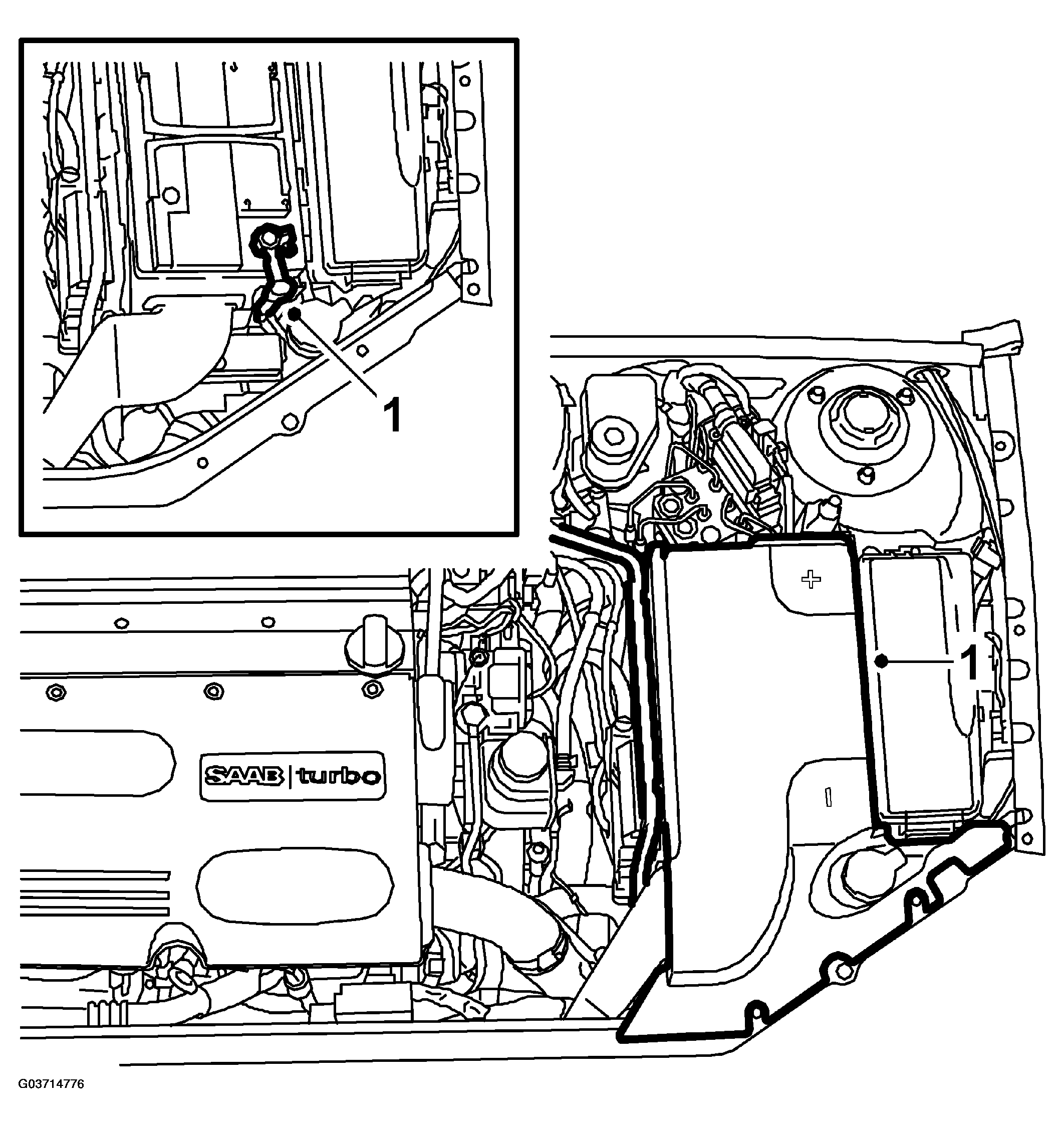

  1. Remove the battery cover and disconnect the negative battery cable.
    Fig 1: Illustration For Step 1
    G03714776Courtesy of SAAB-SCANIA OF AMERICA, INC.

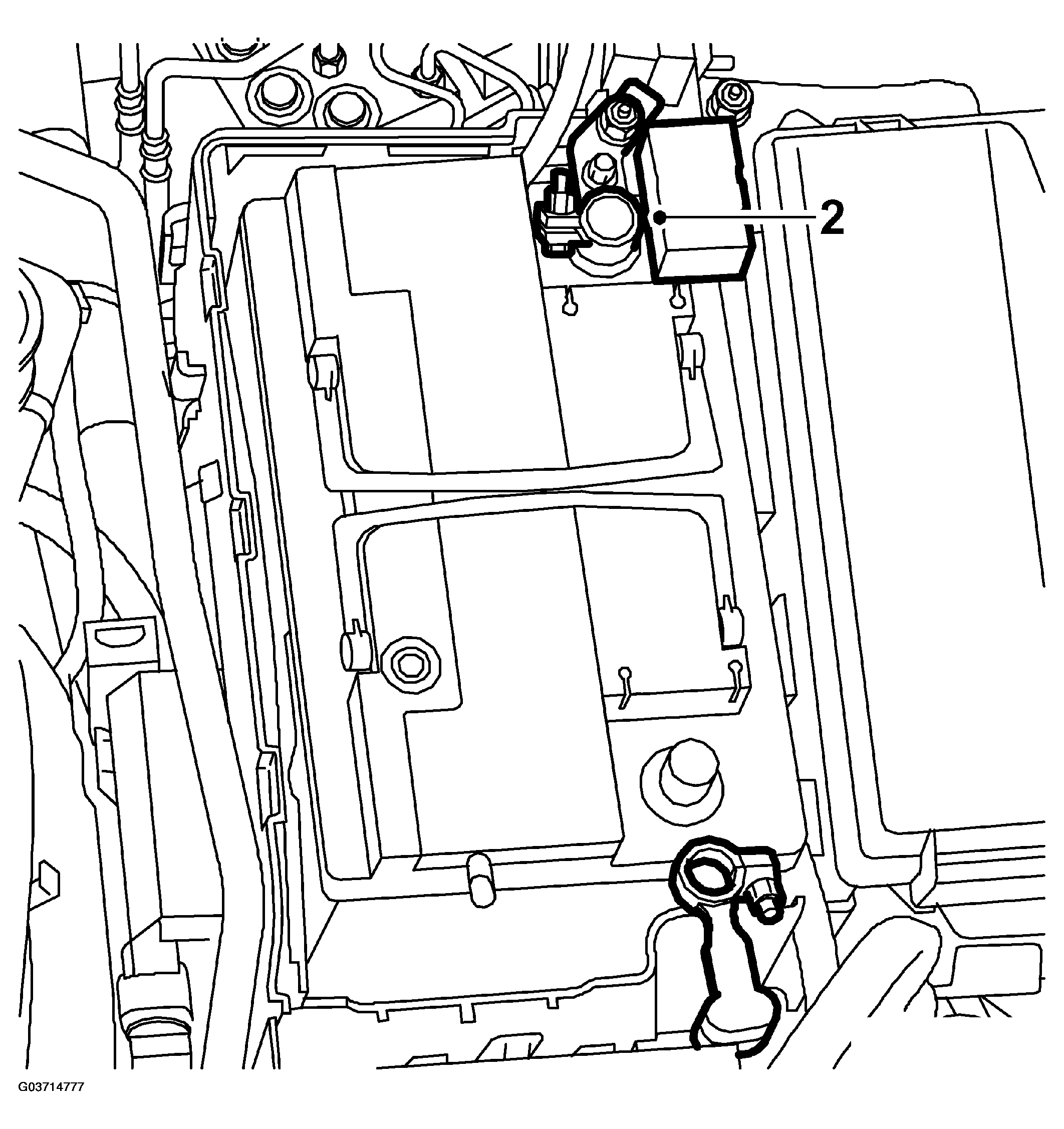

  2. Disconnect the positive cable of the battery.
    Fig 2: Illustration For Step 2
    G03714777Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the battery drain hose.

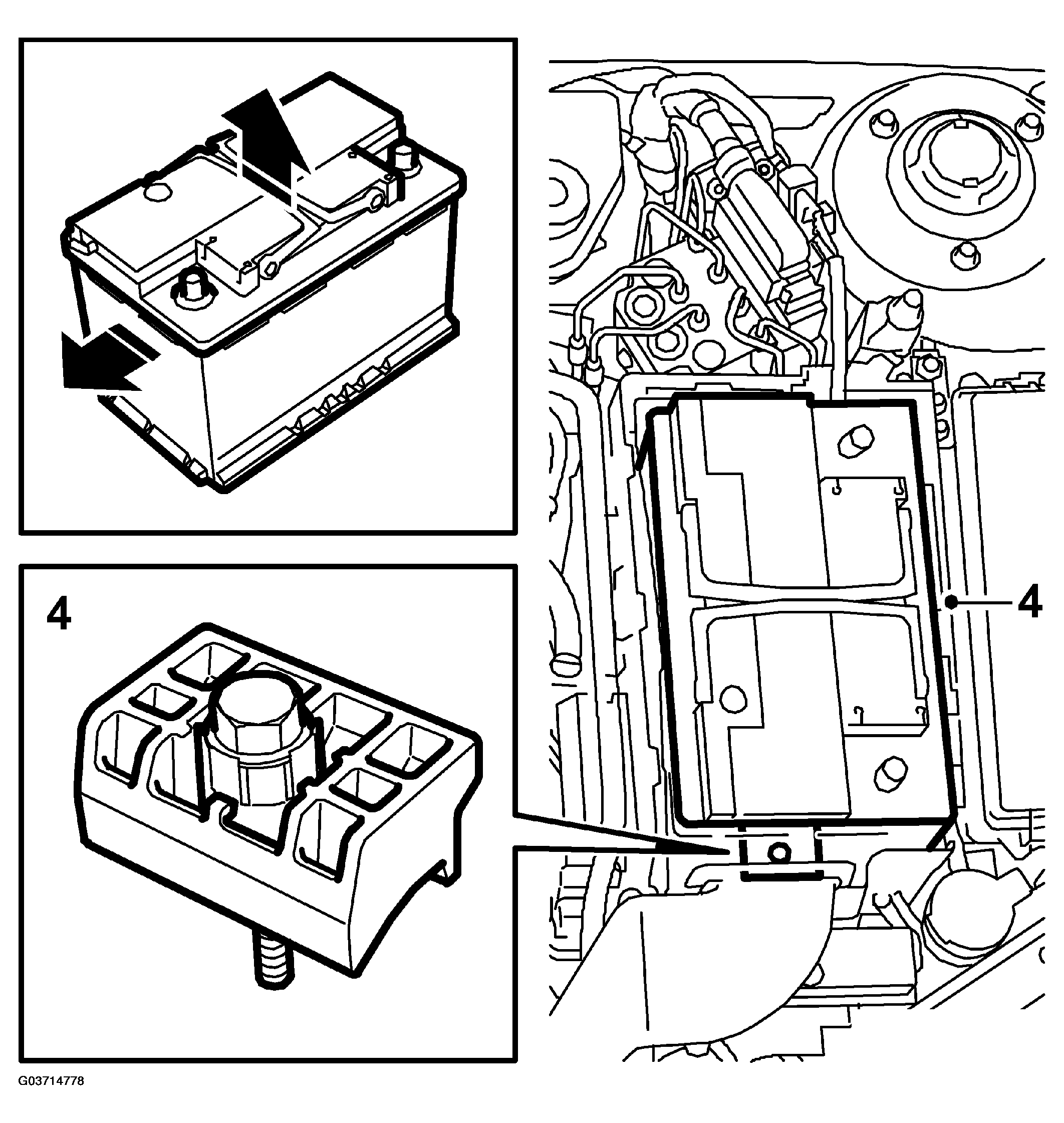

  4. Undo the screw in the battery lock lug and lift out the battery.
    Fig 3: Illustration For Step 4
    G03714778Courtesy of SAAB-SCANIA OF AMERICA, INC.
