Radiator fan relay unit (706b), Z18XE: Notes

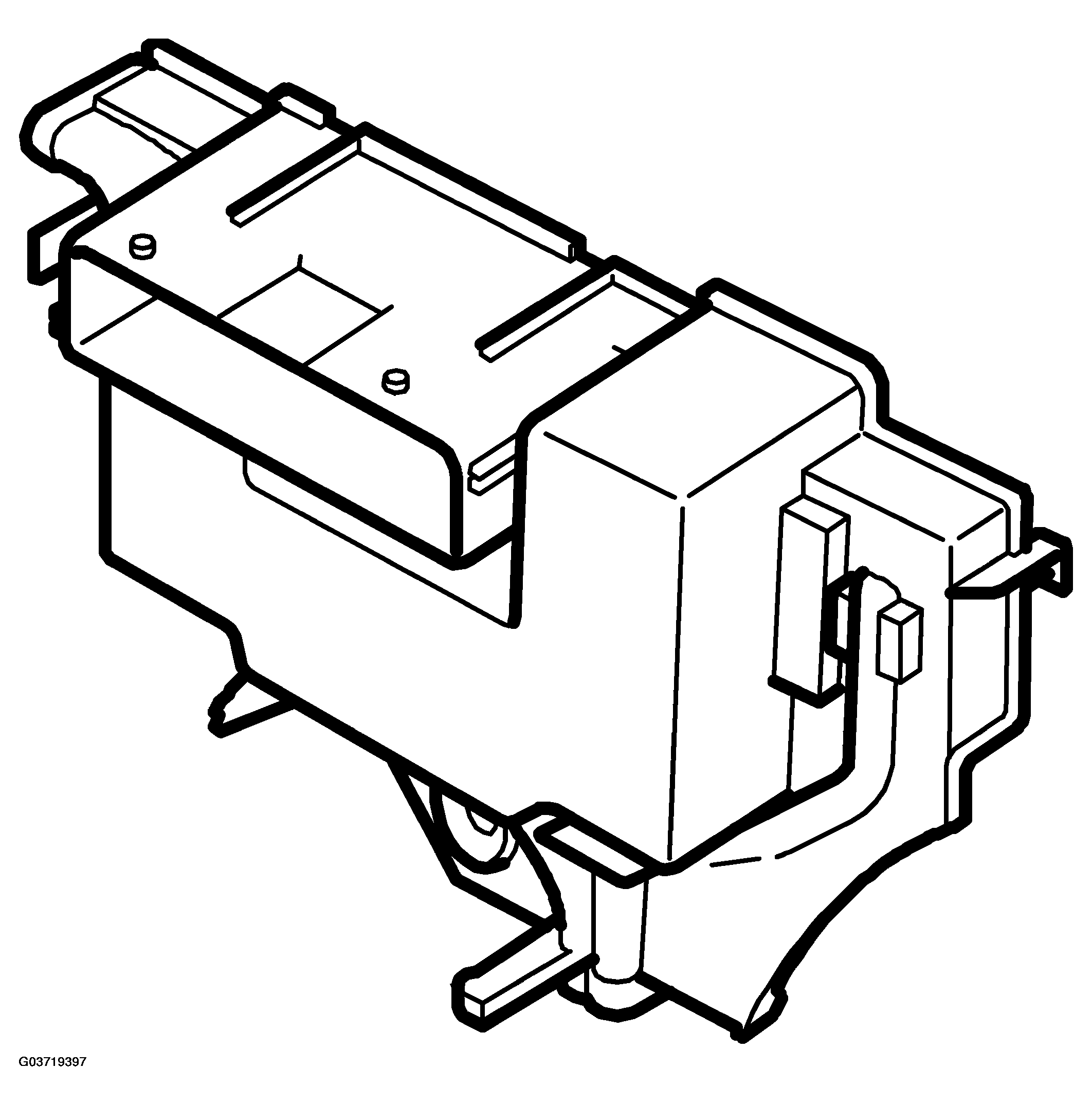

Fig 1: Identifying Radiator Fan Relay Unit

G03719397

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SUPPLY VOLTAGE SPECIFICATION

Supply voltage	12V
Maximum current take-off	30 A
