Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Control Module >> Component Location >> Control module, window lift, rear, RH (575RR) >> Location >> J2

Control module, window lift, rear, RH (575RR): Location: J2

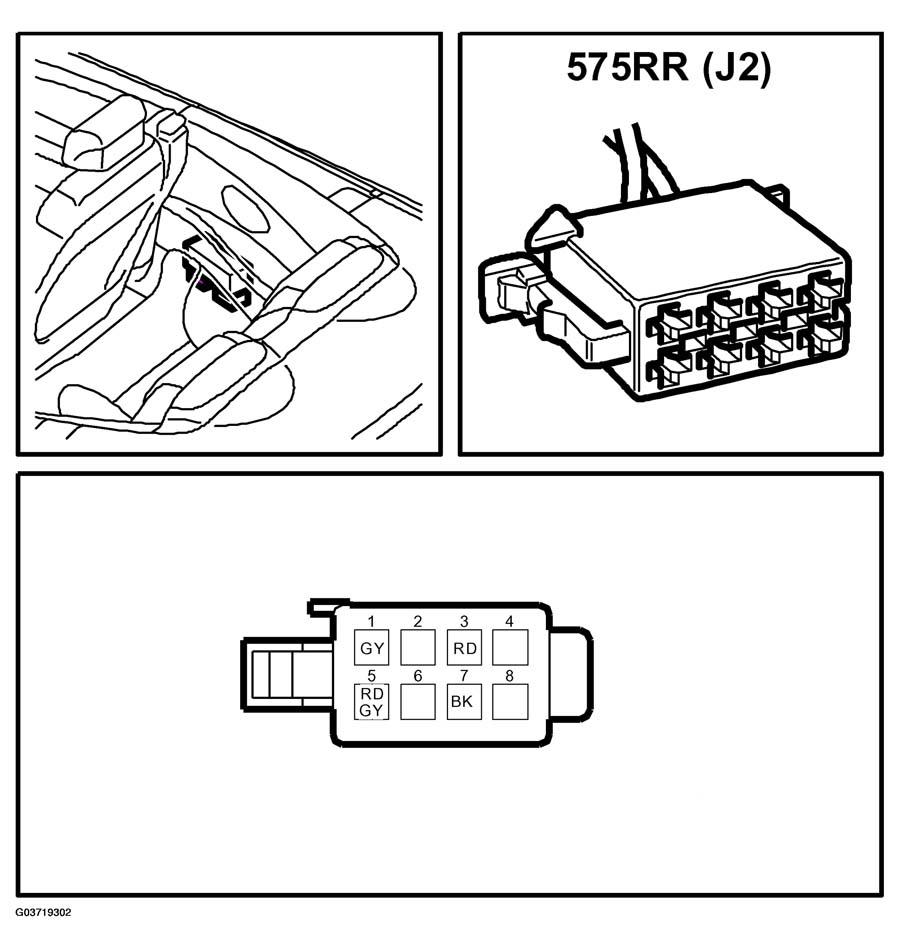

Fig 1: Identifying Control Module Window Lift, Rear, Rh (575RR) J2 Connector Pinouts

G03719302

Courtesy of SAAB-SCANIA OF AMERICA, INC.
