Crimp J36, engine harness, Trionic: Location:

Approx. 110 mm from branching of engine control module switch A towards the ignition coils

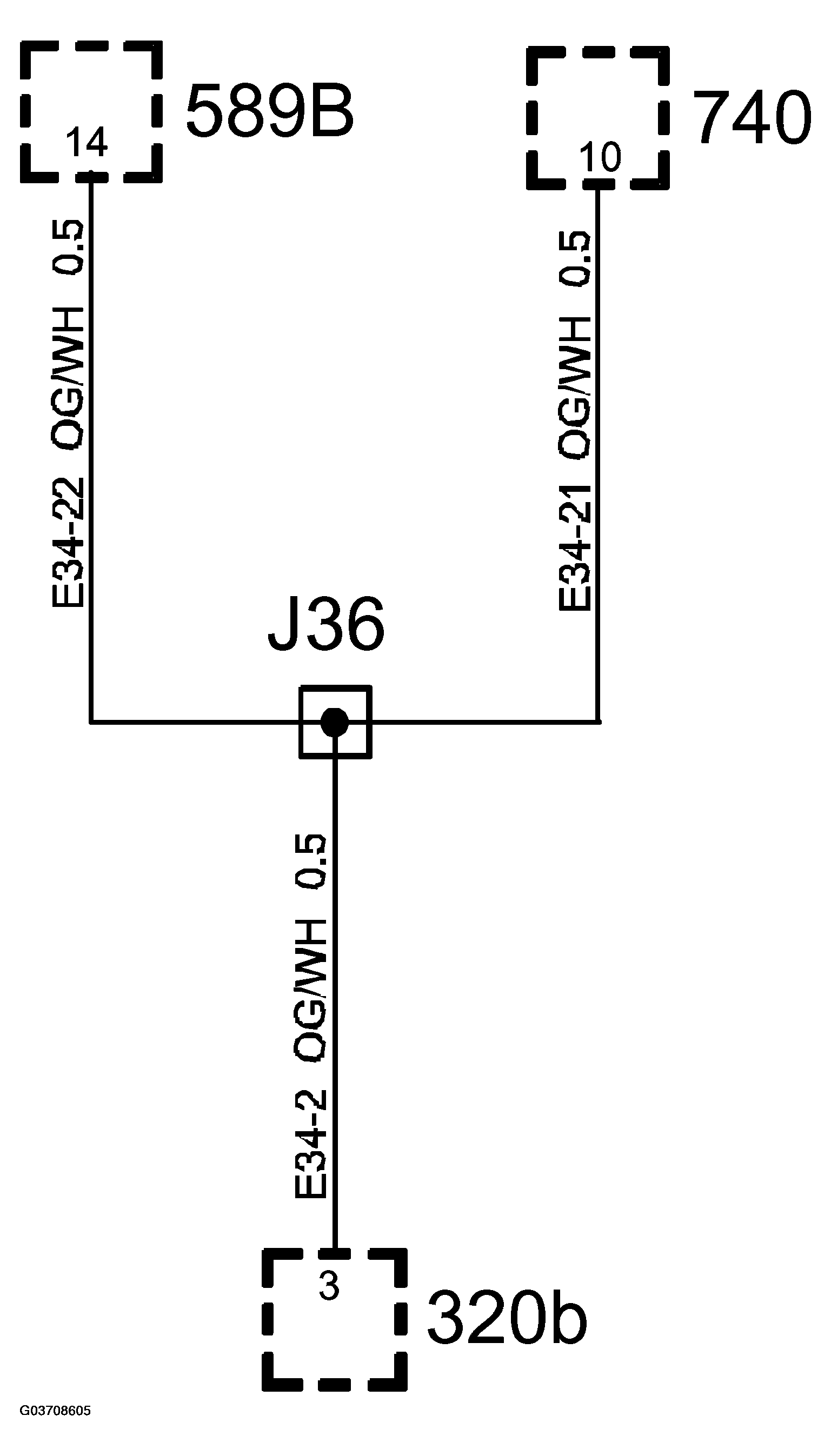

Fig 1: Crimp J36 Engine Harness Trionic Wiring Diagram
G03708605Courtesy of SAAB-SCANIA OF AMERICA, INC.
