Level sensor, fuel (46), Simtec: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
2	Signal	The pin is supplied with 5 V via ECM internal resistor. Connected to ECM pin 57(B).
3	Ground	Sensor's ground. Connected to ECM pin 34(B).

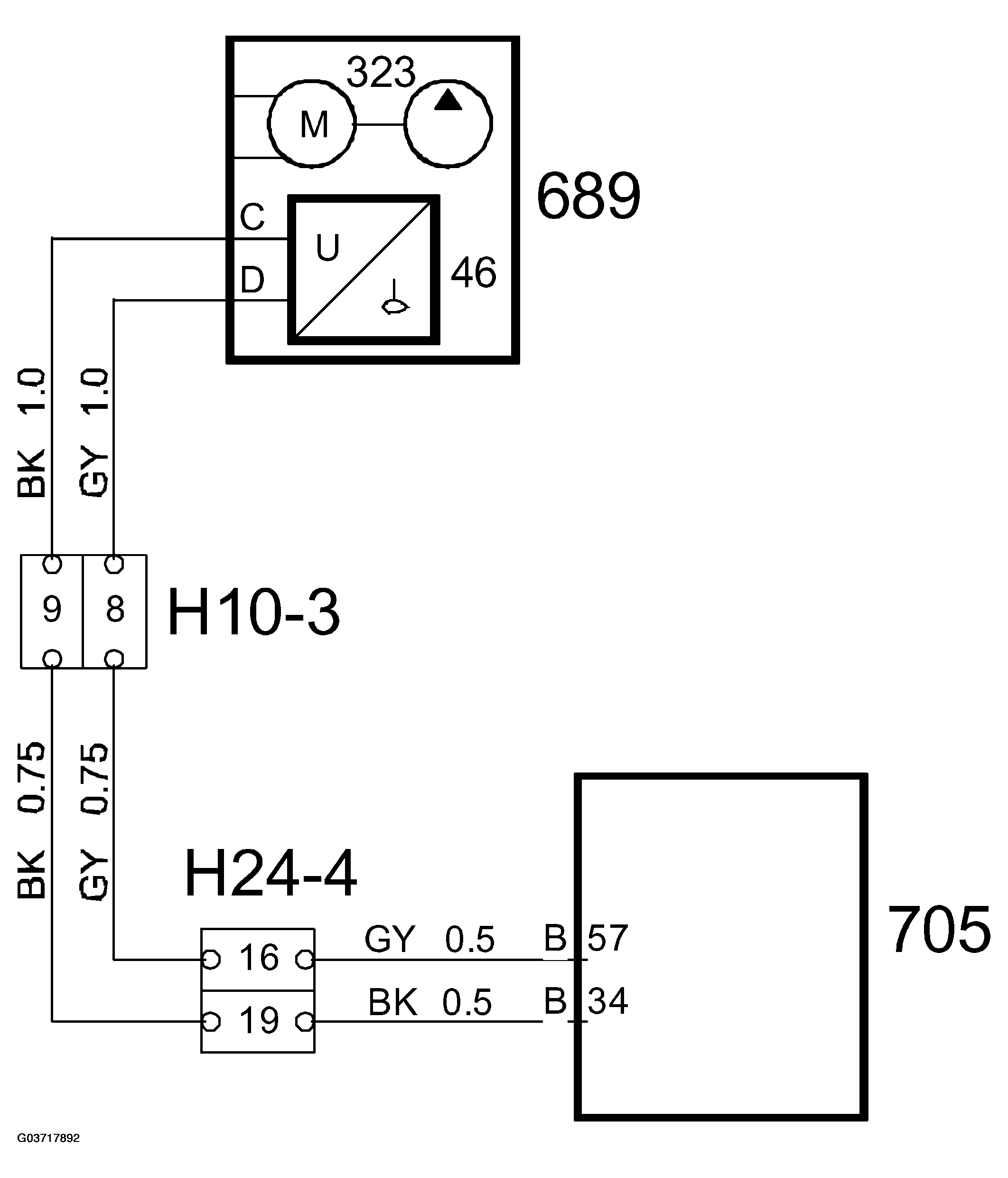

Fig 1: Circuit Diagram - Fuel Level Sensor (Simtec)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
