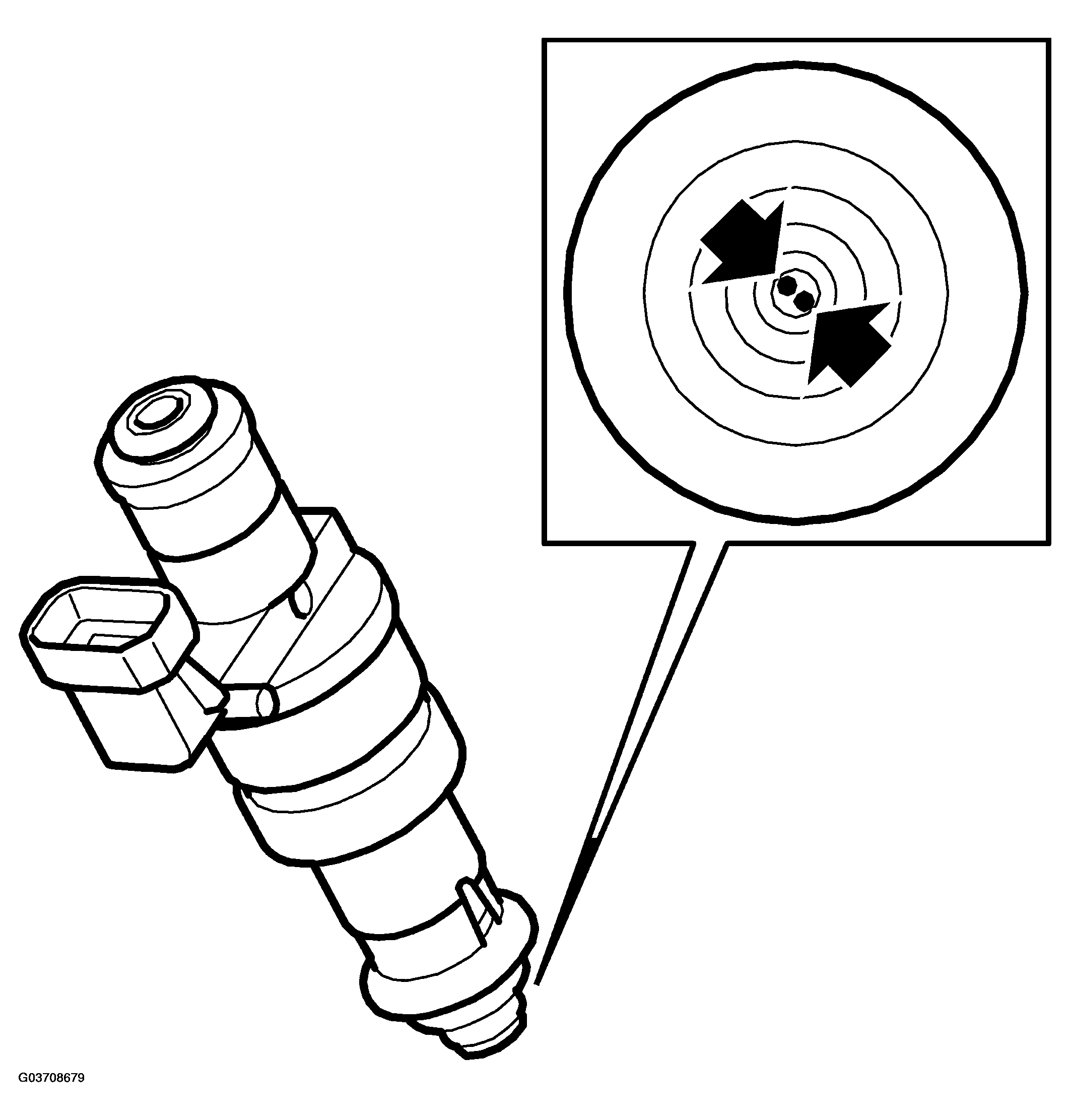

Injectors (206), T8
Courtesy of SAAB-SCANIA OF AMERICA, INC. INJECTORS T8 TECHNICAL DATA
| Engine type |
|
B207E, B207L |
B207R |
| Type |
|
Siemens, color blue |
Siemens, color green |
| Style |
|
2 hole |
2 hole |
| Resistance |
Ohm |
12 |
12 |
| Flow capacity |
ml/ 30 s |
134 +/-5 |
176 +/-7 |
| Maximum permitted difference between injectors |
ml/ 30 s |
10 |
14 |
