Fuse 4, electrical center engine bay 342: Trionic

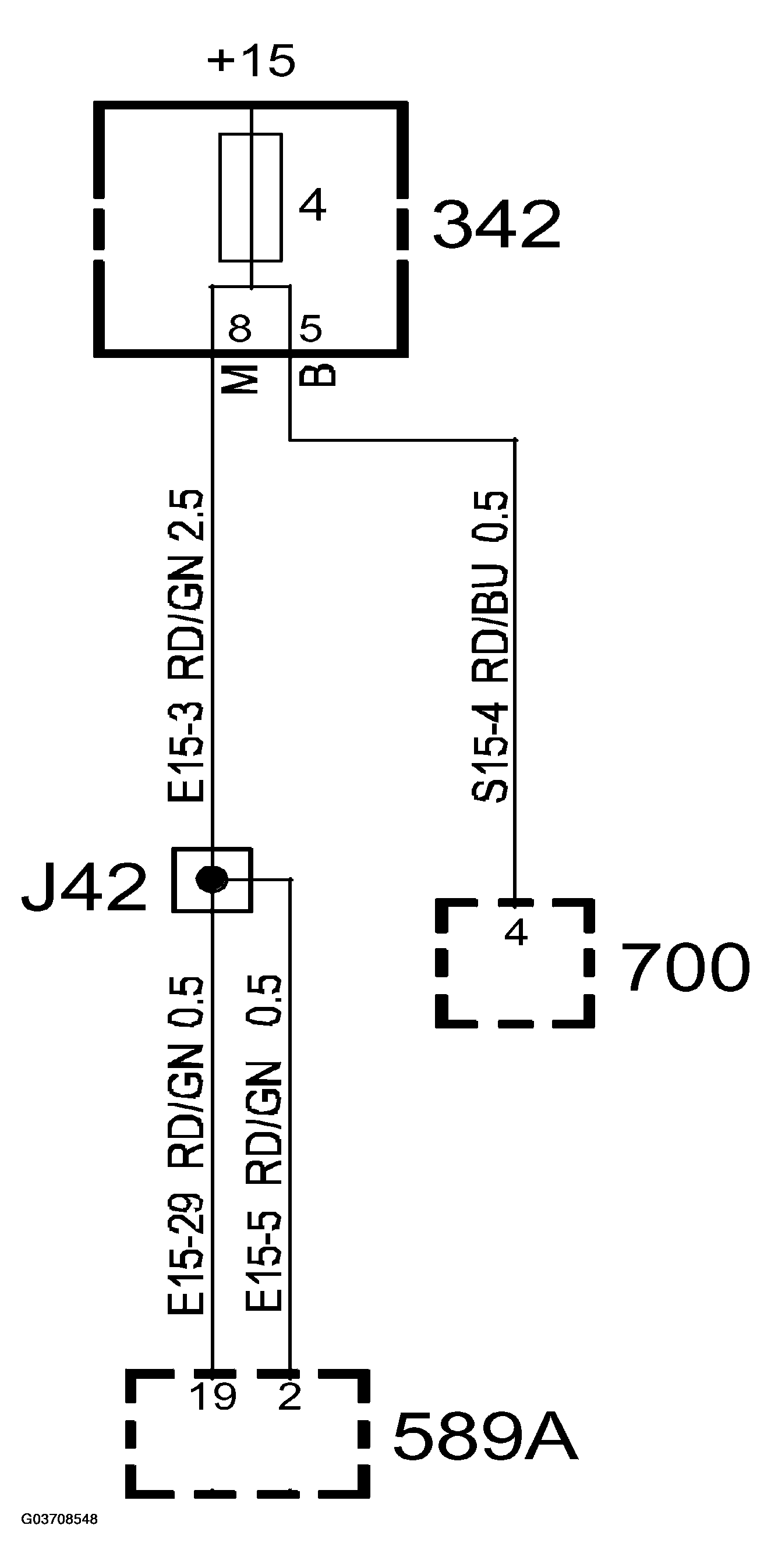

Fig 1: Fuse 4 Electrical Centre Engine Bay 342 (Trionic) Circuit Diagram

G03708548

Courtesy of SAAB-SCANIA OF AMERICA, INC.
