Crimp J39, engine harness, Trionic: Location:

Approx. 60 mm from the branching point to the ignition coil with integrated amplifier, cyl.4, towards the combustion sensor

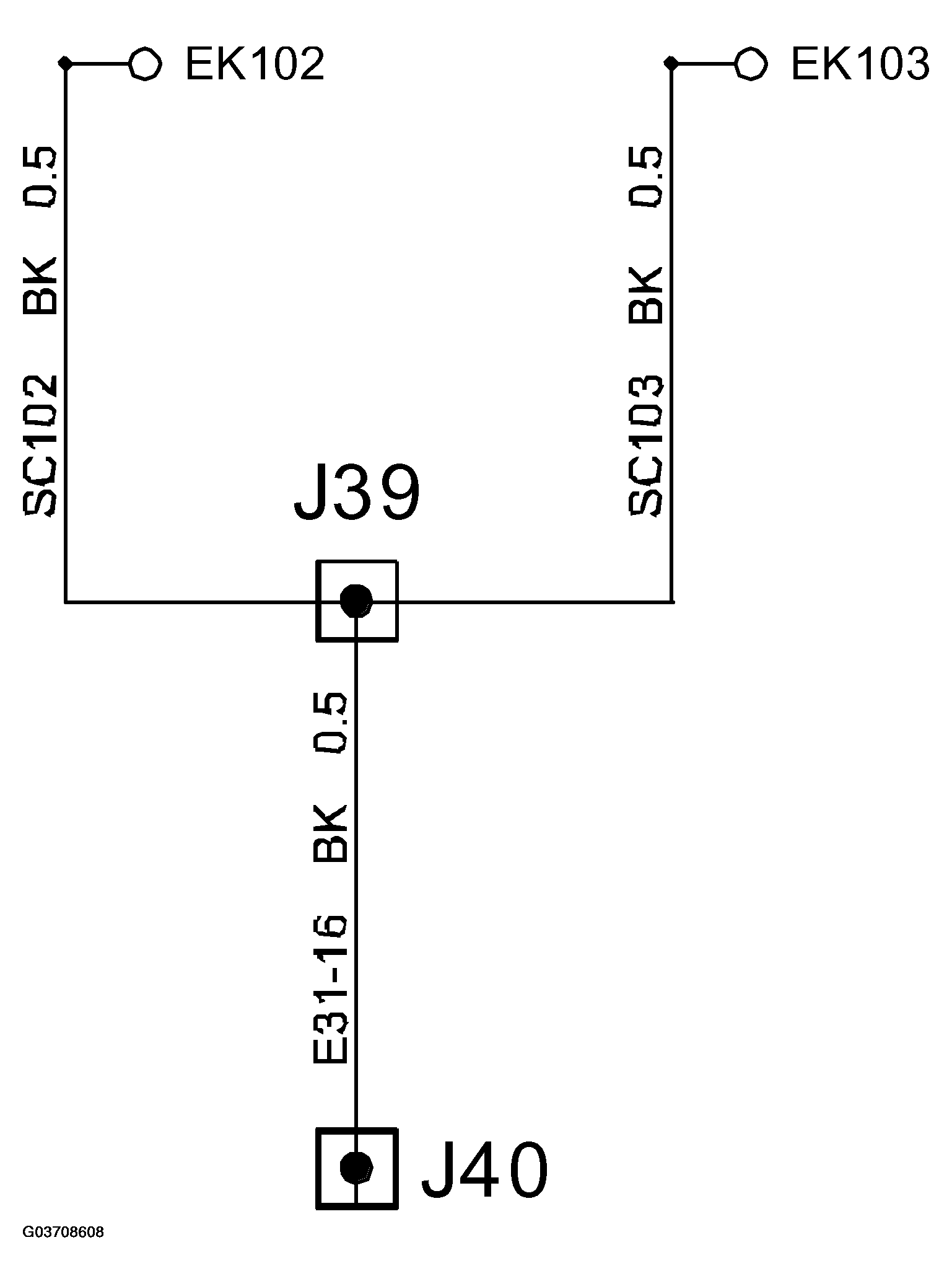

Fig 1: Crimp J39 Engine Harness Trionic Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
