Crimp J38, engine harness, Trionic: Location:

Approx. 160 mm from branching of engine control module switch A towards the ignition coils

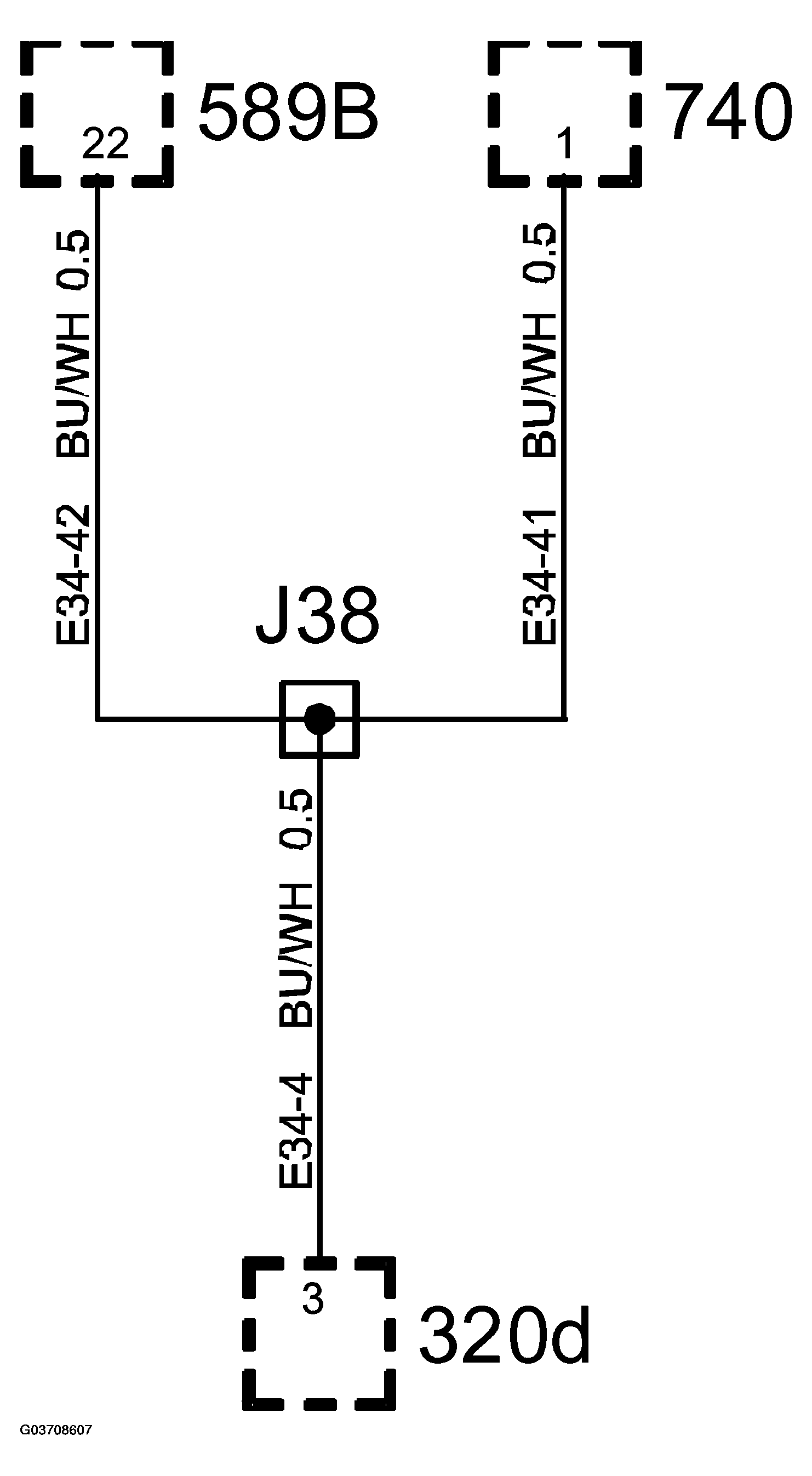

Fig 1: Crimp J38 Engine Harness Trionic Wiring Diagram
G03708607Courtesy of SAAB-SCANIA OF AMERICA, INC.
