Crimp J37, engine harness, Trionic: Location:

Approx. 260 mm from branching of crankshaft sensor towards the engine control module

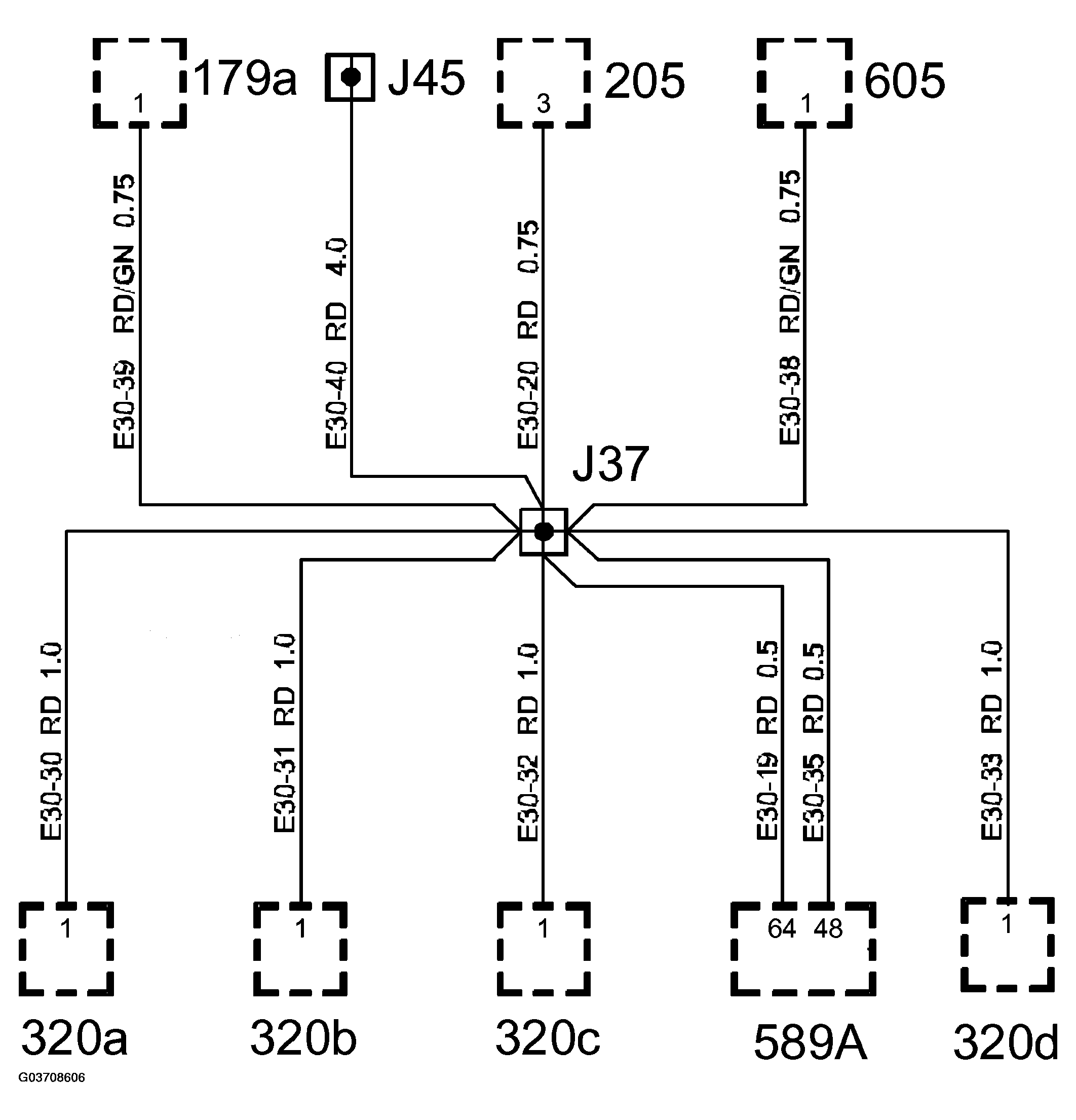

Fig 1: Crimp J37 Engine Harness Trionic Wiring Diagram
G03708606Courtesy of SAAB-SCANIA OF AMERICA, INC.
