To remove

  1. Unplug the sensor connector.

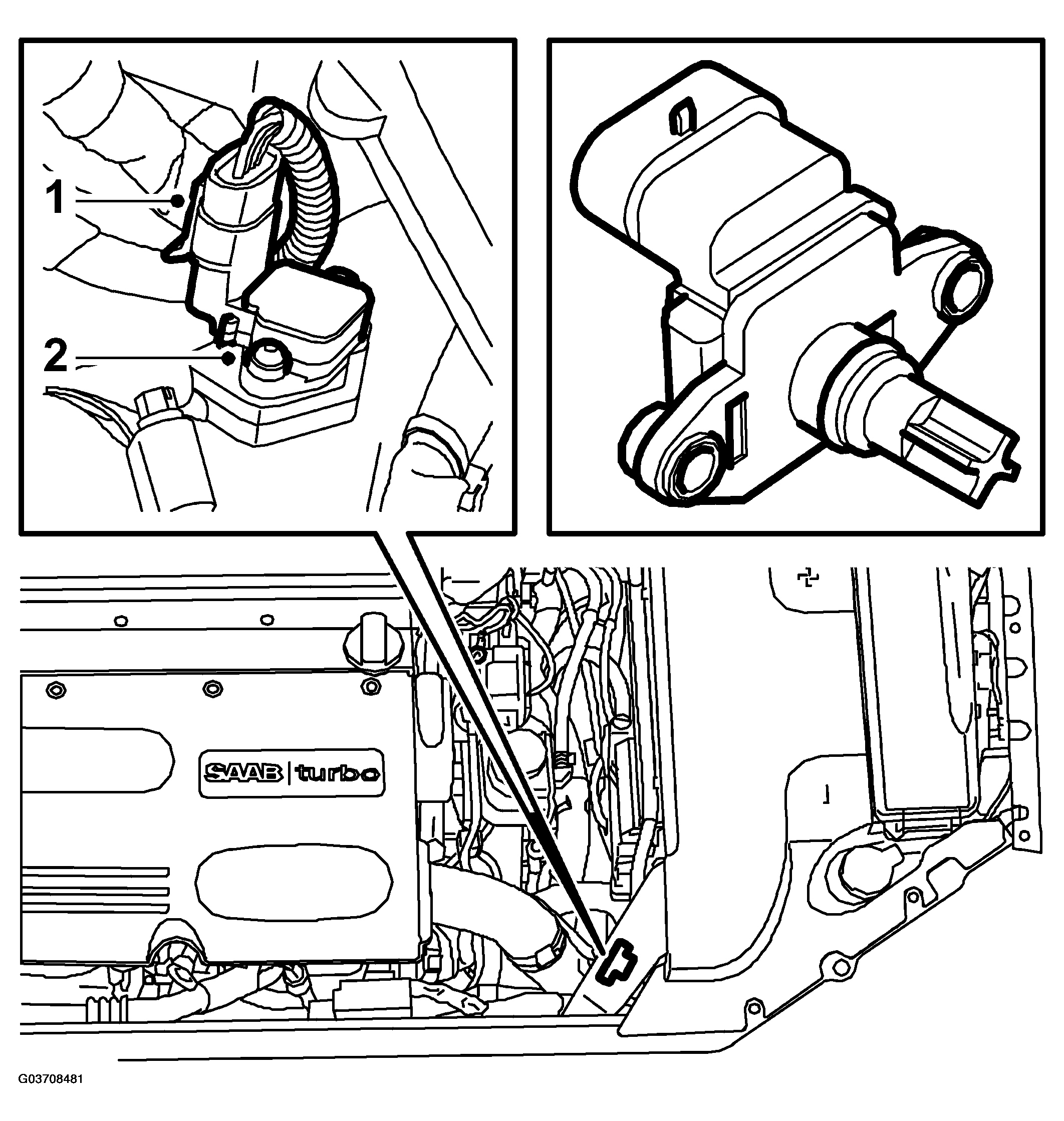

    Fig 1: Illustration For Step 1-2
    G03708481Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the sensor.
