Control module, PSG 16 (595)

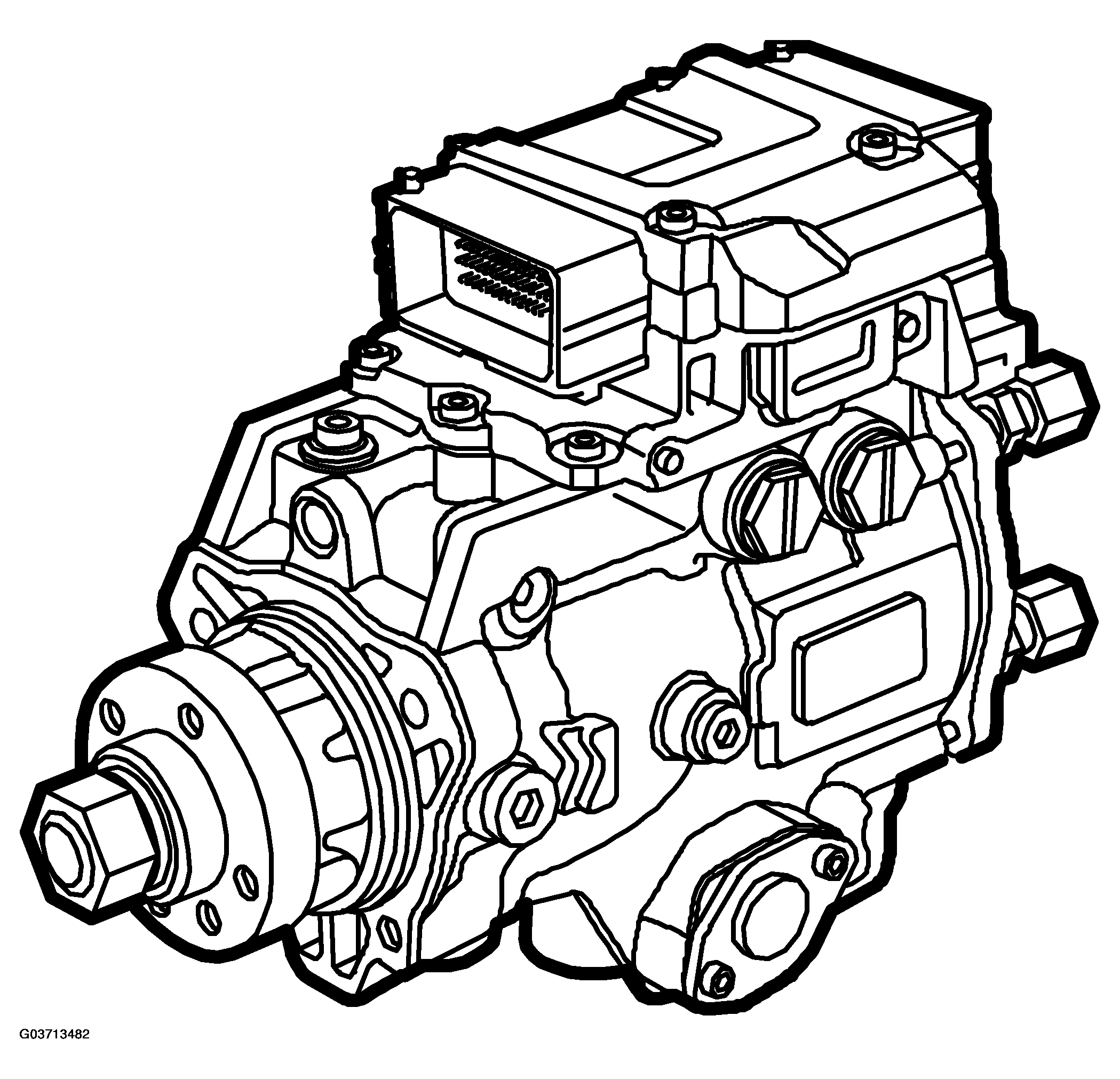

Fig 1: Identifying Control Module (PSG 16)
G03713482Courtesy of SAAB-SCANIA OF AMERICA, INC.
Control Module Specification (PSG 16)

No. of pins 56 on K switch and 56 on M switch
Power supply (+15 circuit) Pin No. 16(K)
P-bus (+) Pin No. 29(K)
P-bus (-) Pin No. 17(K)
