To remove

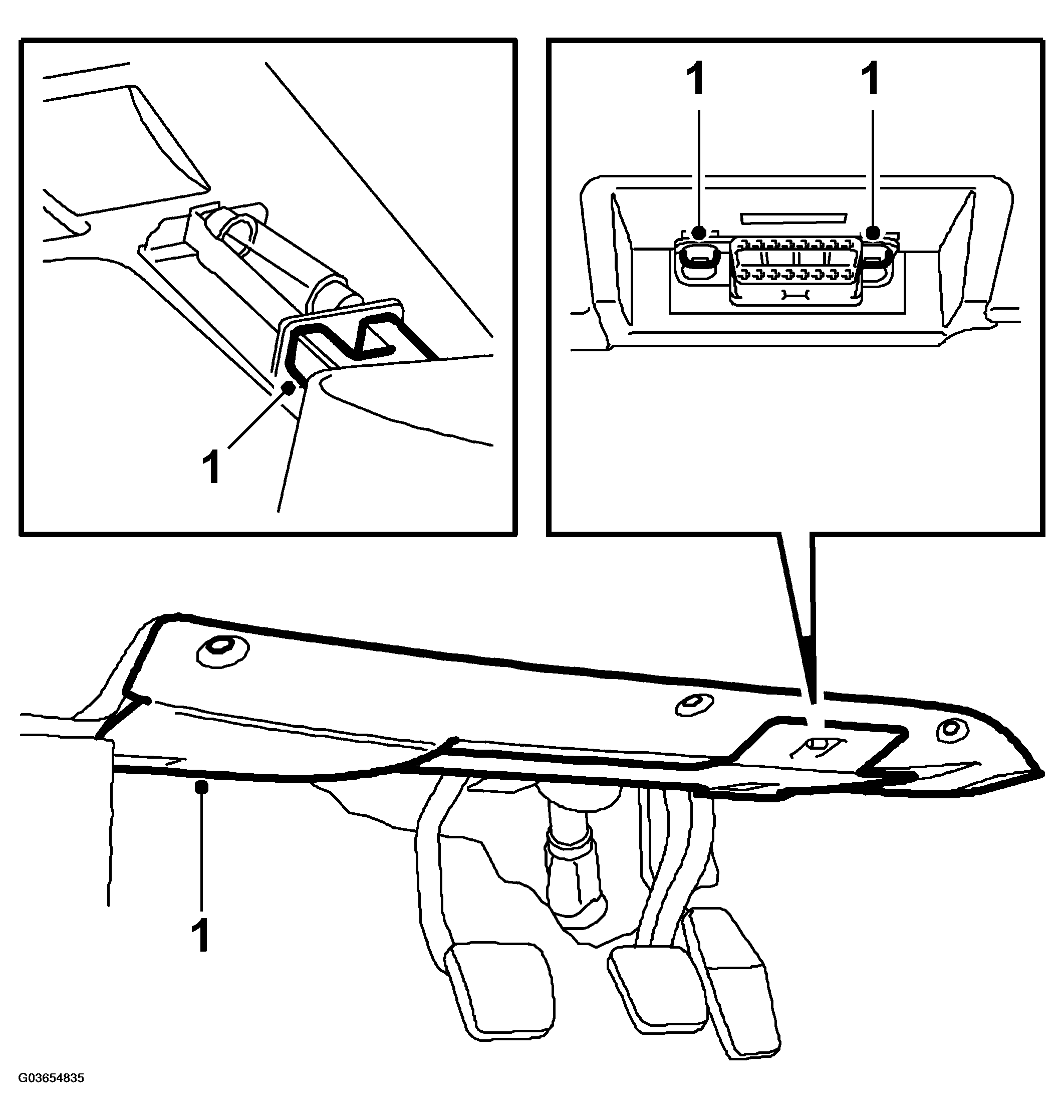

  1. Remove the pedal bracket cover by undoing the 3 screws and the clip. Tilt the cover and carefully pull it out. Pay attention to the cables for the diagnostic tool data link connector and the lighting.
    Fig 1: Illustration For Step 1
    G03654835Courtesy of SAAB-SCANIA OF AMERICA, INC.

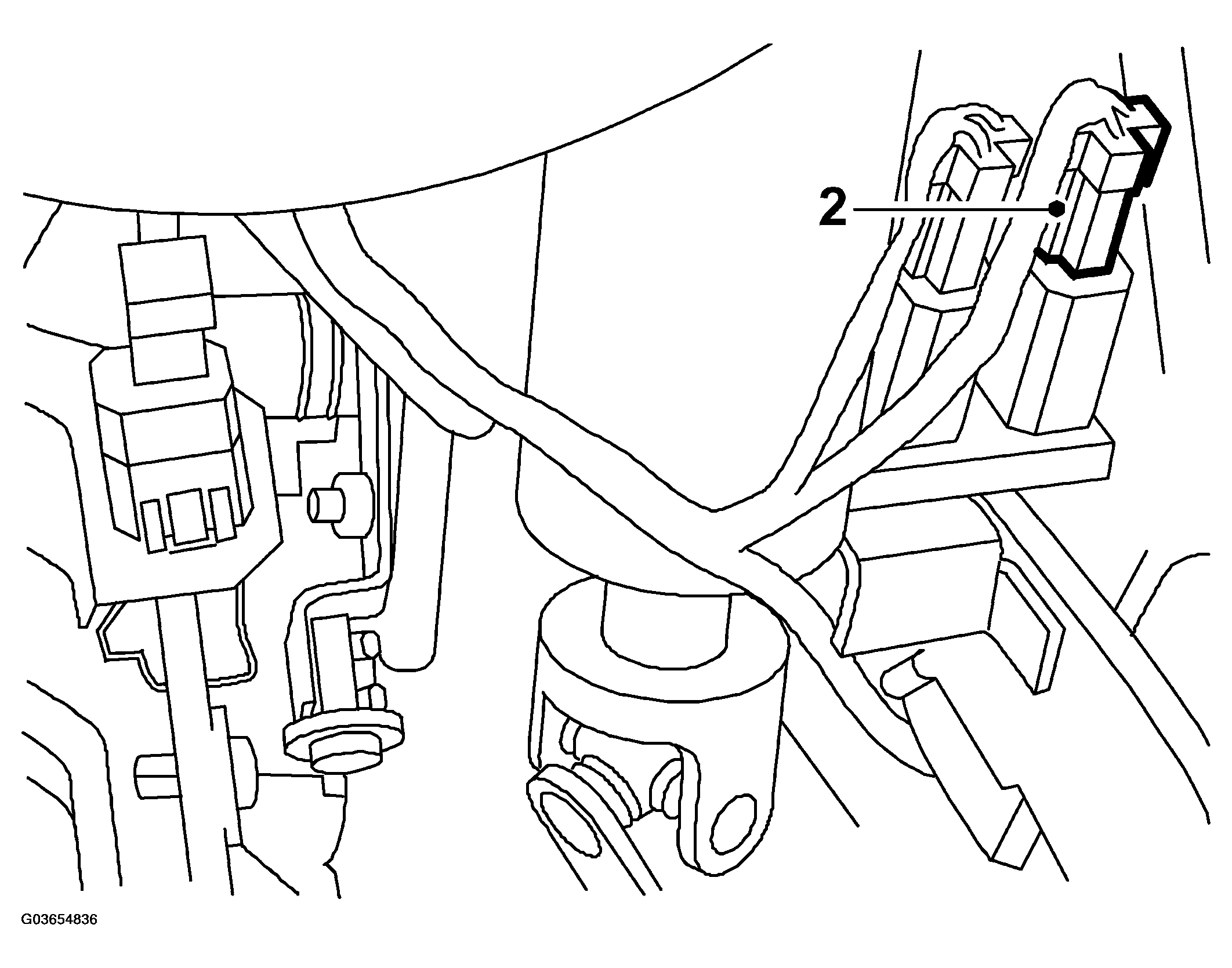

  2. Carefully turn switch 1 90° clockwise and pull it out of the holder.
    Fig 2: Illustration For Step 2
    G03654836Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector
