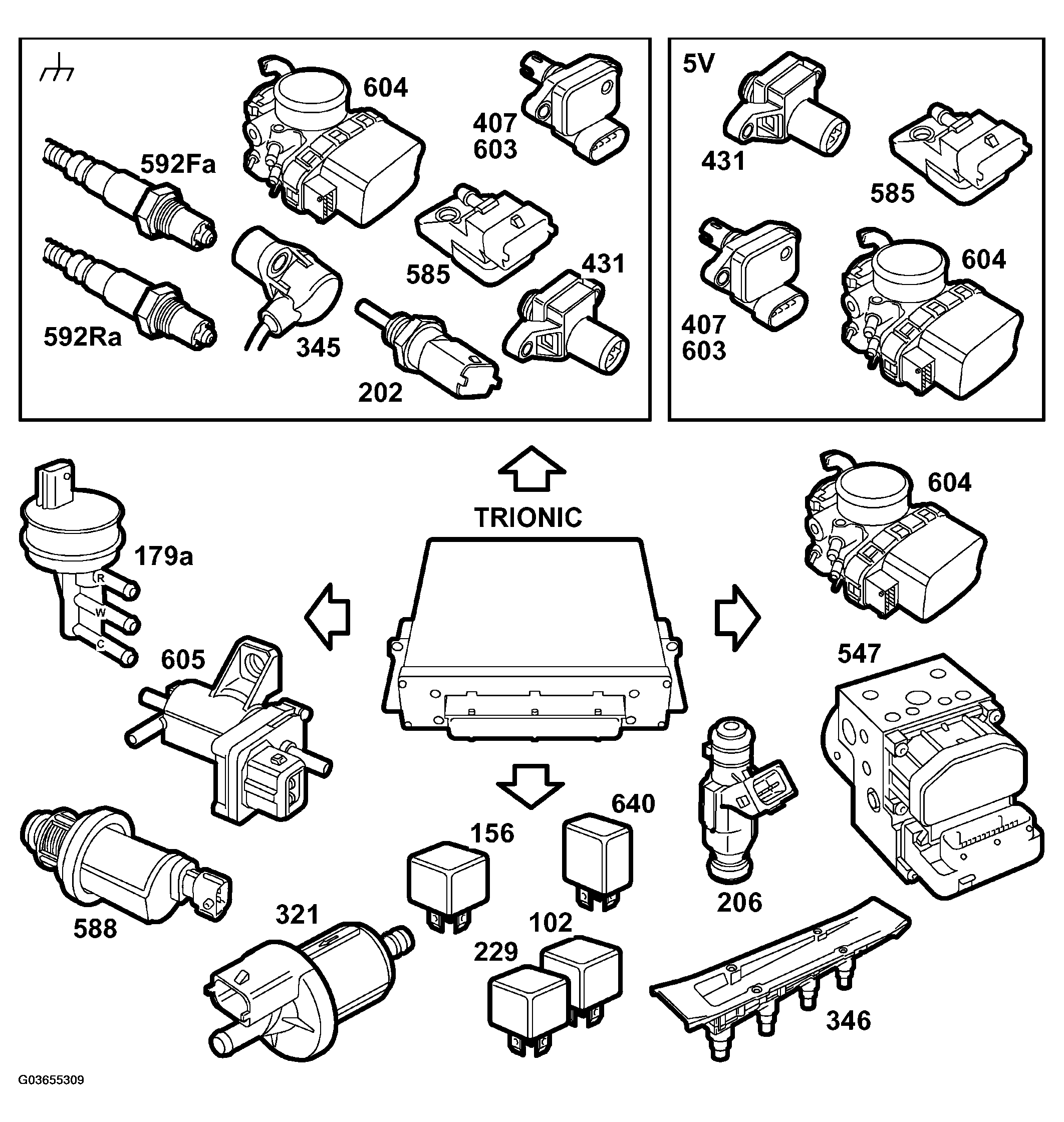

Control module outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Sensor ground, reference ground, see GROUND
- 5V supply to sensor, see 5V SUPPLY
- Main relay and fuel pump relay, see MAIN RELAY /FUEL PUMP RELAY
- A/C relay (156), see A/C relay
- Throttle motor, see THROTTLE CONTROL
- Relay, limp-home solenoid (640), see THROTTLE CONTROL
- Charge air control valve (179a), see TURBO CONTROL
- Control valve, bypass (605), see CONTROL VALVE, BYPASS
- EVAP canister purge valve (321), see PURGING
- EVAP canister shut-off valve (588), see PURGING
- Injectors (206), see INJECTORS
- Ignition discharge module (346), see IGNITION DISCHARGE MODULE
