Home >> Saab >> 2003 >> 9-5 Linear, 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4 CYL. >> Adjustment-Replacement >> Temperature sensor, engine coolant >> To remove

To remove

  1. Carefully loosen the coolant expansion tank cap (to release any pressure) and then screw it back on.

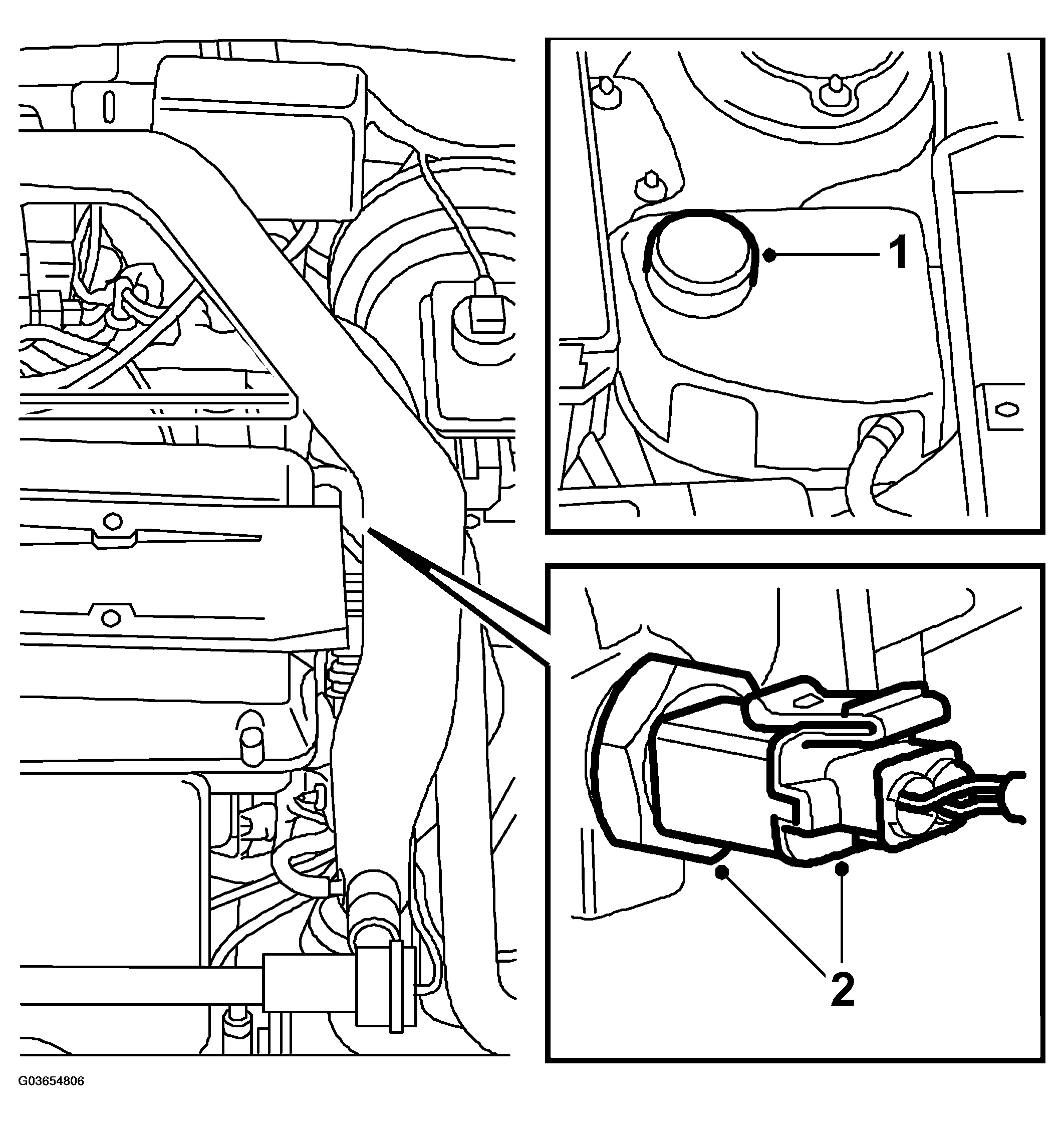

    Fig 1: Illustration For Steps 1-2
    G03654806Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector and remove the sensor using a 19 mm dog-leg spanner.
