Injectors, flow capacity: V6

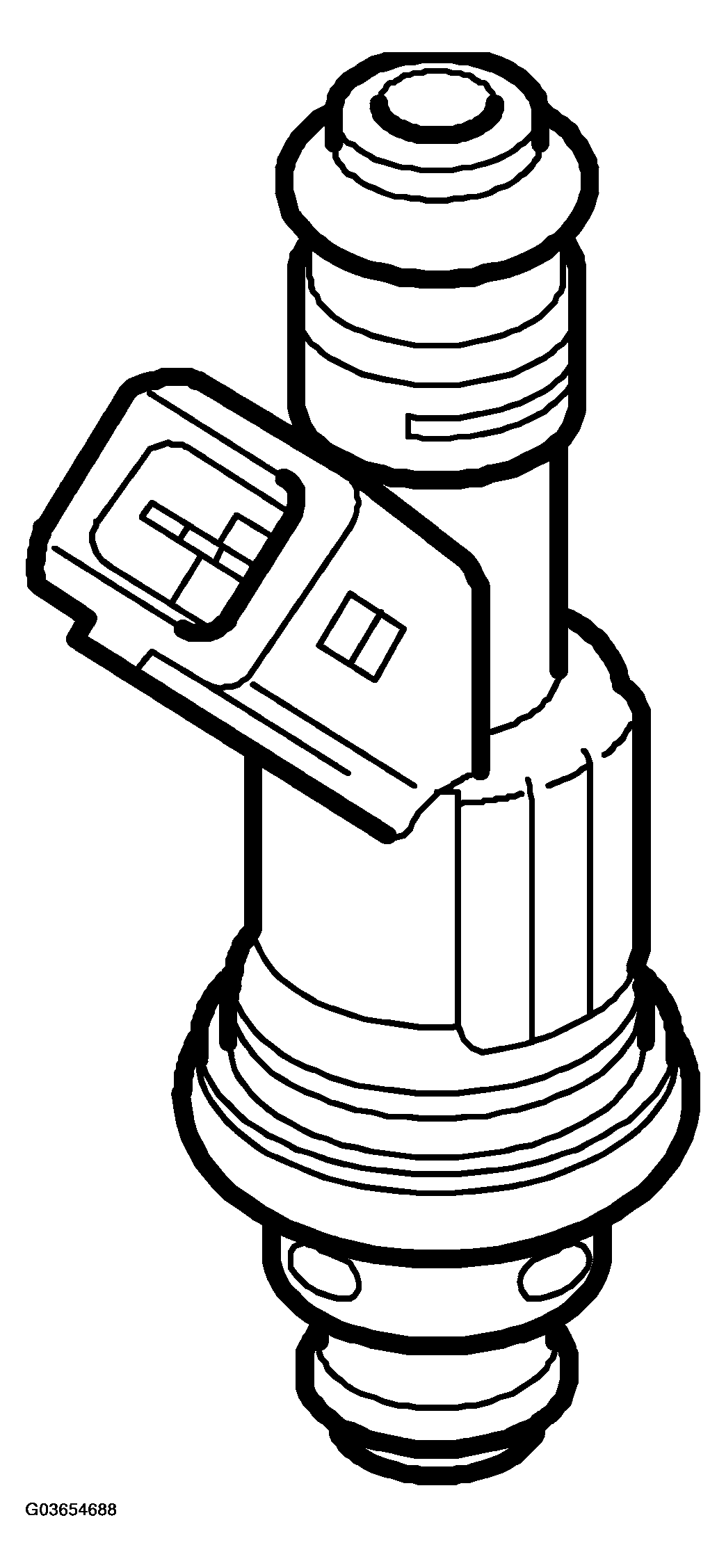

Fig 1: Identifying Injectors, Flow Capacity (V6)
G03654688Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS, FLOW CAPACITY (V6) - TECHNICAL DATA

  B308E
Flow capacity ml/30s 109 +/- 4
Maximum permissible difference between injectors. ml 8
