To fit

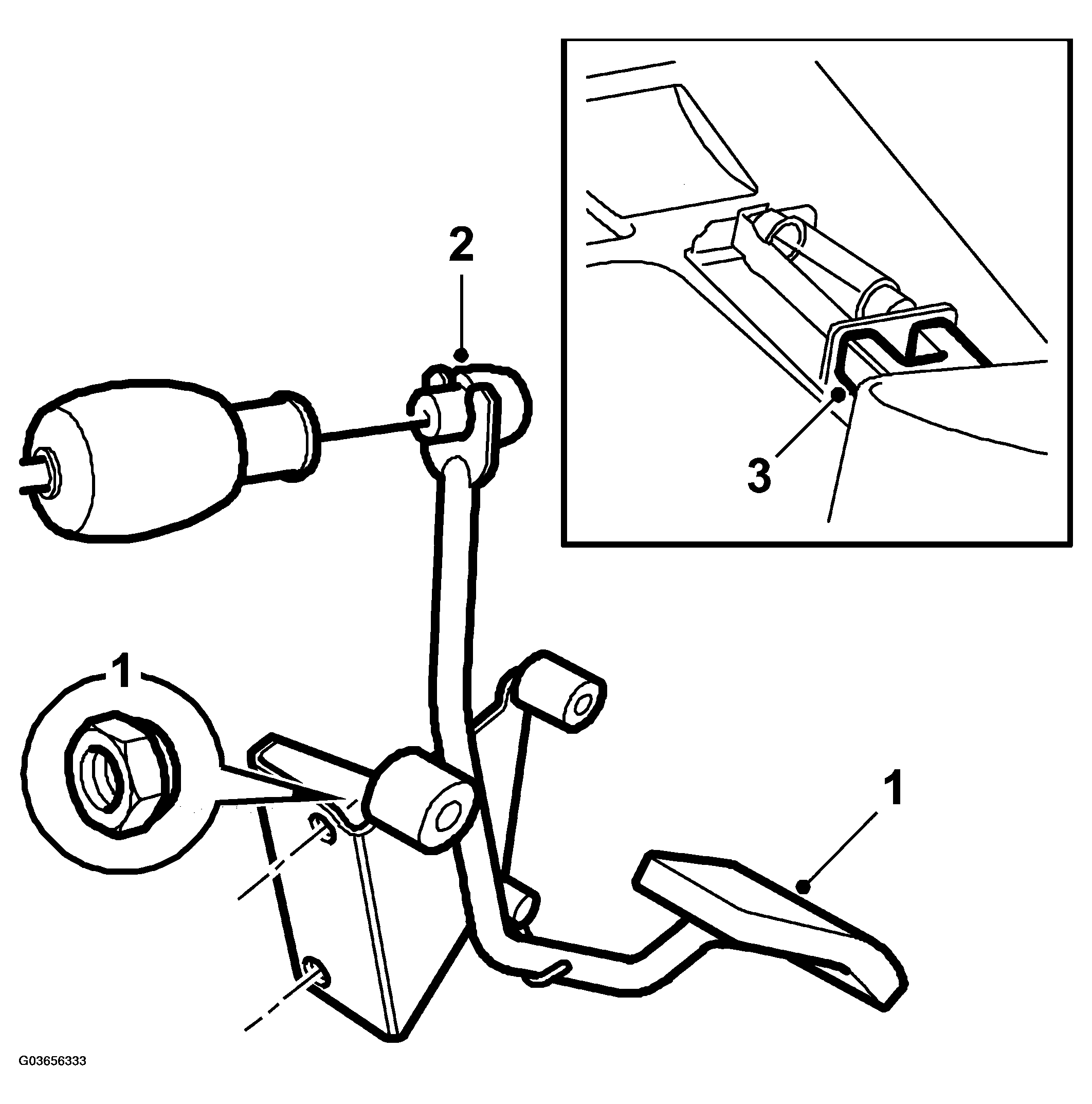

Fig 1: Illustration For Step 1-3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The bush must not be lubricated.

1. Fit the pedal.

   Tightening torque: 24 Nm (17.7 lbf ft)  .

2. Attach the throttle cable to the throttle pedal. Check and adjust the cable as necessary.
3. Plug in the connector for the floor lighting.
4. Lift the lower panel into place.

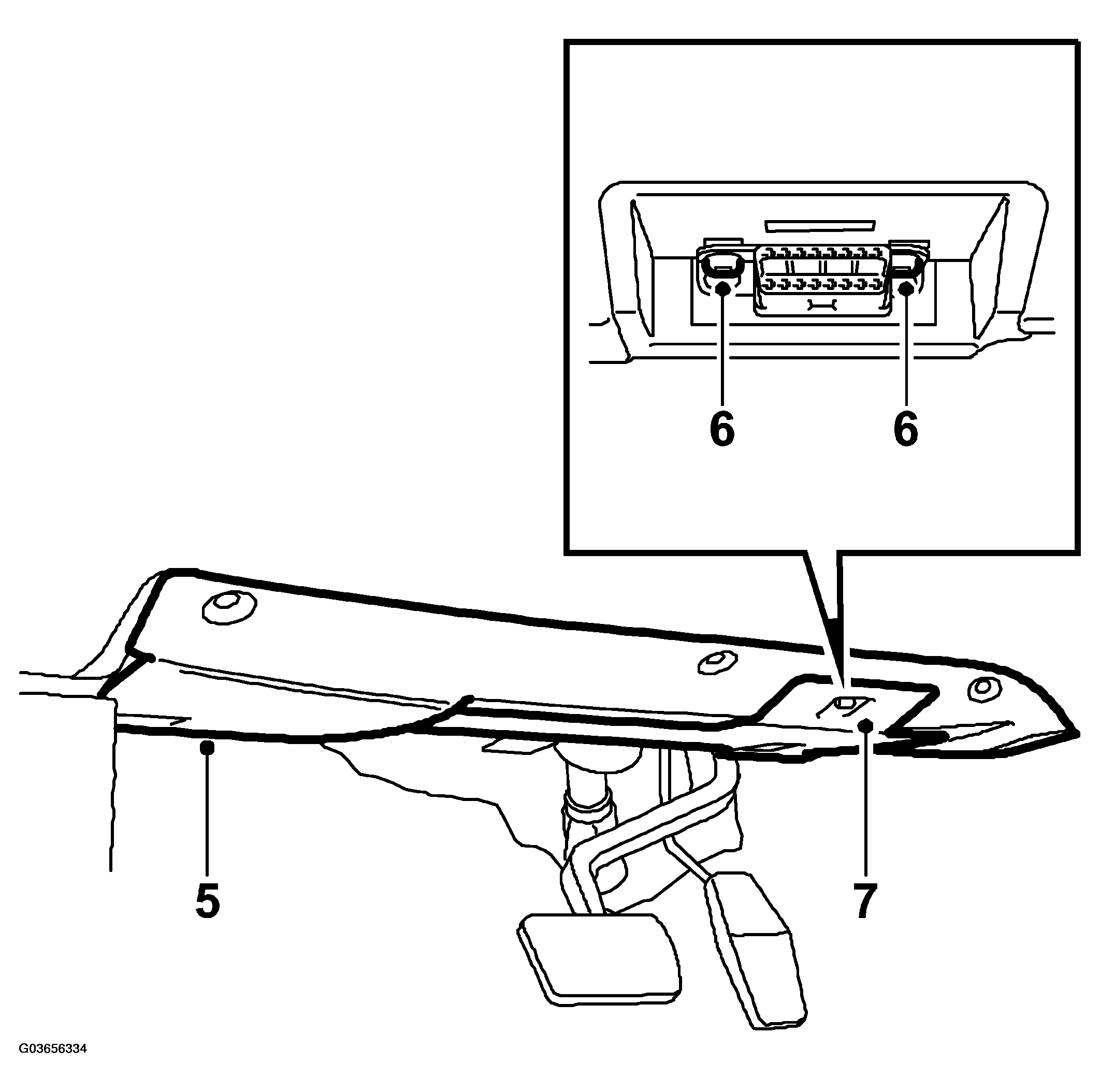

   Fig 2: Illustration For Step 5-7

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Tighten the lower panel screws.
6. Fit the data link connector and tighten its retaining screws.
7. Close the data link connector cover.
