General data

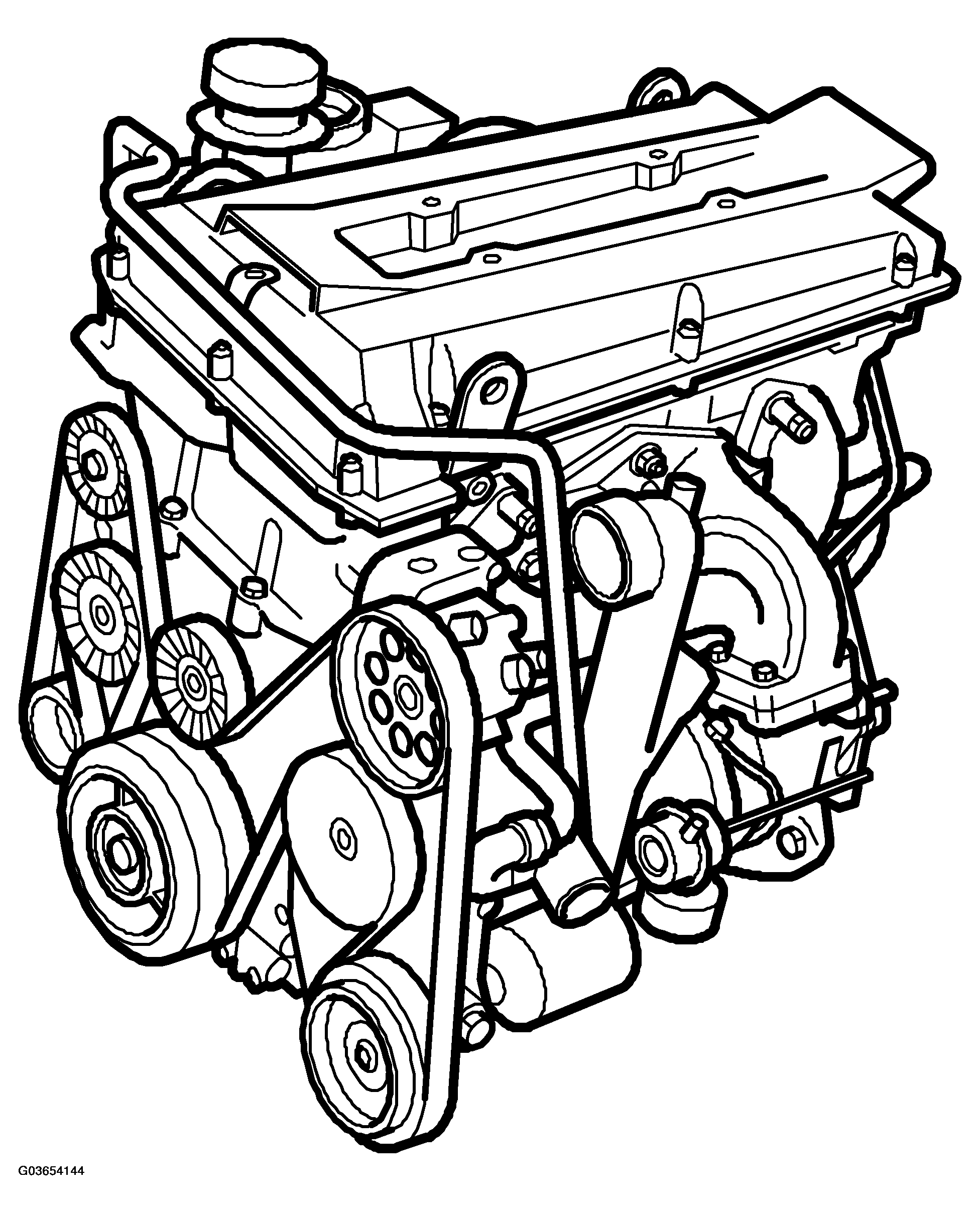

Fig 1: View Of 4-Cylinder Petrol Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

GENERAL DATA

		B205E	B235E/R
Engine type		4-cyl, 4-stroke engine with 4 valves per cylinder, 2 overhead camshafts and 2 balancer shafts.
Cylinder bore	mm	90	90
Stroke	mm	78	90
Swept volume	cm³	1985	2290
Firing order		1-3-4-2	1-3-4-2
Compression ratio		8.8: 1	9.3: 1
Weight	kg (lb)	140 (305) / 156 (340)	150 (330)
