Interior lighting: Notes

The car's interior lighting is switched on and off automatically or manually depending on the setting of the selector switch (1-0-2). The selector has the following functions:

1. 1 - Interior lighting on.
2. 0 - Automatic switching
3. 2 - Interior lighting off.

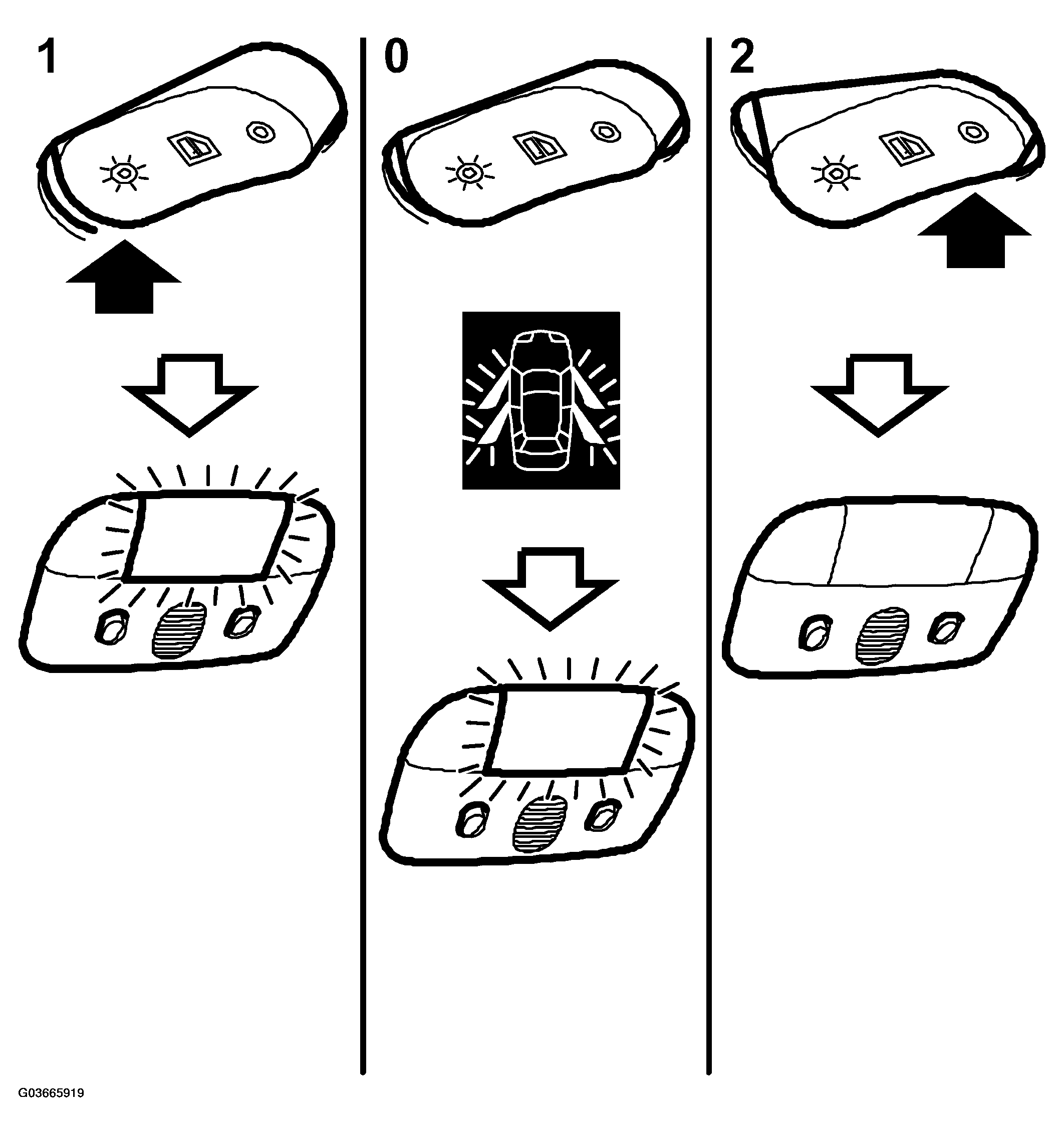

   Fig 1: Interior Lighting Functional Diagram

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

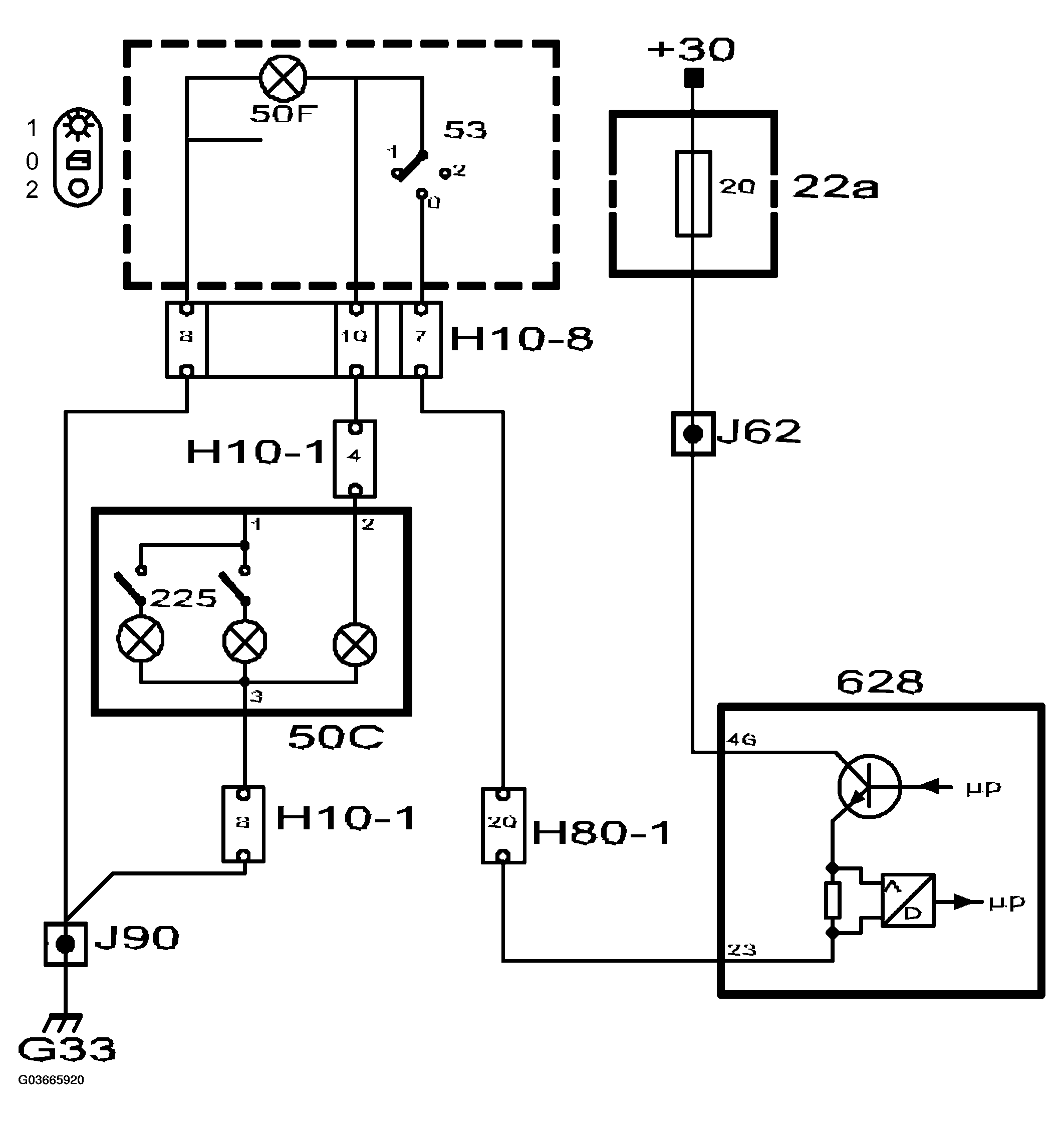

   Fig 2: Interior Lighting Circuit Diagram

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
