TCS/ESP function lamp: Notes

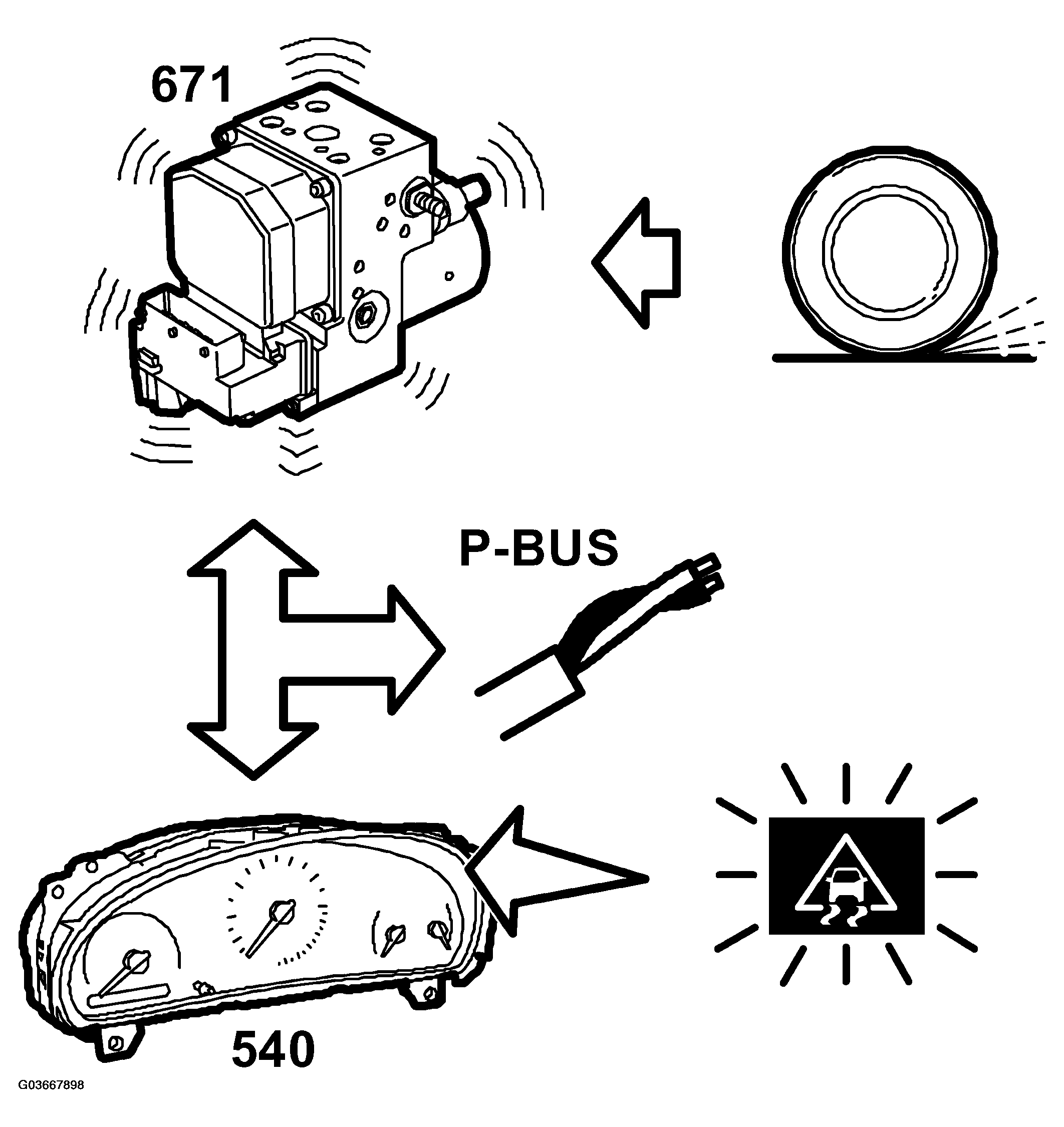

Fig 1: Identifying TCS/ESP Function Lamp
G03667898Courtesy of SAAB-SCANIA OF AMERICA, INC.

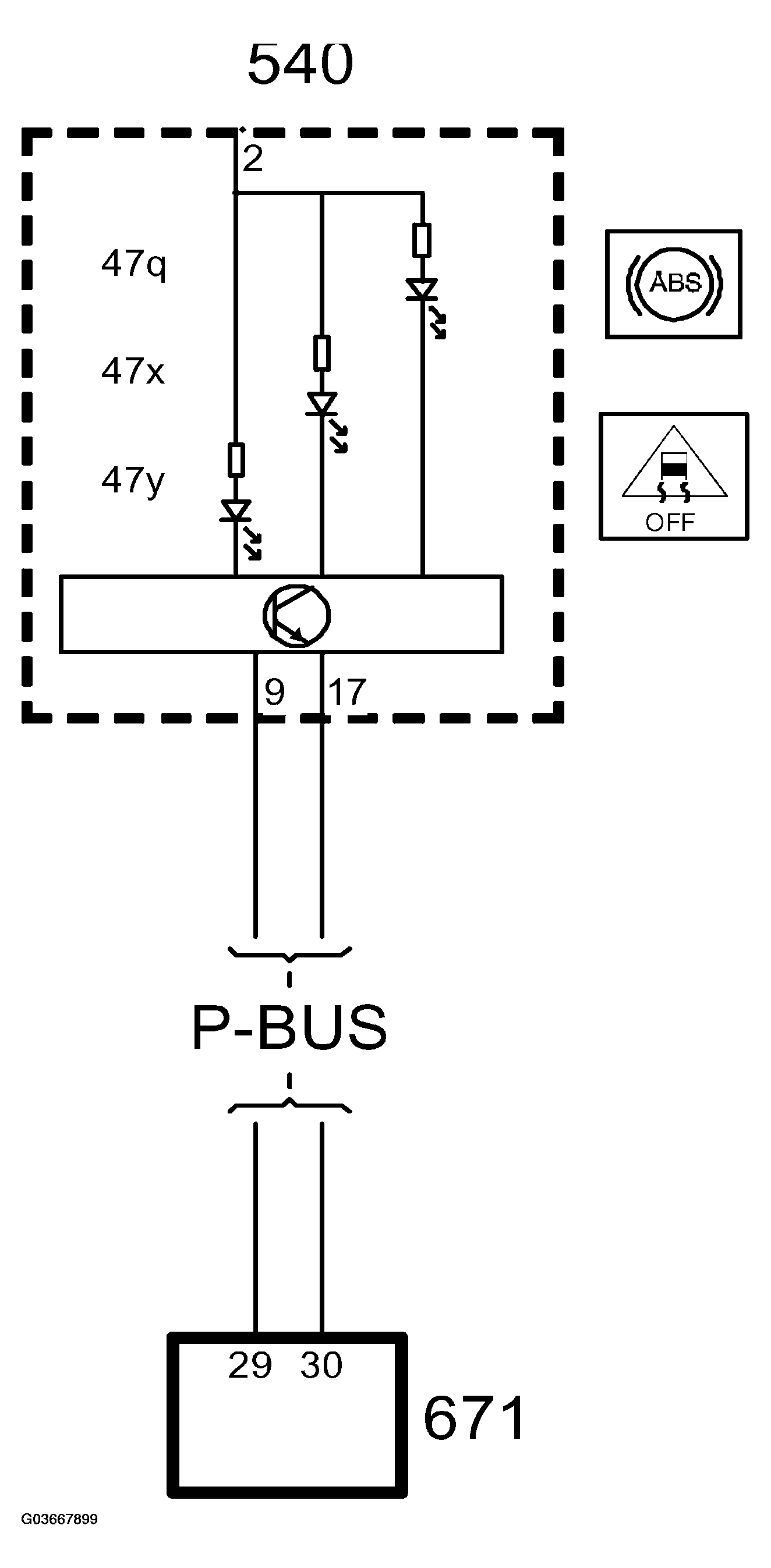

Fig 2: Circuit Diagram
G03667899Courtesy of SAAB-SCANIA OF AMERICA, INC.

The ESP function lamp is located on the left-hand side of the main instrument unit (in the tachometer). The lamp comes on when the ESP or TCS operate.
