Main components

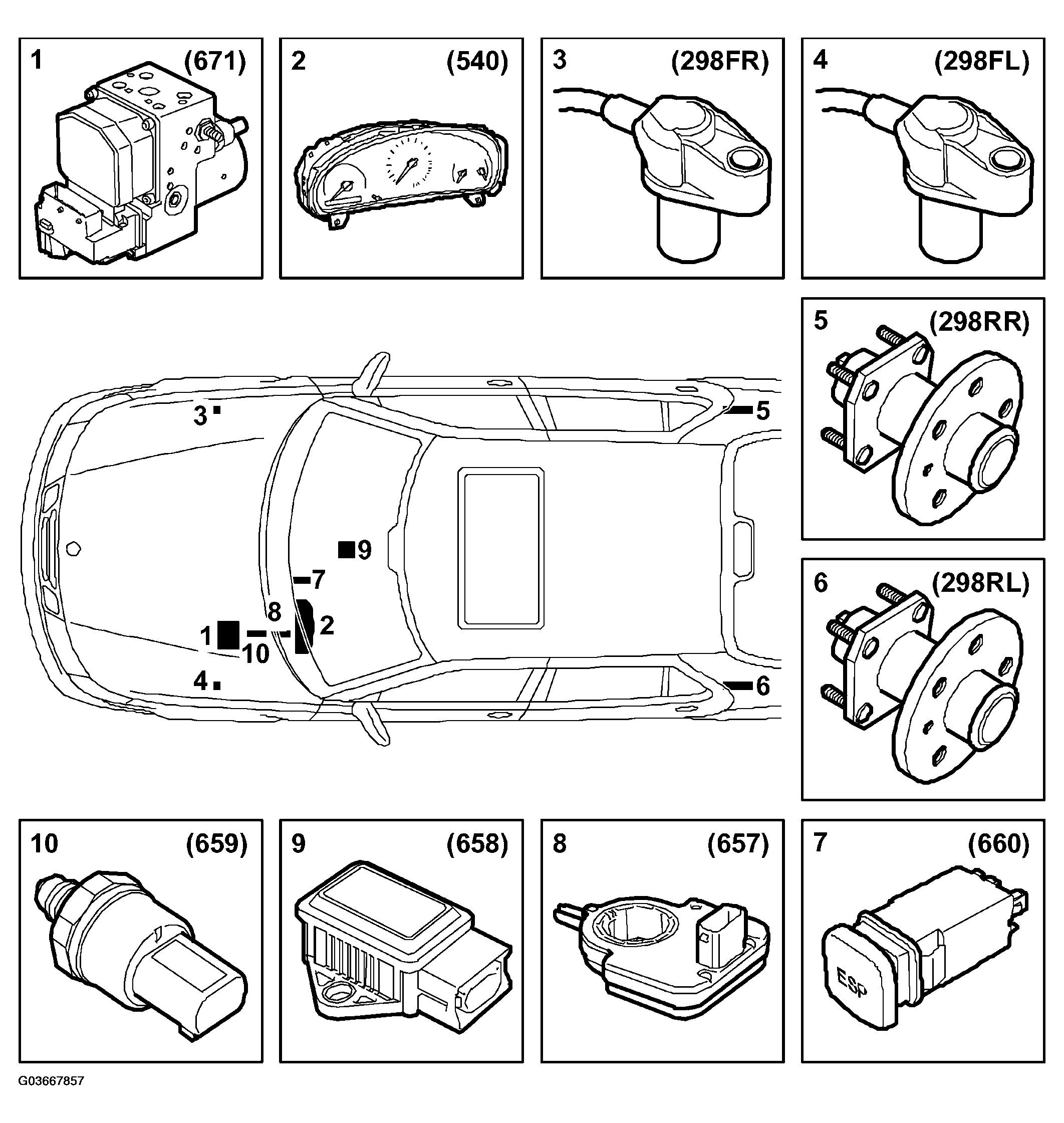

Fig 1: Identifying ABS Main Components
G03667857Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. HYDRAULIC UNIT  with CONTROL MODULE  , valve housing and return pump (671)
  2. ABS warning lamp, TCS OFF/ESP OFF indicator lamp  , TCS/ESP function lamp  (540)
  3. WHEEL SENSOR, FRONT RIGHT  (298FR)
  4. WHEEL SENSOR, FRONT LEFT  (298FL)
  5. Wheel sensor, rear right (298RR)
  6. Wheel sensor, rear left (298RL)
  7. ESP ON/OFF switch  (660)
  8. STEERING WHEEL ANGLE SENSOR  (657)
  9. YAW RATE SENSOR, LATERAL ACCELERATION SENSOR (658)
  10. BRAKE PRESSURE SENSOR  (659)
