Control module inputs

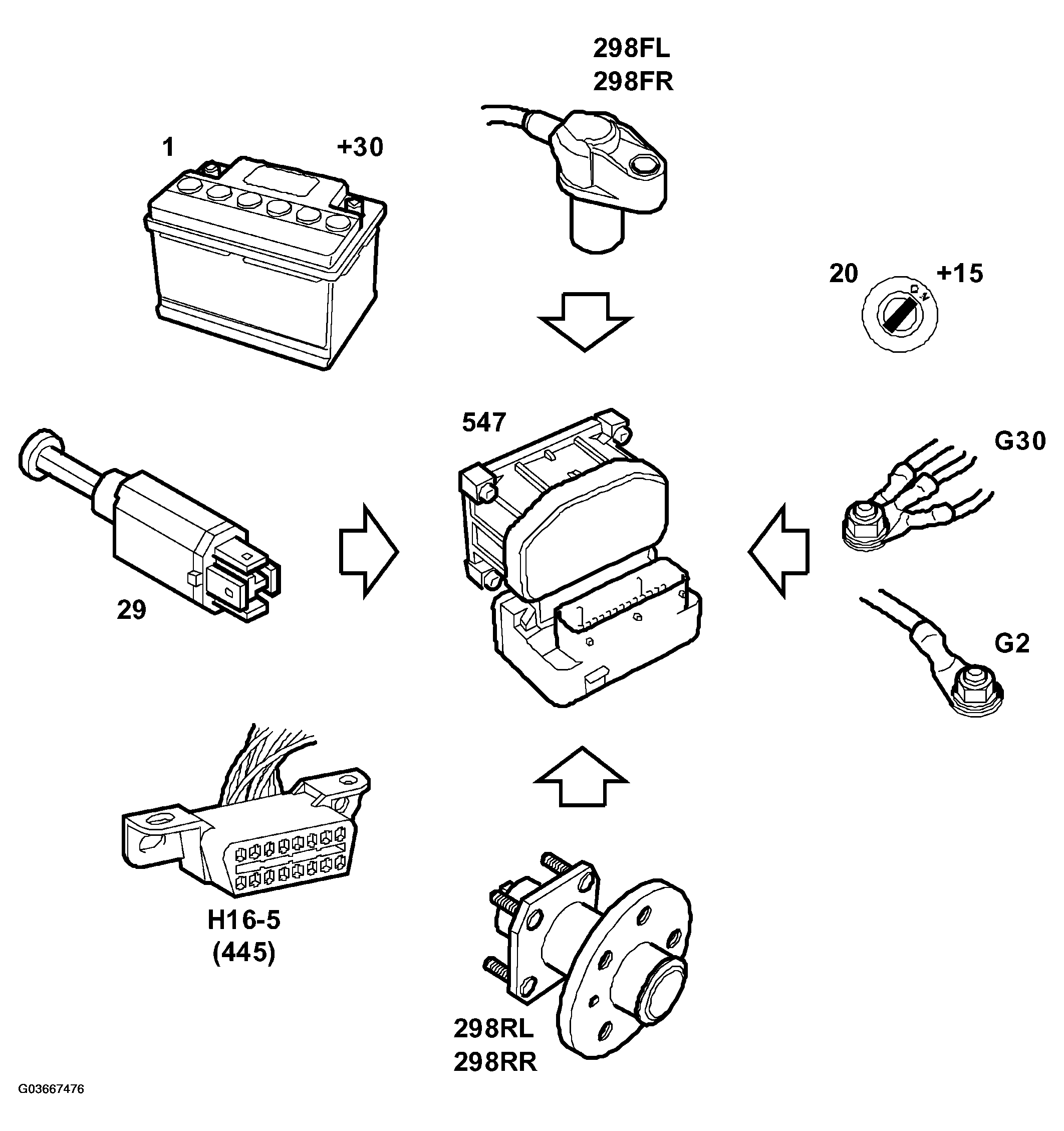

Fig 1: Identifying Control Module Inputs

G03667476

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Voltage (+30 circuit) (1). See POWER SUPPLY .
Voltage (+15 circuit) (20). See POWER SUPPLY .
Ground (G30, G2). See CONTROL MODULE GROUND .
Front-wheel sensors (298). See FRONT-WHEEL SENSORS .
Rear-wheel sensors (298). See REAR-WHEEL SENSORS .
Brake-light switch (29). See BRAKE-LIGHT SWITCH .
Data link (445). See DATA LINK .
