Switch unit: Notes

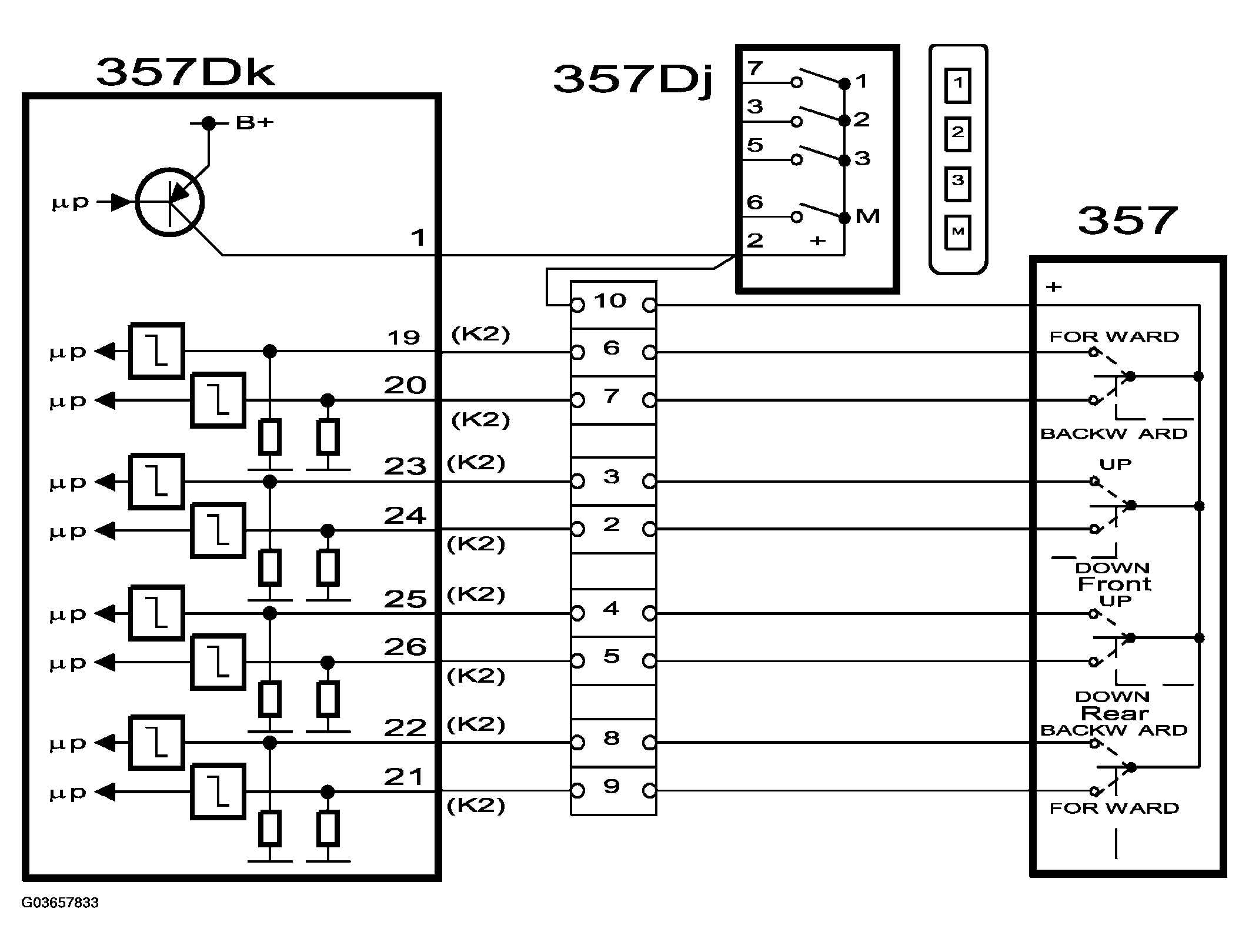

Fig 1: Identifying Switch Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

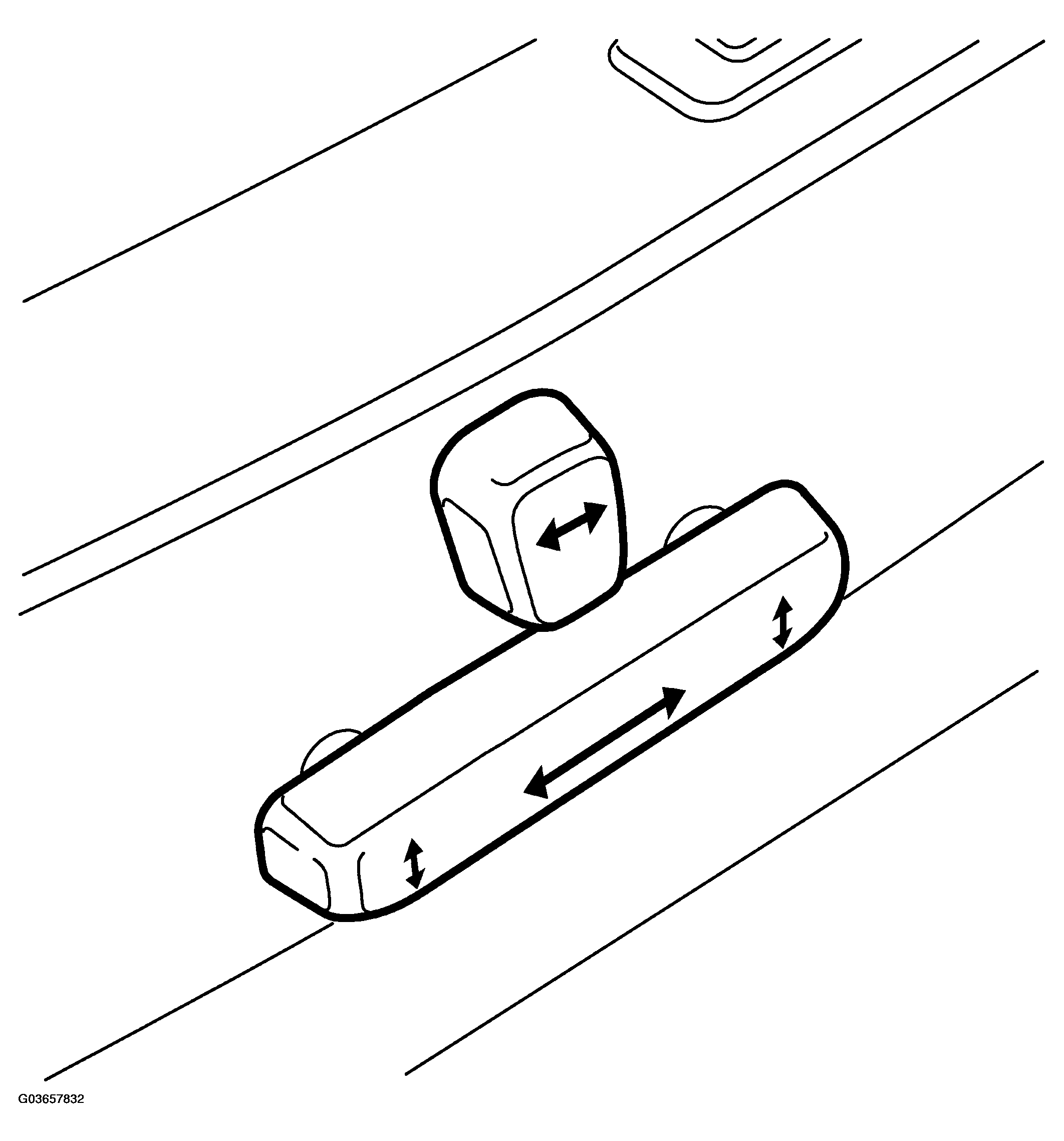

Fig 2: Switch Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The switch unit is located on the outside of the driver's seat. It comprises a number of switches that are supplied with B+ from the control module. When a switch is closed, the B+ supply is returned to the respective switch input on the control module. The voltage then changes from 0V to B+.

When a valid switch setting or memory button is detected, the control module performs the corresponding function, i.e. controls the motors for manual adjustment and memory setting or stores the seat settings when programming.
