Saab
>>
2003
>>
9-5 Linear, 4D Sedan, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Technical Description
>>
PSM Control module
>>
Power supply
>>
Notes
Power supply: Notes

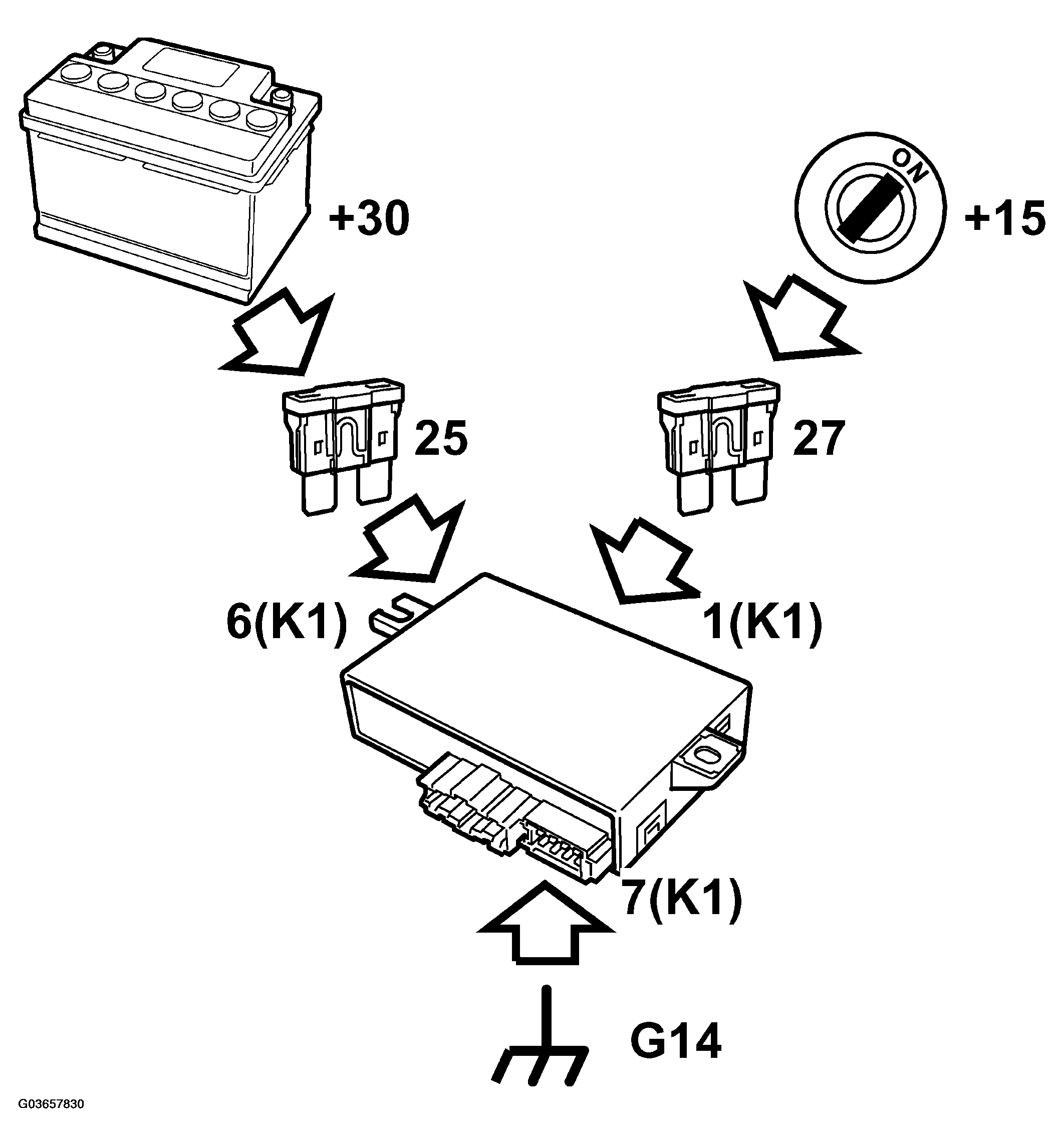

Fig 1: Identifying Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.

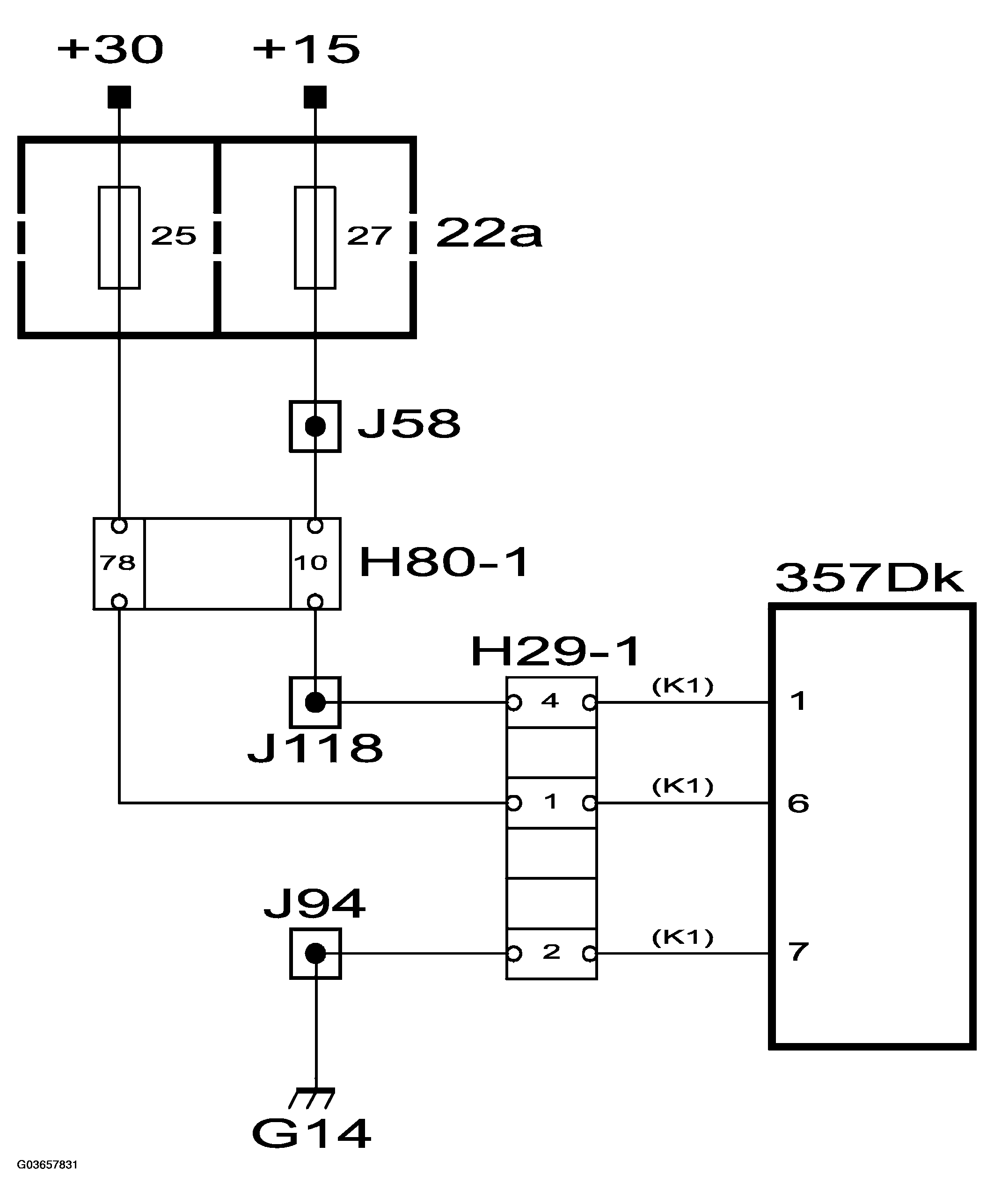

Fig 2: Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
